Question, just installed my new Porsche 19.2kw home charger. My car is at 74% when I pulled it in
When charging I have the setting max to 80a on a 100a breaker.
I am only getting 10.4 kw into the car. Should it not be 19.2?

Porsche Taycan 19.2 Charger installed image
Sponsored



daveo4EV

Well-Known Member
First Name
David
Joined
Jan 28, 2019
Threads
160
Messages
5,810
Reaction score
8,647
Location
Santa Cruz
Vehicles
Cayenne Hybrid, 911(s) GT3/Convertable
Country flag
standard Taycan is 11 kW (48 amps) - 19.2 kW is a $1680 factory option or a $5000 dealer service retrofit

based on the screen it appears your vehicle does not have the optional 19.2 kW option.



OP
OP
JRNJTAYCAN

JRNJTAYCAN

Well-Known Member
First Name
Joe
Joined
Jan 5, 2022
Threads
42
Messages
387
Reaction score
240
Location
NJ
Vehicles
22 Taycan, 22 Q5, 95 F150 Flair Side
Country flag
standard Taycan is 11 kW (48 amps) - 19.2 kW is a $1680 factory option or a $5000 dealer service retrofit

based on the screen it appears your vehicle does not have the optional 19.2 kW option.
Crap! How can I tell what my car has? I can’t find my spec sheet right now.


daveo4EV

Well-Known Member
First Name
David
Joined
Jan 28, 2019
Threads
160
Messages
5,810
Reaction score
8,647
Location
Santa Cruz
Vehicles
Cayenne Hybrid, 911(s) GT3/Convertable
Country flag
Crap! How can I tell what my car has? I can’t find my spec sheet right now.

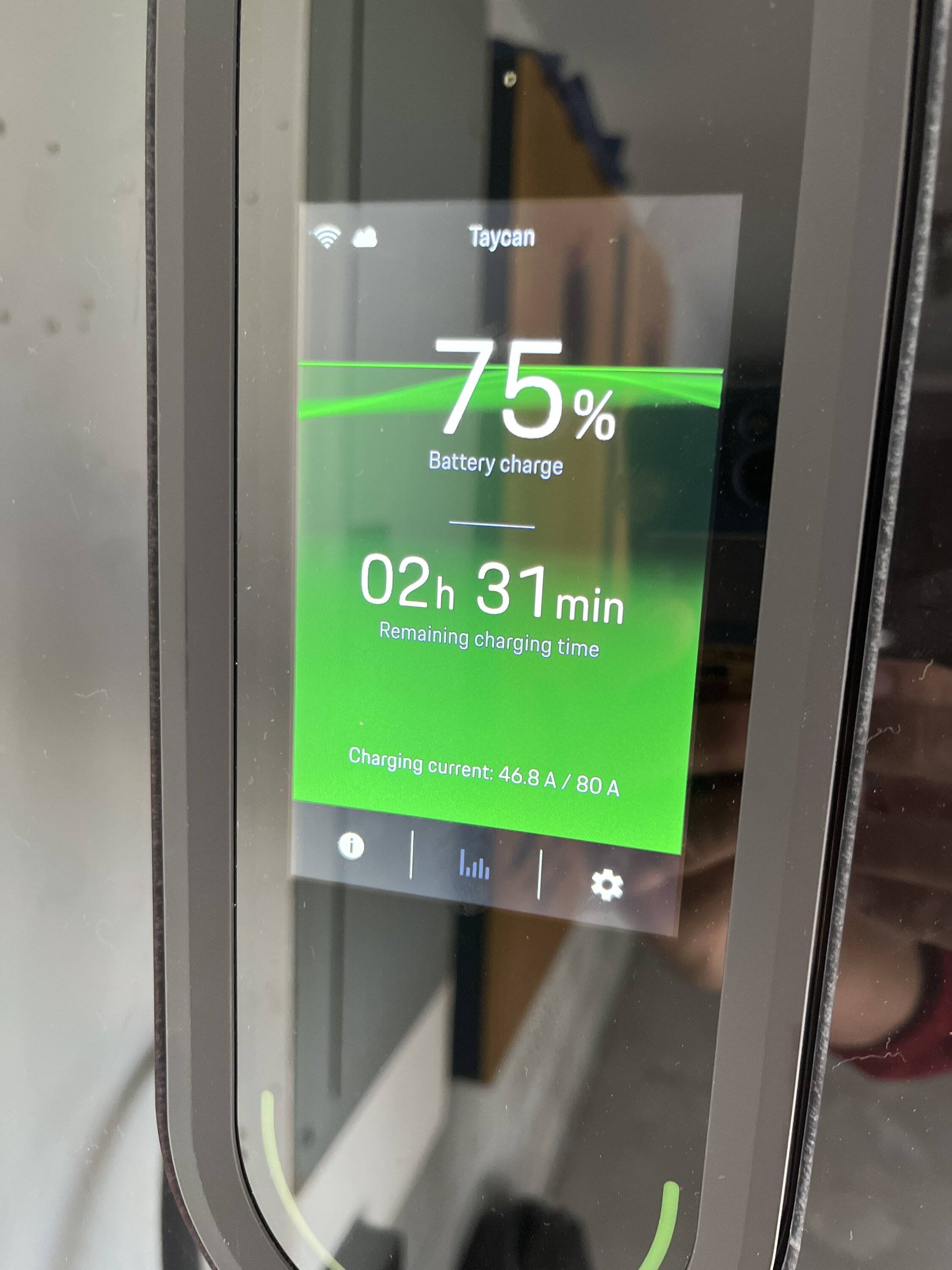

your car is behaving exactly inline wiht expectations for the "standard" included onboard charger - your PWCC shows 46.8 amps - which is just shy of 48 amps (expected) for 11 kW "raw" charge rate.

the PWCC will charge other EV's at a full 80 amps if those EV's have 80 amp (19.2 kW) support.

the install is a one and done thing and good for future EV charging - you are future proof.



OP
OP
JRNJTAYCAN

JRNJTAYCAN

Well-Known Member
First Name
Joe
Joined
Jan 5, 2022
Threads
42
Messages
387
Reaction score
240
Location
NJ
Vehicles
22 Taycan, 22 Q5, 95 F150 Flair Side
Country flag
Thank you for everyone.


vroomer

Well-Known Member
Joined
Sep 27, 2022
Threads
23
Messages
128
Reaction score
80
Location
SF Bay Area
Vehicles
Taycan GTS, MB GLS 550
Country flag
@JRNJTAYCAN

May I ask if you flush mounted with wiring from behind or used surface conduit?
If you flush mounted, how did the electrician interface the in-wall conduit to the unit?
