3 Phase source cable for Porsche Mobile Charger

[Neptune]

I found the 3 phase source cable for the Prosche Mobile Charger.
Took me a while as nobody understood what I was asking.
Part number is: P9588971678D - B35F charge cable In
It costs £86.22 in VAT

Sponsored



[qwick69]

I found the 3 phase source cable for the Prosche Mobile Charger.
Took me a while as nobody understood what I was asking.
Part number is: P9588971678D - B35F charge cable In
It costs £86.22 in VAT

Thats what came with my car as standard when I picked it up. It was no good to me, the one I wanted was the standard lead that connect to the public chargers. I could only use the normal three pin house plug, which meant it took 12 hrs to charge !



[Neptune]

Thats what came with my car as standard when I picked it up. It was no good to me, the one I wanted was the standard lead that connect to the public chargers. I could only use the normal three pin house plug, which meant it took 12 hrs to charge !

Mine came with the blue socket which is single phase 32 amps, the red one is 3 phase 32 amps.



[Tazer]

Mine came with the blue socket which is single phase 32 amps, the red one is 3 phase 32 amps.

Can you share the part number? I was given a 16amp lead but I need the 32 Commado socket style



[Neptune]

Can you share the part number? I was given a 16amp lead but I need the 32 Commado socket style

I listed Porsches part number on my original post.

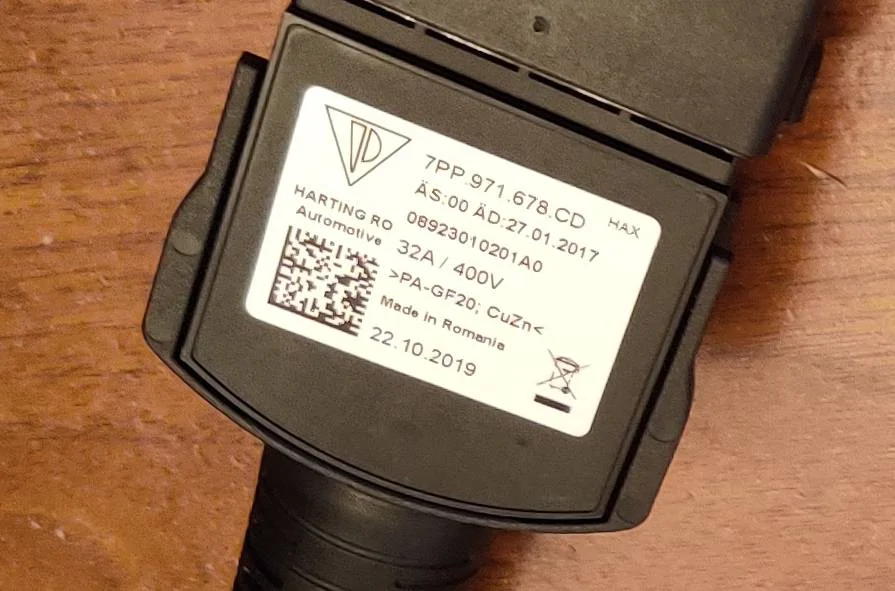

This is the part number on the cable itself, does not appear to be made by porsche or have a porsche part number on it.

I did purchase this directly from the Porsche parts department.



[tigerbalm]

Harting make the official Porsche public charging cable too.



[Toro69]

Thats what came with my car as standard when I picked it up. It was no good to me, the one I wanted was the standard lead that connect to the public chargers. I could only use the normal three pin house plug, which meant it took 12 hrs to charge !

I have the blue commando plug if you want to swap for the red commando plug



[oalsaker]

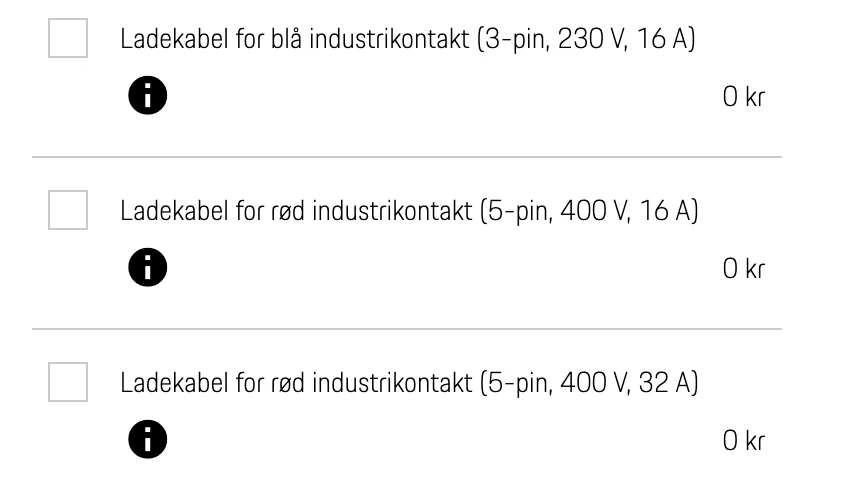

According to the Norwegian configurator, there are actually three of these cables.

One blue, two red (16 and 32 A), unfortunately no parts number given.



[Neptune]

According to the Norwegian configurator, there are actually three of these cables.

One blue, two red (16 and 32 A), unfortunately no parts number given.

You probably want to get the 32A 5 pin if you are going to do 22kwh ac charging, seeing that single phase 32 amp is 7 kilowatt. 3 x 7Kw = ~21 kw

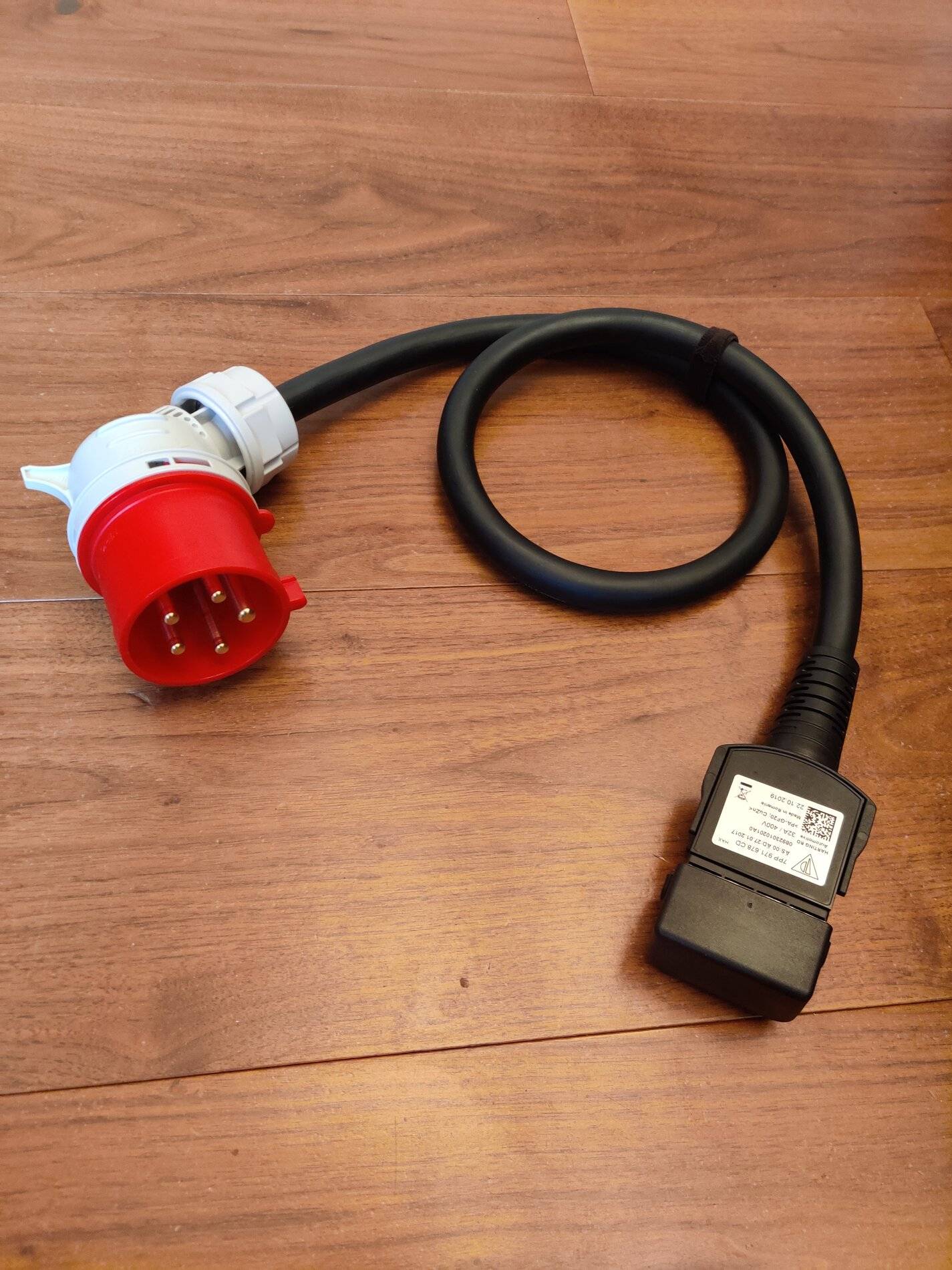

The one I posted a pic of is 32 amp.

Plus its easy to get converters off of Amazon. My house has a 63 amps red socket, so i had to buy a 63 amp to 32 amp converter.



[Toro69]

Thats what came with my car as standard when I picked it up. It was no good to me, the one I wanted was the standard lead that connect to the public chargers. I could only use the normal three pin house plug, which meant it took 12 hrs to charge !

Hi Neptune, I phoned up my local Porsche centre and gave the part number above but their system did not recognise it.
Is there another part number or is that it ?



[Neptune]

Hi Neptune, I phoned up my local Porsche centre and gave the part number above but their system did not recognise it.
Is there another part number or is that it ?

This was the part number on the invoice: P9588971678D - B35F charge cable In
And the picture of the cable is above with another part number on it.



[Toro69]

This was the part number on the invoice: P9588971678D - B35F charge cable In
And the picture of the cable is above with another part number on it.

I contacted them again and they found it, £86.50.
They said the part number I gave had too many 8's in it. Should be P958971678D.
Thanks for advise, am looking forward to using PMCC on 3 phase , 11kw
