400v 16amp. or 32amp

sulaiman

Well-Known Member
Joined
Oct 10, 2020
Threads
15
Messages
68
Reaction score
27
Location
kuwait
Vehicles
Taycan
Country flag
my dealer advising me to get the 16amp instead oof the 32 amp ...and when I asked him why I couldn't get his point

can someone please explain this ? as my understanding 400*16 =6.4 kw/h
400*32=12.8 kw/h
so why go for the slower one ??
Sponsored



Mouse House

Well-Known Member
Joined
Sep 1, 2020
Threads
4
Messages
247
Reaction score
253
Location
Suisse
Vehicles
New Balance 1500 v6
Country flag

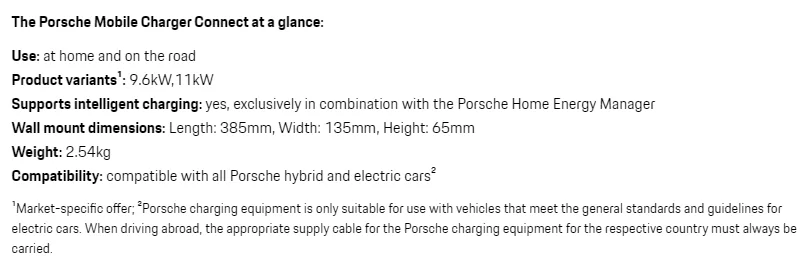

The Porsche Mobile Charger Connect maxes out at 11kW anyway. It will basically depend on what socket you have, I have a 400V 16A so obviously got that one. The PMCC detected it had that lead attached and set the appropriate current limit.

400V 3 phase @ 16A is 11kW so matches the standard built in charger. 32A could give you 22kW but the PMCC isn't capable of supplying that, and you would need to spend the extra $2k on the upgraded charger inside the car, for limited benefit.

So the only benefit I can see is if it matches the socket you have on your wall.

Porsche Taycan 400v 16amp.  or 32amp 1602756885512

OP
OP
sulaiman

sulaiman

Well-Known Member
Joined
Oct 10, 2020
Threads
15
Messages
68
Reaction score
27
Location
kuwait
Vehicles
Taycan
Country flag
The Porsche Mobile Charger Connect maxes out at 11kW anyway. It will basically depend on what socket you have, I have a 400V 16A so obviously got that one. The PMCC detected it had that lead attached and set the appropriate current limit.

400V 3 phase @ 16A is 11kW so matches the standard built in charger. 32A could give you 22kW but the PMCC isn't capable of supplying that, and you would need to spend the extra $2k on the upgraded charger inside the car, for limited benefit.

So the only benefit I can see is if it matches the socket you have on your wall.

thanks a lot for the explanation
it just cleared things for me now

so my dealer was right


oalsaker

Well-Known Member
First Name
Øystein
Joined
Jun 8, 2020
Threads
6
Messages
545
Reaction score
785
Location
Norway
Vehicles
Crayon Taycan 4s
Country flag
I have a 230 V 32 A single phase system in my outlet, so I have use for a 32 A cable, it provides around 7 kW.

OP
OP
sulaiman

sulaiman

Well-Known Member
Joined
Oct 10, 2020
Threads
15
Messages
68
Reaction score
27
Location
kuwait
Vehicles
Taycan
Country flag
I have a 230 V 32 A single phase system in my outlet, so I have use for a 32 A cable, it provides around 7 kW.
i wish I could opt for the new 22kw but that would delay my order which is not worth it



Mouse House

Well-Known Member
Joined
Sep 1, 2020
Threads
4
Messages
247
Reaction score
253
Location
Suisse
Vehicles
New Balance 1500 v6
Country flag
It's a bit hard to access the right information but there are 32A cables for both single and 3 phase supplies. And it does appear in the manual linked below that there's a 22kW version of the PMCC.

But as I say it's dependent on your car spec and home electricity supply, and as others have said elsewhere the benefits of charging faster are maybe not that great if you're plugging it in at home overnight.

https://files.porsche.com/filestore...obile-Charger-Connect-Installation-Manual.pdf

OP
OP
sulaiman

sulaiman

Well-Known Member
Joined
Oct 10, 2020
Threads
15
Messages
68
Reaction score
27
Location
kuwait
Vehicles
Taycan
Country flag
It's a bit hard to access the right information but there are 32A cables for both single and 3 phase supplies. And it does appear in the manual linked below that there's a 22kW version of the PMCC.

But as I say it's dependent on your car spec and home electricity supply, and as others have said elsewhere the benefits of charging faster are maybe not that great if you're plugging it in at home overnight.

https://files.porsche.com/filestore...obile-Charger-Connect-Installation-Manual.pdf
the onboard 22kw charger option is new to the configuratore so my car will not get that
mine will come with the 11KW

as per my calculation, I think I can safely say I can get around 0.5KM /min with the 11KW
correct me if I'm wrong

Last edited:

oalsaker

Well-Known Member
First Name
Øystein
Joined
Jun 8, 2020
Threads
6
Messages
545
Reaction score
785
Location
Norway
Vehicles
Crayon Taycan 4s
Country flag
Usually, a 32 A cable needs to have a thicker gauge to be able to support the current safely, I presume a three phase system puts an even higher load, needing an even thicker wire.



Pozuelo

Well-Known Member
First Name
Roberto
Joined
Feb 14, 2020
Threads
89
Messages
653
Reaction score
873
Location
Madrid, Spain
Vehicles
2020 Taycan Turbo S, 2018 E63S Estate, 2023 A45S
Country flag
the onboard 22kw charger option is new to the configuratore so my car will not get that
mine will come with the 11KW

as my per calculation, I think I can safely say I can get around 0.5KM /min with the 11KW
correct me if I'm wrong

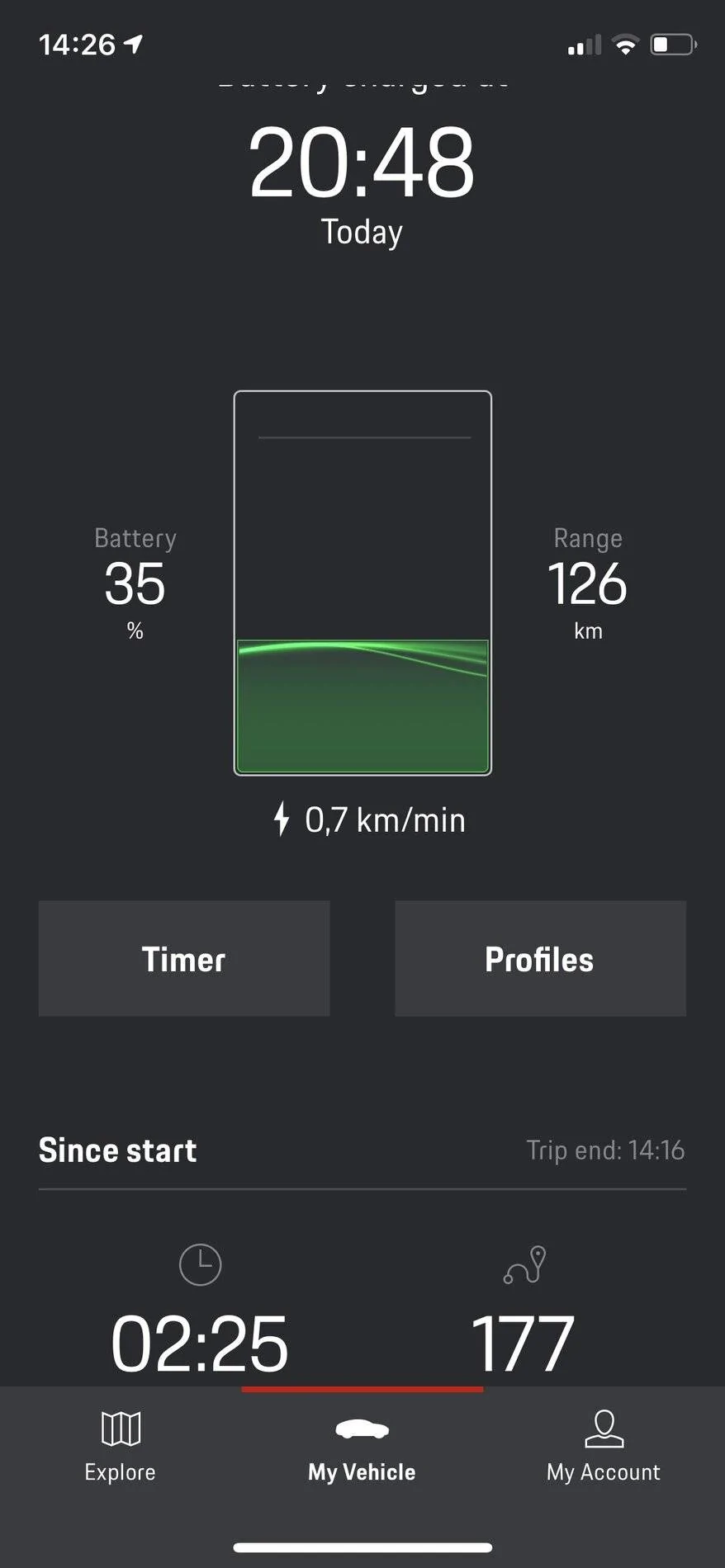

0,7km/min and 10kw at the car from a 22kw capable PMCC. I will look into retrofitting the 22kw AC/DC converter if price is not over the top. I was advised they may have a kit around mid to late 2021.
Porsche Taycan 400v 16amp.  or 32amp BD846FDC-8B39-4CAD-AD3E-2230BCC521C8
Porsche Taycan 400v 16amp.  or 32amp DB363176-EA41-4B24-9E7C-0385109FE0CF

Last edited:
OP
OP
sulaiman

sulaiman

Well-Known Member
Joined
Oct 10, 2020
Threads
15
Messages
68
Reaction score
27
Location
kuwait
Vehicles
Taycan
Country flag
0,7km/min and 10kw at the car from a 22kw capable PMCC. I will look into retrofitting the 22kw AC/DC converter if price is not over the top. I was advised they may have a kit around mid to late 2021.
thanks a lot 0.7 is perfect for me ...i don't think the 22 kw will be less than 3500$


SwissTaycan

Well-Known Member
First Name
Dieter
Joined
Oct 7, 2020
Threads
14
Messages
226
Reaction score
222
Location
Zurich
Vehicles
4S arrived on 23.12.20 and 718 Spyder on order
Country flag
The Porsche Mobile Charger Connect maxes out at 11kW anyway. It will basically depend on what socket you have, I have a 400V 16A so obviously got that one. The PMCC detected it had that lead attached and set the appropriate current limit.

400V 3 phase @ 16A is 11kW so matches the standard built in charger. 32A could give you 22kW but the PMCC isn't capable of supplying that, and you would need to spend the extra $2k on the upgraded charger inside the car, for limited benefit.

So the only benefit I can see is if it matches the socket you have on your wall.

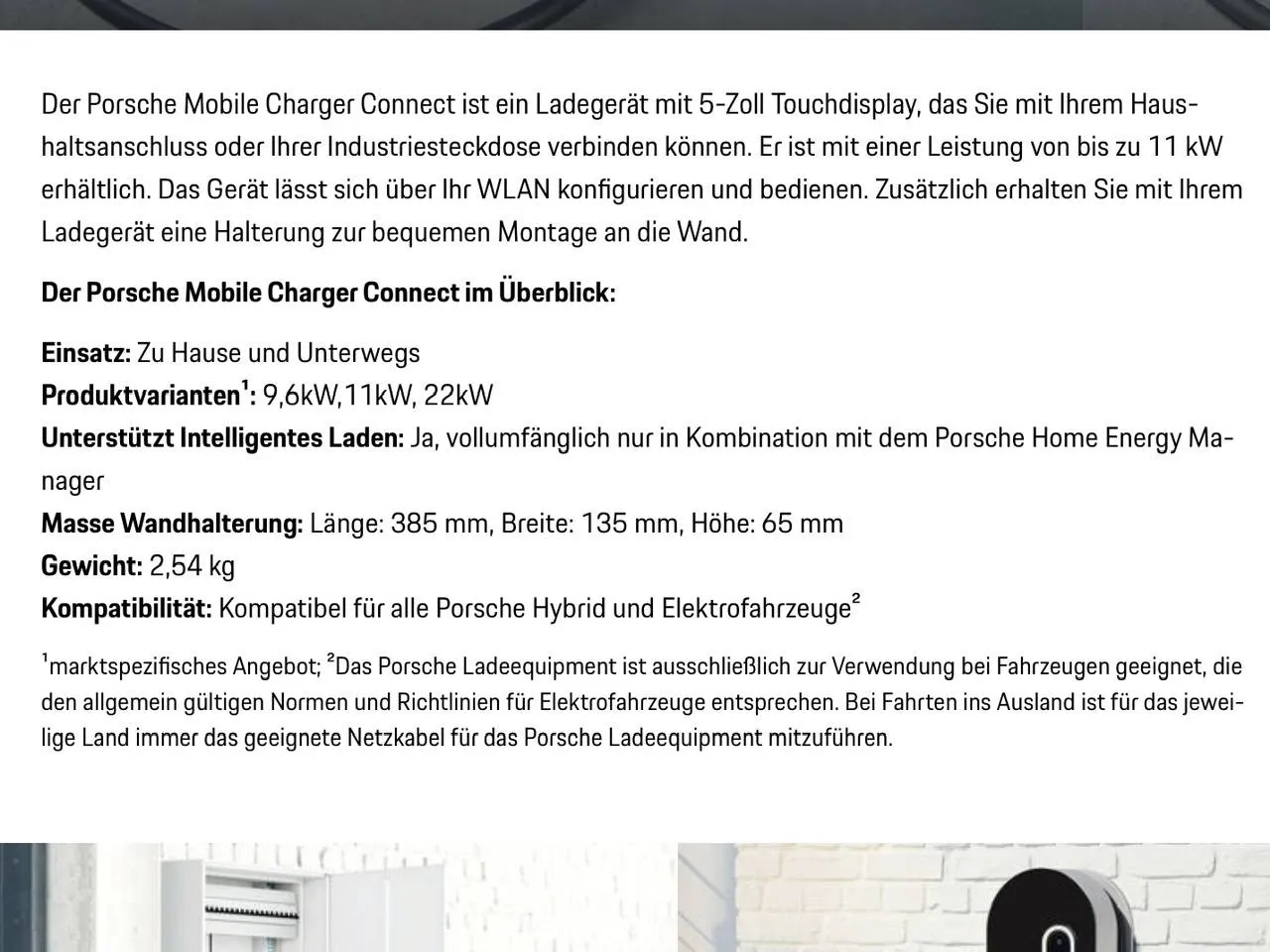

No this info is outdated. The PMCC can now do 22kW and why I waited on my order until now as I have 32A at home. So cuts charging time in half at home.

I was actually confused about the Porsche Switzerland website not listing this and they actually updated it after I asked the question :) .

That being said it is still incorrect in the second line but then correct and updated in the “Produktvarianten“ line that lists 9,6, 11 and 22 kW.
Porsche Taycan 400v 16amp.  or 32amp C2AB08ED-002F-4232-8BF8-B3D7449DD3CB


Scandinavian

Well-Known Member
First Name
Peter
Joined
Nov 3, 2019
Threads
47
Messages
3,049
Reaction score
2,640
Location
France
Vehicles
Taycan T, Tesla M3P, Aston Martin DB9, Porsche 996 C4 Cab
Country flag
There are as you say a number of different PMCC available. I have one that came with the Car from March of this year and it can charge at Max 22 kW. I have tried it with a friends Zoe and it worked just fine. Zoe is well known to be troublesome to charge as well.

For me the limiting factor is the charger in the car.


miglio

Well-Known Member
Joined
Aug 1, 2020
Threads
19
Messages
99
Reaction score
81
Location
Italy
Vehicles
Taycan 4s - Cayenne Coupe Hybrid - Carrera S 992
Country flag
the onboard 22kw charger option is new to the configuratore so my car will not get that
mine will come with the 11KW

as my per calculation, I think I can safely say I can get around 0.5KM /min with the 11KW
correct me if I'm wrong
0.7km/min

this in my 400 triphase 16 amp and 11 kw
