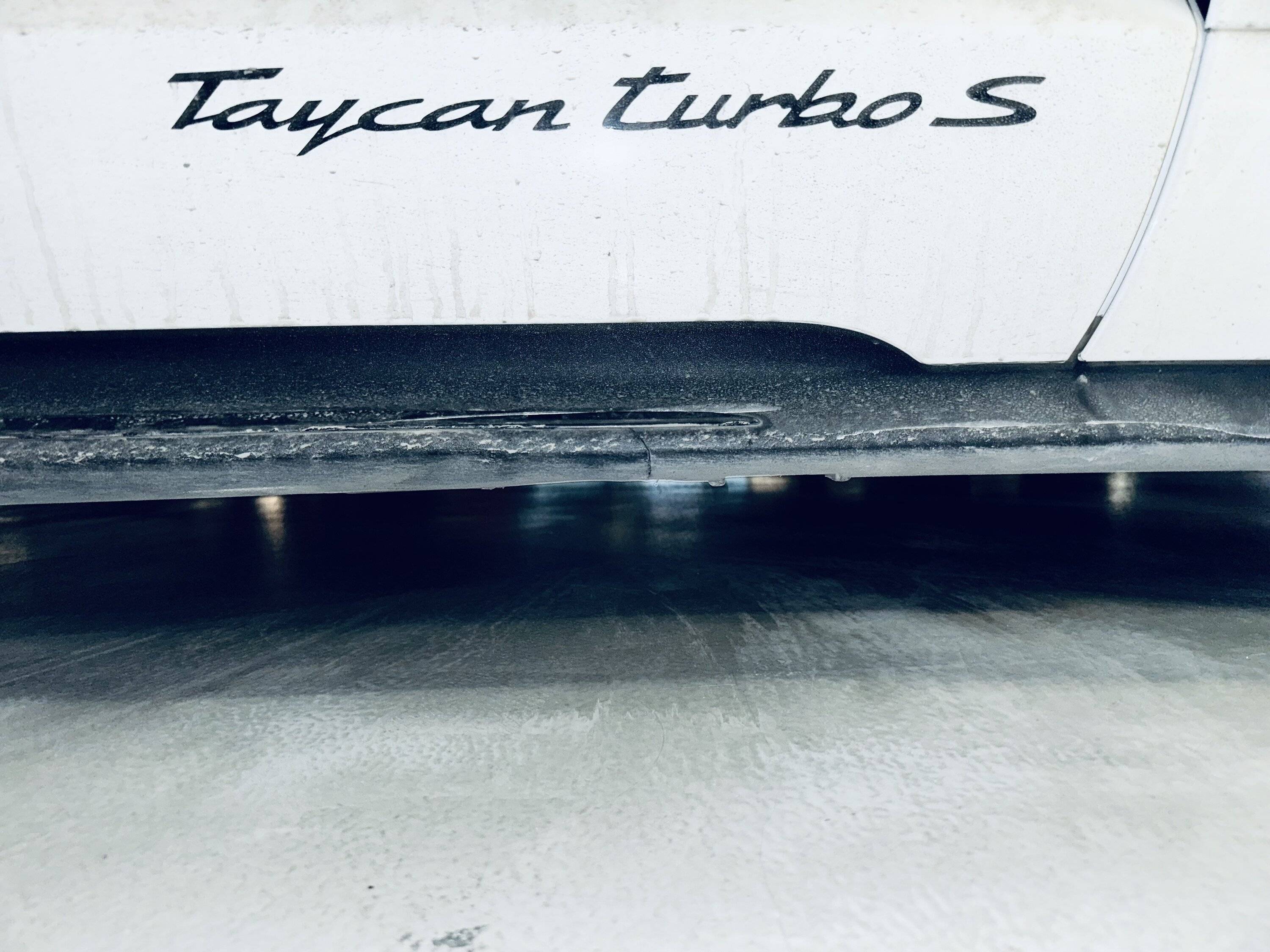

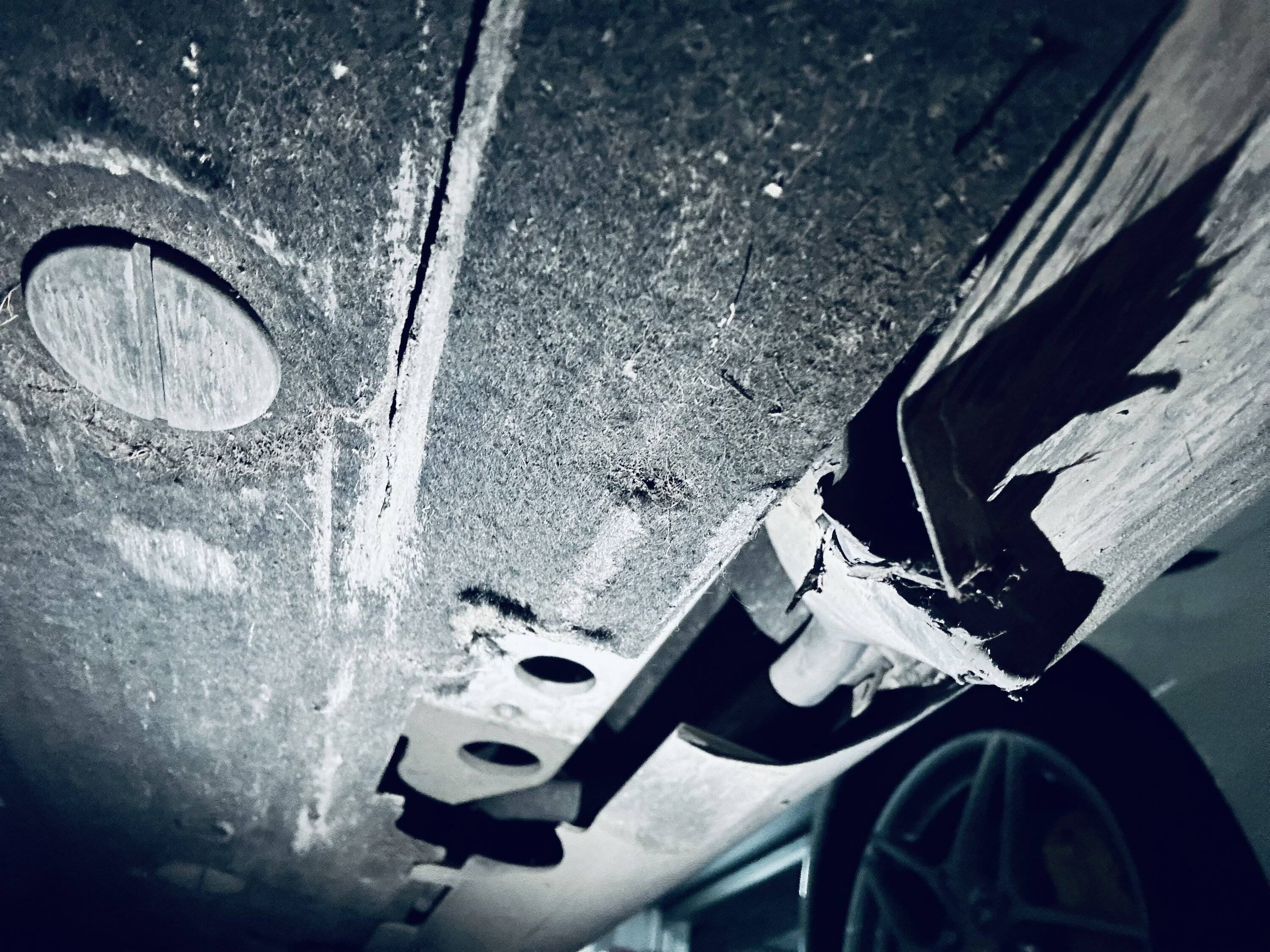

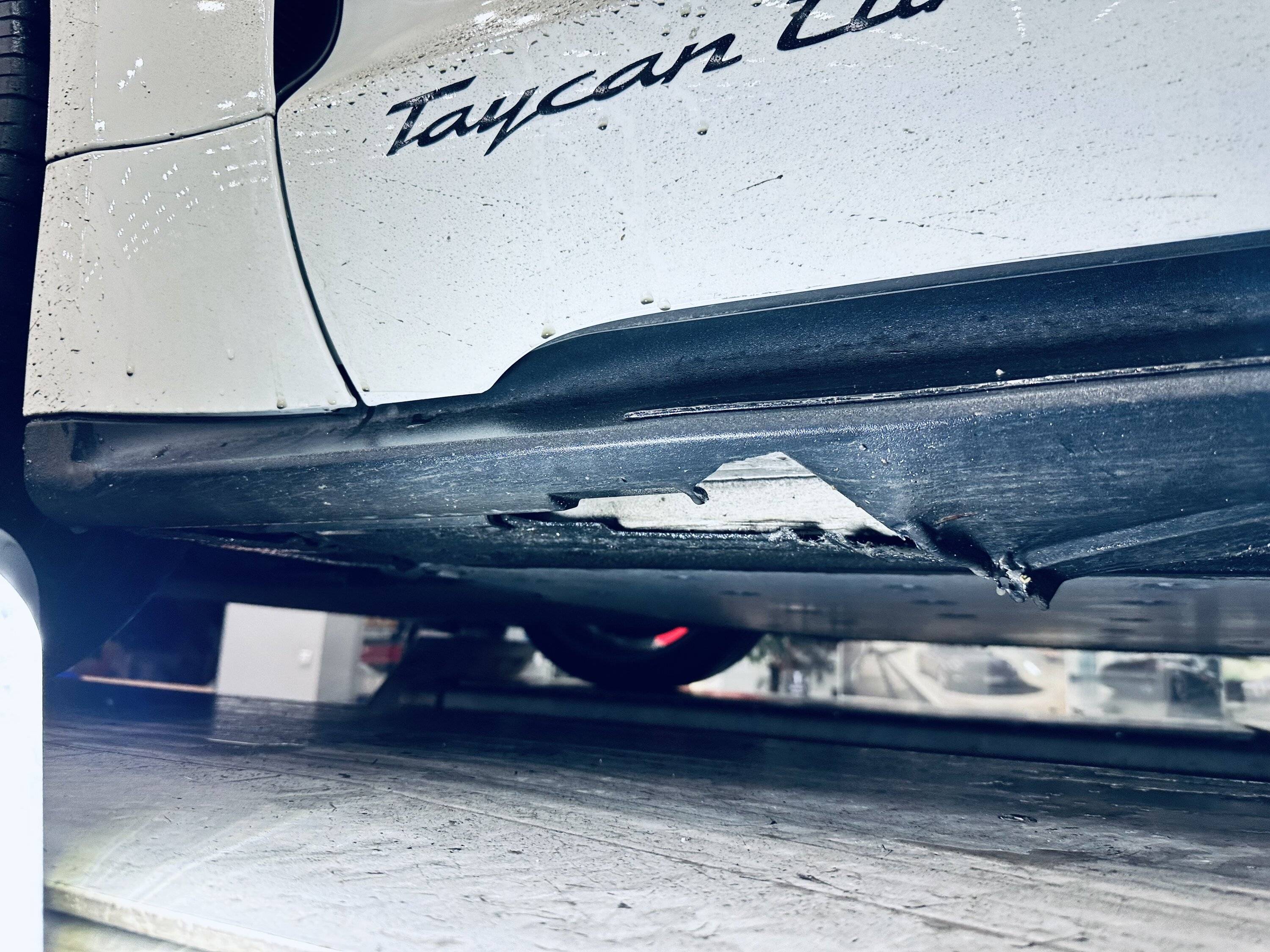

Bottomed out on a raised bumped in the parking lot with 4 people in the car. Usually pretty good about lifting prior to bumps but this one was flat and then slanted down. Caught the jack stand block which was the lowest point of the car and ripped a big hole in the sideskirt. Other side just a minor crack in the skirt. Just a word of caution and glad there wasn’t much damage to other areas.

Porsche Taycan Bottomed out in parking lots - damaged side skirts and jack stand bracket (repair info inside) IMG_5036


Porsche Taycan Bottomed out in parking lots - damaged side skirts and jack stand bracket (repair info inside) IMG_5030

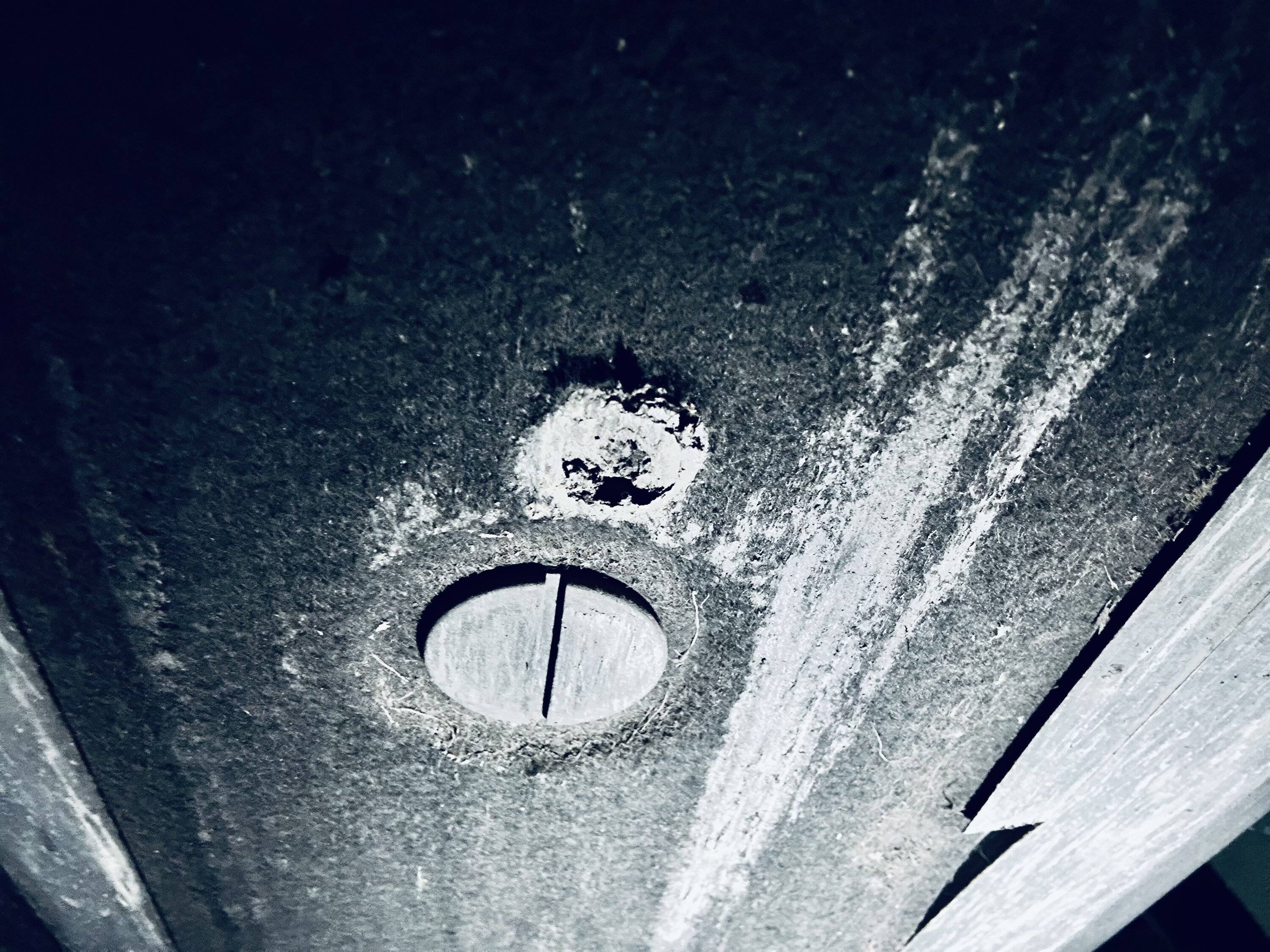

Porsche Taycan Bottomed out in parking lots - damaged side skirts and jack stand bracket (repair info inside) IMG_5029

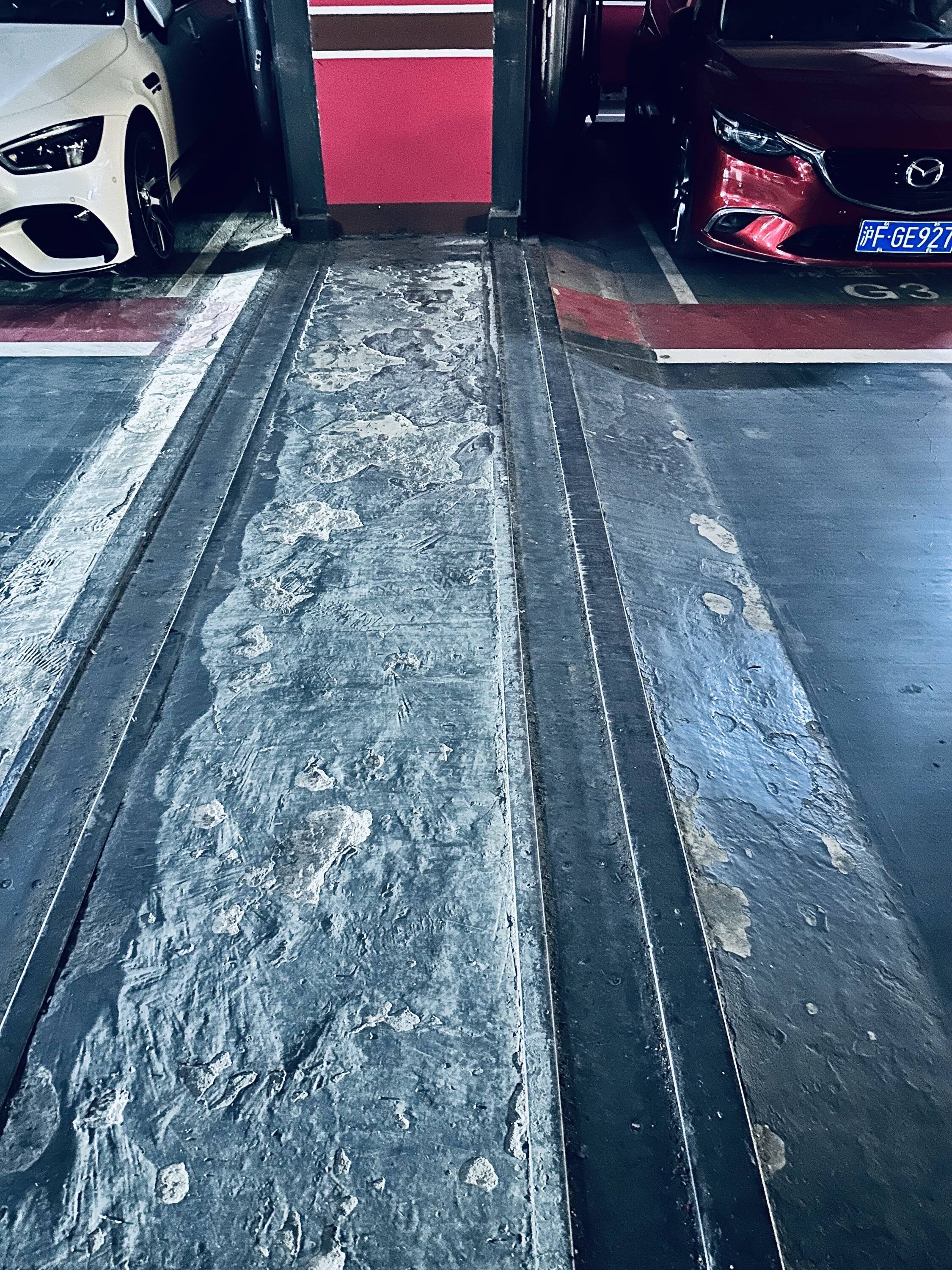

Porsche Taycan Bottomed out in parking lots - damaged side skirts and jack stand bracket (repair info inside) IMG_5011


Porsche Taycan Bottomed out in parking lots - damaged side skirts and jack stand bracket (repair info inside) IMG_5144

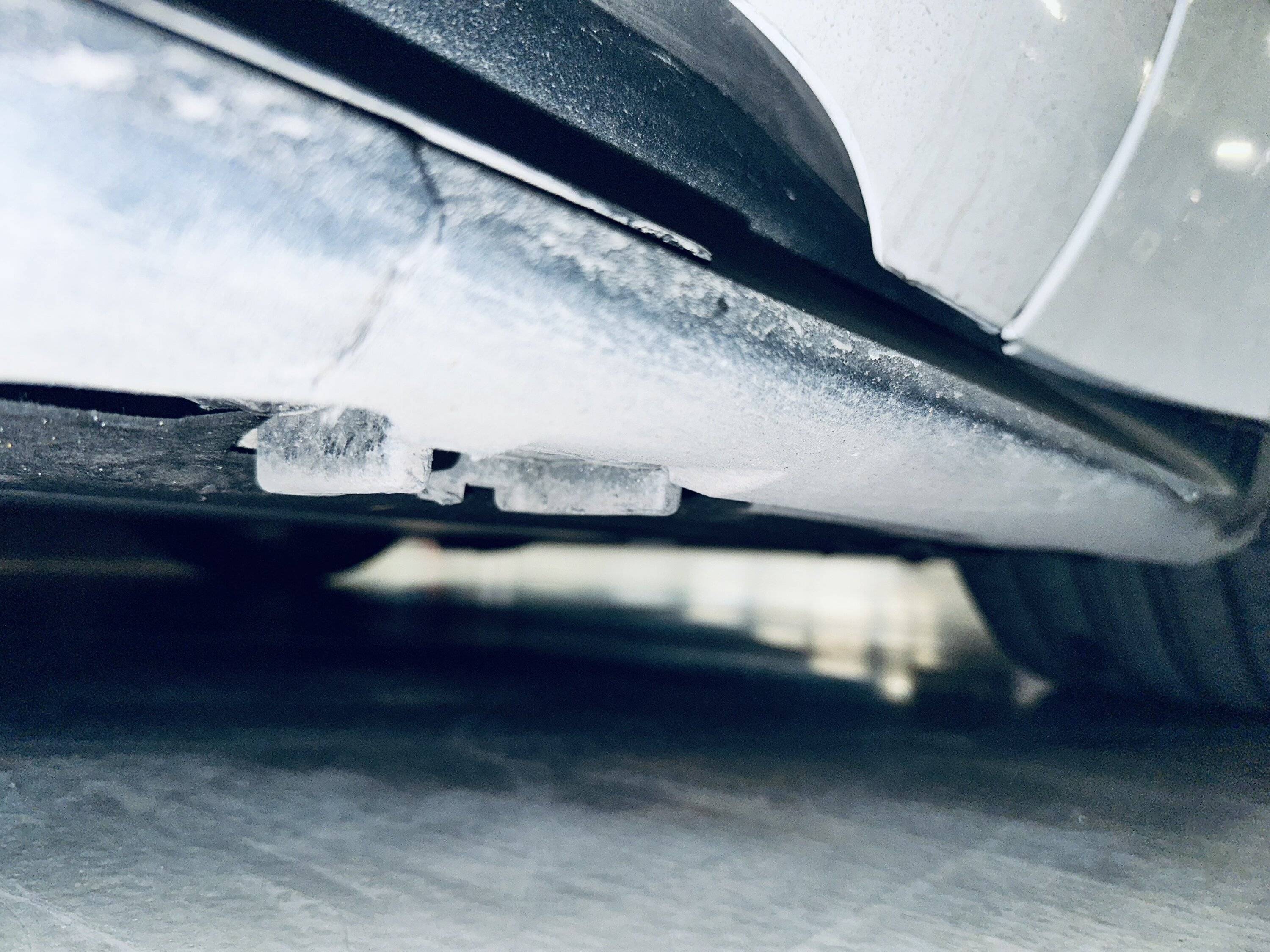

Porsche Taycan Bottomed out in parking lots - damaged side skirts and jack stand bracket (repair info inside) IMG_5143


Porsche Taycan Bottomed out in parking lots - damaged side skirts and jack stand bracket (repair info inside) 88409265b9de326e601c20e8399cdd47

OP
OP

ACTurboS

Member
First Name
AC
Joined
Jan 7, 2024
Threads
1
Messages
11
Reaction score
16
Location
Shanghai
Vehicles
2017 Model X 100D, 2020 Taycan Turbo S
Country flag
Ahhhhh heartbreaking :( Are you able to get it repaired?

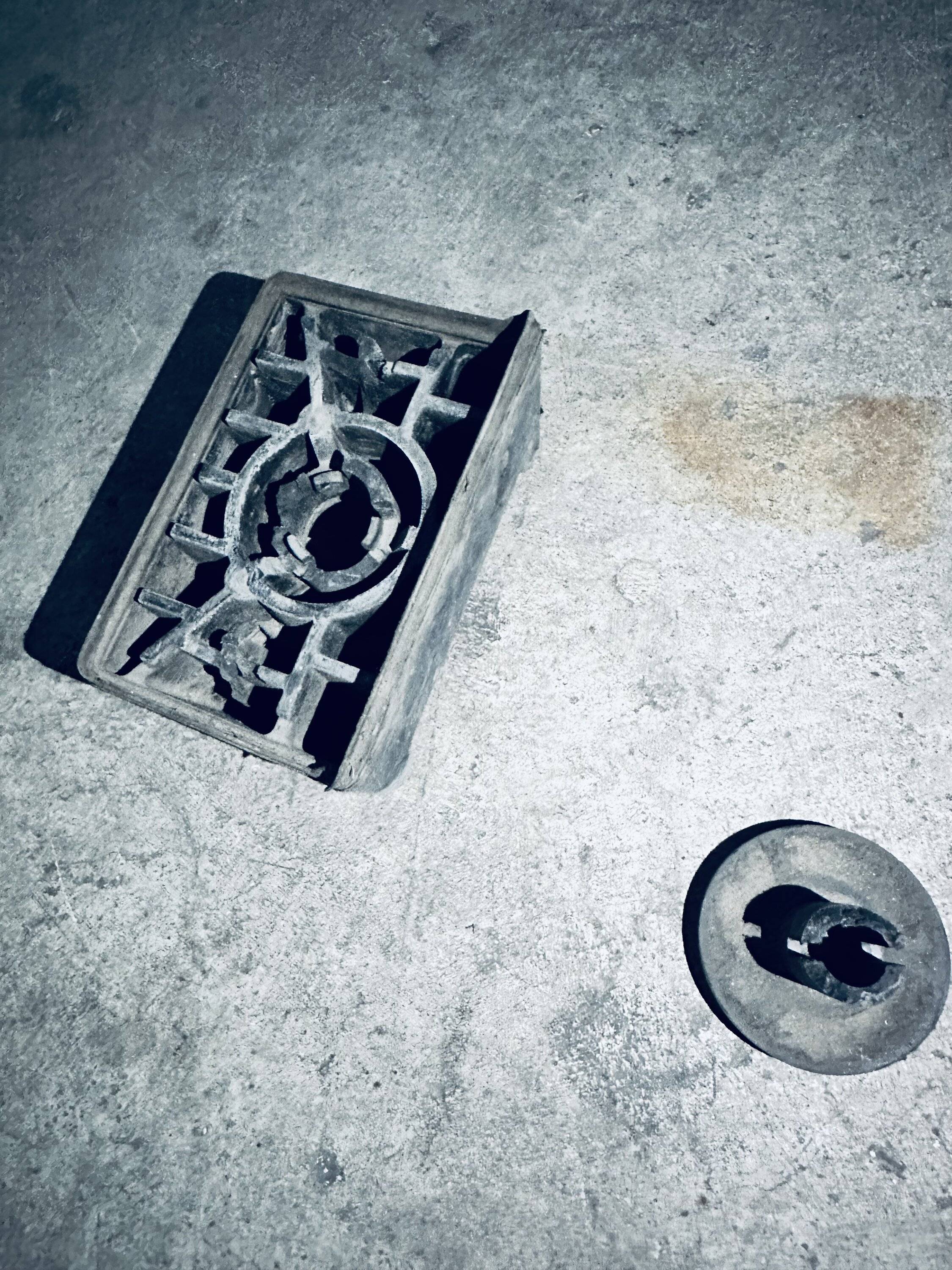

The loud crack noise was definitely painful as the jack stand piece broke off. Yes working with the insurance company for the claim as we speak. Apparently it’s an easy fix. Here’s more info for future reference if anyone else runs into the same problem.

Porsche Taycan Bottomed out in parking lots - damaged side skirts and jack stand bracket (repair info inside) IMG_5020

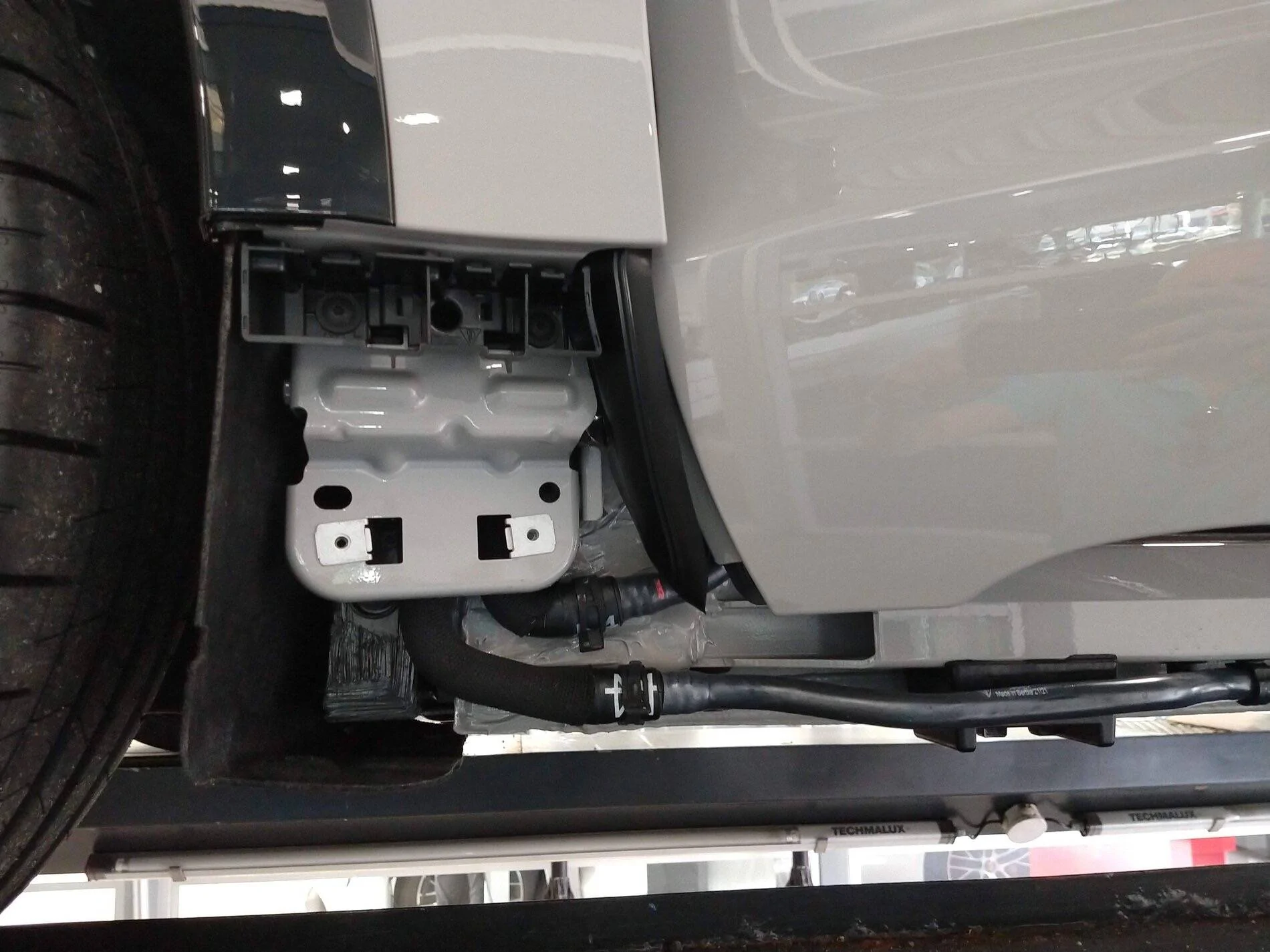

Porsche Taycan Bottomed out in parking lots - damaged side skirts and jack stand bracket (repair info inside) 5f73a6303d407ed4cd0d3bb11bc83add

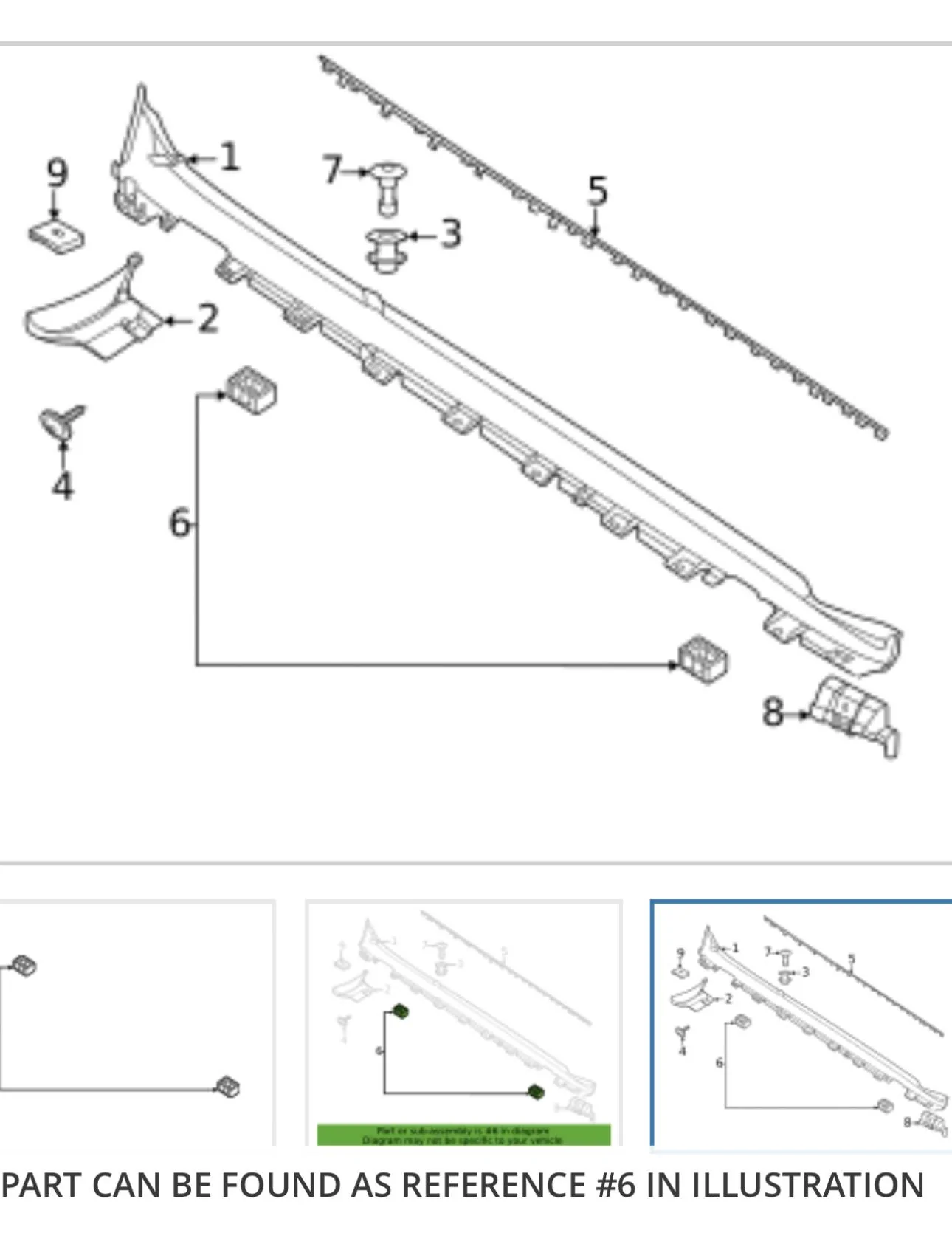

Porsche Taycan Bottomed out in parking lots - damaged side skirts and jack stand bracket (repair info inside) IMG_5002

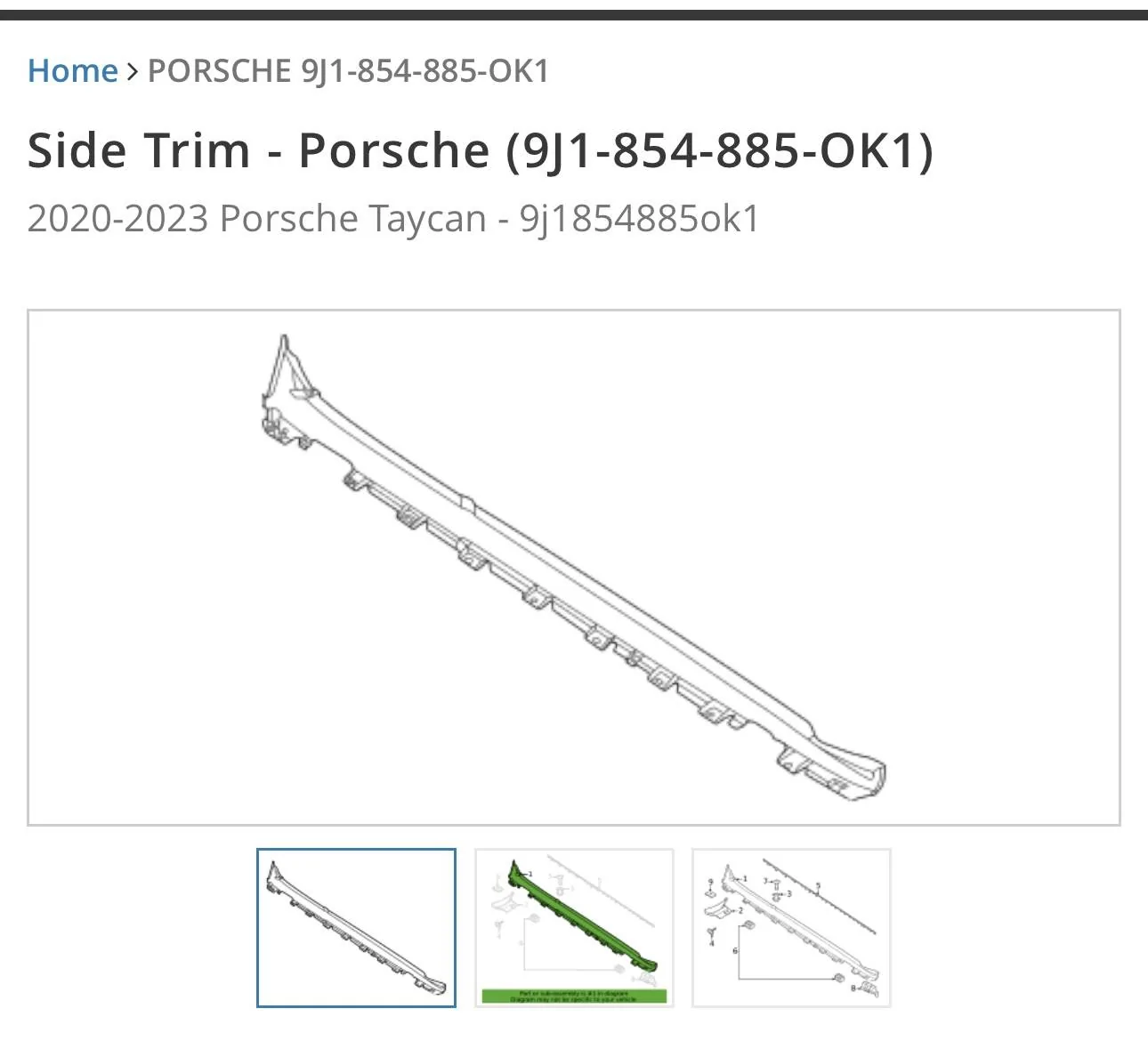

Porsche Taycan Bottomed out in parking lots - damaged side skirts and jack stand bracket (repair info inside) IMG_5007

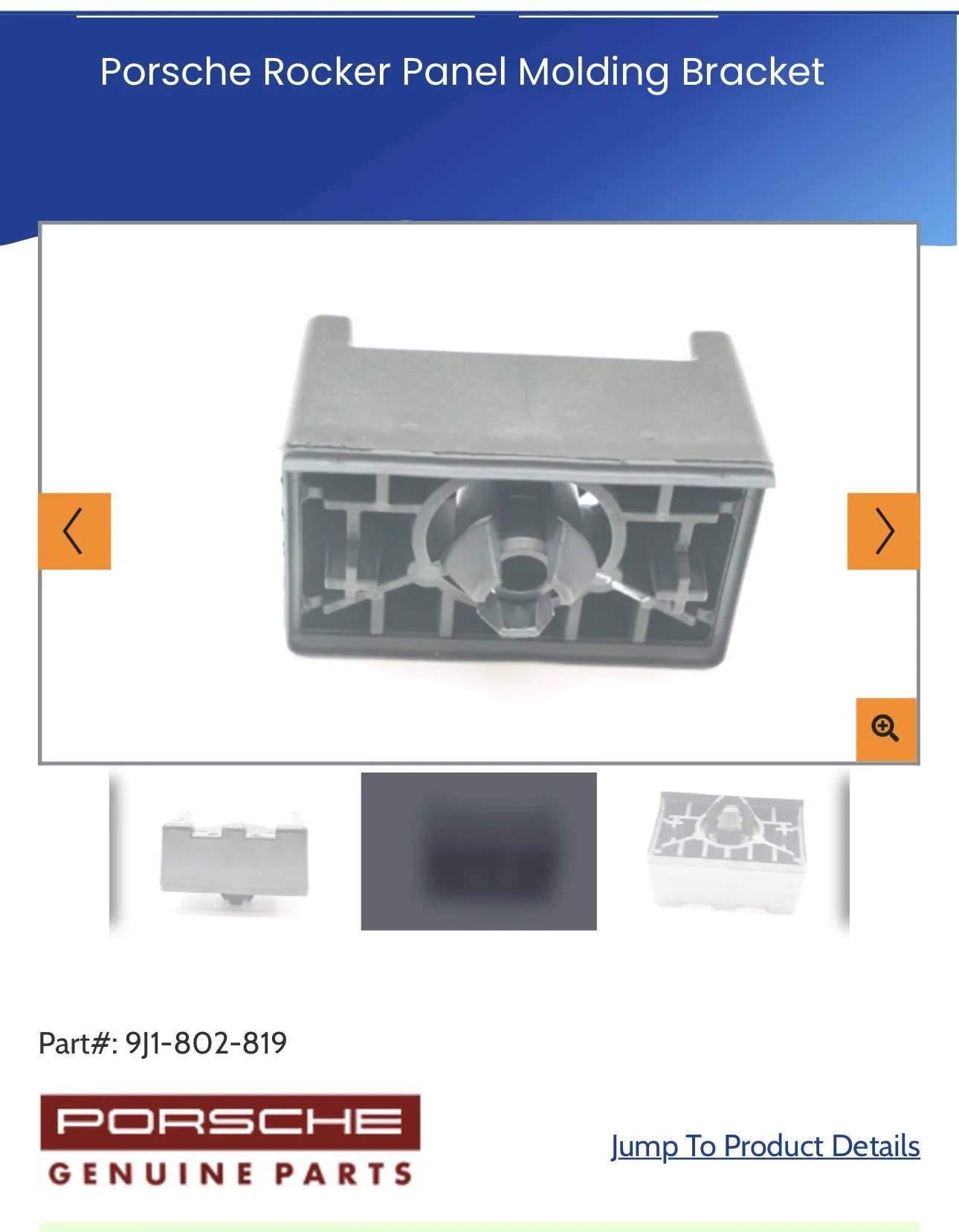

Porsche Taycan Bottomed out in parking lots - damaged side skirts and jack stand bracket (repair info inside) IMG_4998


rim23

Well-Known Member
Joined
Feb 14, 2023
Threads
10
Messages
160
Reaction score
104
Location
.
Vehicles
Taycan 4S
Country flag
The loud crack noise was definitely painful as the jack stand piece broke off. Yes working with the insurance company for the claim as we speak. Apparently it’s an easy fix. Here’s more info for future reference if anyone else runs into the same problem.









What site is that? I mean the one that for parts. I only know one that shows that stuff for taycan, but your pictures don’t resemble thet

OP
OP

ACTurboS

Member
First Name
AC
Joined
Jan 7, 2024
Threads
1
Messages
11
Reaction score
16
Location
Shanghai
Vehicles
2017 Model X 100D, 2020 Taycan Turbo S
Country flag
What site is that? I mean the one that for parts. I only know one that shows that stuff for taycan, but your pictures don’t resemble thet
Pelicanparts or suncoast has a pretty good catalogue.



Donlam

Well-Known Member
First Name
Don
Joined
Jul 29, 2022
Threads
3
Messages
101
Reaction score
90
Location
Ireland
Vehicles
Audi e-Tron, Porsche Taycan rwd 23
Country flag
Bottomed out on a raised bumped in the parking lot with 4 people in the car. Usually pretty good about lifting prior to bumps but this one was flat and then slanted down. Caught the jack stand block which was the lowest point of the car and ripped a big hole in the sideskirt. Other side just a minor crack in the skirt. Just a word of caution and glad there wasn’t much damage to other areas.













Did you raise your car to pass the ramp?

OP
OP

ACTurboS

Member
First Name
AC
Joined
Jan 7, 2024
Threads
1
Messages
11
Reaction score
16
Location
Shanghai
Vehicles
2017 Model X 100D, 2020 Taycan Turbo S
Country flag
Did you raise your car to pass the ramp?
I thought I would pass without raising the car. Bad judgement because the ramp slants down after passing and caught the jack stand.
Good lesson learned and wanted to remind others not to make the same mistake.


allroadusa

Well-Known Member
First Name
Jerome
Joined
Sep 2, 2023
Threads
7
Messages
253
Reaction score
331
Location
France
Vehicles
Taycan 4S+ Pure White
Country flag
And I will take this advise very seriously, thanks.
The typical bump installed privately with no respect to the minimum width required by the legislation.



Vim Schrotnock

Well-Known Member
First Name
Vim
Joined
Oct 20, 2018
Threads
22
Messages
984
Reaction score
1,426
Location
Cincinnati
Vehicles
GTB1 Race Cayman, Taycan Turbo S
Country flag
I’ve had the same type of thing happened to me but it was just a mild scrape on the underside. From now on I make sure that I am in high setting whenever I head into a parking lot with speed bumps.


ShiftyWolf

Well-Known Member
Joined
Nov 16, 2023
Threads
6
Messages
187
Reaction score
228
Location
Central Florida
Vehicles
2021 Porsche Taycan 4S, 2017 Audi Q5 PP
Country flag
Bottomed out on a raised bumped in the parking lot with 4 people in the car.
Sorry for your damage and glad to hear it seems a simple enough repair. Can you add what suspension height you were in at the time?


KLHubb

Well-Known Member
First Name
Kent
Joined
Jan 15, 2024
Threads
0
Messages
85
Reaction score
81
Location
New York
Vehicles
Taycan 4S 2009 911S 2012 Cayenne
Country flag
Sorry for your damage and glad to hear it seems a simple enough repair. Can you add what suspension height you were in at the time?
I did the same thing a few months ago..In my case I didn't realize I was on the low chassis setting.
I bought the replacement parts from Suncoast, but got stymied when attempting to disassemble the wheel well parts. The jack block just pops in, but you need to use a jack to force it in....I had the Porsche tech at the dealer do it. Now I always check to be sure I am in normal height, unless on the highway, where the low setting reduces drag.

OP
OP

ACTurboS

Member
First Name
AC
Joined
Jan 7, 2024
Threads
1
Messages
11
Reaction score
16
Location
Shanghai
Vehicles
2017 Model X 100D, 2020 Taycan Turbo S
Country flag
Sorry for your damage and glad to hear it seems a simple enough repair. Can you add what suspension height you were in at the time?
I was in sport plus hence low.

OP
OP

ACTurboS

Member
First Name
AC
Joined
Jan 7, 2024
Threads
1
Messages
11
Reaction score
16
Location
Shanghai
Vehicles
2017 Model X 100D, 2020 Taycan Turbo S
Country flag
I did the same thing a few months ago..In my case I didn't realize I was on the low chassis setting.
I bought the replacement parts from Suncoast, but got stymied when attempting to disassemble the wheel well parts. The jack block just pops in, but you need to use a jack to force it in....I had the Porsche tech at the dealer do it. Now I always check to be sure I am in normal height, unless on the highway, where the low setting reduces drag.
Yes I was also contemplating just getting the block and not fixing the tear. However, I’m a bit anal and the more I saw it the more I felt the car was not in pristine condition and decide to do a full fix of both side skirts and all the scratched protection layers that go over the battery.

OP
OP

ACTurboS

Member
First Name
AC
Joined
Jan 7, 2024
Threads
1
Messages
11
Reaction score
16
Location
Shanghai
Vehicles
2017 Model X 100D, 2020 Taycan Turbo S
Country flag

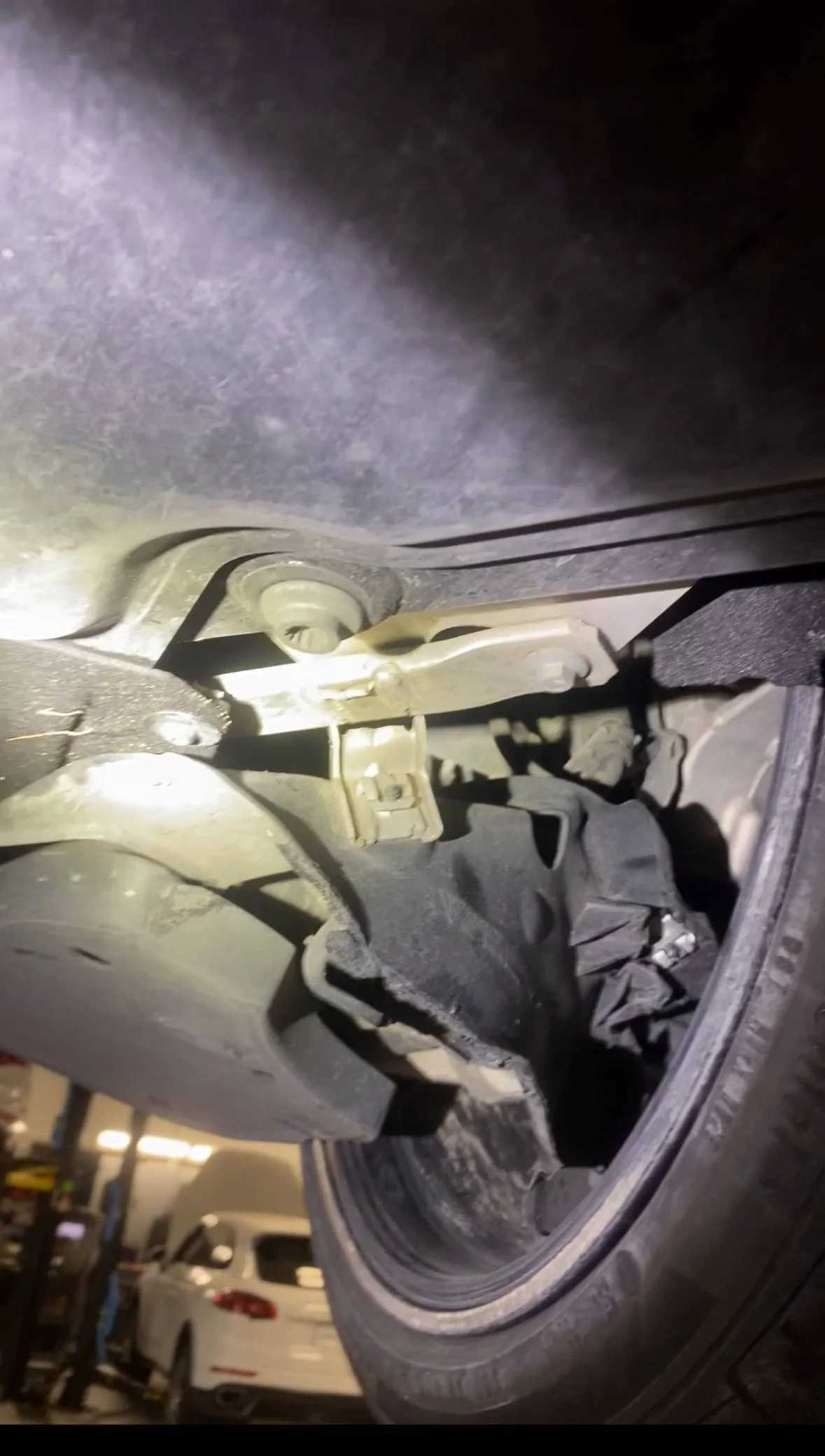

this happened to mine. Not sure how
Ouch! But I did notice right rear side cover being lower than the left. It’s an underbody aero piece. Apparently it can get caught especially when you’re going into an underground parking lot that has a breaking slant and the point of the concrete catches it slightly. Sometimes parking stops or bars can also catch it if you reverse park like I do.
