OP
daveo4EV

daveo4EV

Well-Known Member
First Name
David
Joined
Jan 28, 2019
Messages
1,892
Reaction score
2,920
Location
Santa Cruz
Vehicles
Tesla(s), 911 GT3, Boxster S, Bolt, Taycan, Cayenn
Country flag
  • Thread starter
  • Thread Starter
  • #31
once the 12V is dead I'm increasingly of the opinion the vehicle bus is isolated - the ODBII charger wot' provide enough power to "run" the main 12V computer - so it will never wake up - and you're not actually charging the 12V battery because it's "offline" and isolated behind a relay

but that's just pure speculation on my part - see diagram below - you need enough power on the 12V bus to power the main computer to trip the relay to reconnect the 12V battery - not clear to me the ODBII port can accept enough power for that to happen…when the 12V "dies" it goes offline behind the relay for it's isolated safety…

but this is all pure speculation on my part - but 12V power to the "jump post" is the recommended technique to wake the car up at the factory and as part of PDI when dealer receives the vehicle.

[picture deleted - see post #33]





Advertisement


Last edited:

Dave T

Well-Known Member
Joined
Jan 14, 2020
Messages
660
Reaction score
317
Location
Boston
Vehicles
Taycan Turbo
Country flag
Understood. I also know a bit about electronics and was wondering about a relay like that too. But why do you think there's such a relay? Or why couldn't the charger on the OBDII port power the main computer? Because it draws more than 3 amps?

OP
daveo4EV

daveo4EV

Well-Known Member
First Name
David
Joined
Jan 28, 2019
Messages
1,892
Reaction score
2,920
Location
Santa Cruz
Vehicles
Tesla(s), 911 GT3, Boxster S, Bolt, Taycan, Cayenn
Country flag
  • Thread starter
  • Thread Starter
  • #33

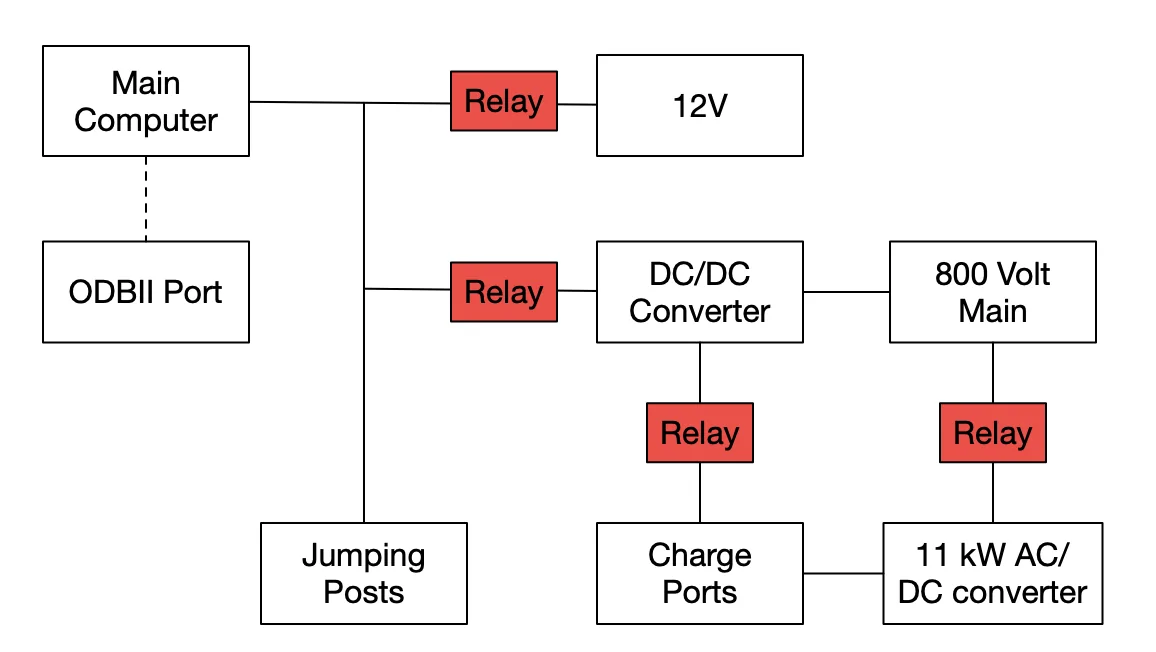

@Dave T I've revised my picture - ODBII is connected to the can-Bus - so it's not on the 12V "bus"

Screen Shot 2020-09-30 at 10.49.44 AM.png


I believe the 12V is behind a relay based on a conversation I had monday with the service manager - where he indicated once the 12V dies it's isolated and dropped off line - he indicated not all 12V failures are the "same" and not all 12V problems they've seen are due to low battery - but rather the 12V battery isolating itself for fault isolation…and to get it reconnected requires you "power the 12V bus" with enough power to run everything long enough for the 12V to come back online from behind the relay

the ODBII port is NOT directly connect to the 12V bus - but has power leads that can "back" feed power through where ever the ODBII is connected which will ultimately feed power to the 12V - but if the relay is "tripped" that back feed power has two problems:
  1. the 12V is behind a tripped relay - so no power is "hitting" the 12V battery
  2. the power provided by the trickle charger isn't enough to run the systems
but again this 100% pure speculation on my part - but I'll assert it's a reasonable supposition

at a minimum it would take a while to recover the 12V once it's dead given the paltry <3 amp feed via the ODBII port - and you'd have no idea if you are even making progress or how long it would take.

there is some evidence the 12V LiON battery is behind a "safety" relay - because the car is 100% dead as a doornail - and inert in this circumstance - all the relays have tripped and all 3 possible power sources have been isolated from one another:
  1. the main 93 kWh 800 volt DC system
  2. the small 12V battery
  3. the charging ports DC/AC inputs
nothing is connected in circumstance, which is why once you're here neither the power charging ports or 800V battery can even provide power to the main 12V power bus…

reasonable speculation is that this is a "safety" feature to isolate all these systems from one other from a "fault" - once a fault is detected (valid or invalid) everything 'trips' like a breaker and is isolated from one another so that the vehicle can be safely worked on…

providing ample 12V power to the bus is what is required to "reset" all these breakers so that these 3 systems "re-connect" and then they take over running the vehicle…

evidence for this is that other anomalies can cause the 'dead taycan' syndrome even where the 12V battery is perfectly fine and sufficiently charged yet the entire vehicle is still dead…

my speculation is that these systems are simultaneously robust and yet fragile - fragile in that _ANY_ perceived fault will trip everybody offline "for safety" - and then the only recovery possible is an external power-source bootstrapping the car back online via the 12V jumper posts…this speculation makes sense from a safety isolation behavior and fits the observed behaviors we've see for non 12V related failures (bad DC/DC converter is one example, the 12V was fine)

you need to provide power to the main computer via the 12V bus - and during the main computer startup procedures it will reset all the relays to bring the various power sources back online…with out sufficient external power to boot the main computer, there relays' will remain tripped for safety.

Last edited:

r553

Well-Known Member
First Name
Rob
Joined
Apr 26, 2019
Messages
300
Reaction score
146
Location
Rockledge FL
Vehicles
2016 Boxster Spyder, 2015 Cayenne Diesel, 2014 Mazda 3, Taycan 4s on order
Country flag
A 12 V LiFePO4 battery with a capacity of 40 Ah is used exclusively as the energy store for
the 12 V vehicle electrical system. This 12 V battery is installed in the body front section
in the technical equipment space and is accessed through the bonnet lid. As with the 992,
the battery contains the integrated battery sensor that records voltage, current and
temperature. The battery also contains a contactor (relay) that disconnects the positive
terminal internally if necessary .


UroDoc

Well-Known Member
Joined
Jul 1, 2020
Messages
56
Reaction score
28
Location
Lone Star State
Vehicles
812 Superfast; AMG GT 53; Taycan 4S; DB11
Country flag
Anyone experience this after the software upgrade? Wondering if I still need to carry all the supplies with me ...


Miwa

Well-Known Member
Joined
Oct 3, 2019
Messages
674
Reaction score
631
Location
Bay Area, CA, USA
Vehicles
Taycan Turbo
Country flag
The OP's car is fully updated, and if it was just an update, they would've done that and handed him back his car. Which they haven't.

OP
daveo4EV

daveo4EV

Well-Known Member
First Name
David
Joined
Jan 28, 2019
Messages
1,892
Reaction score
2,920
Location
Santa Cruz
Vehicles
Tesla(s), 911 GT3, Boxster S, Bolt, Taycan, Cayenn
Country flag
  • Thread starter
  • Thread Starter
  • #38
my car also experienced this after the software update - the software update appears to have improved the situation (@louv can not longer reproduce his specific problem) - but given that we have confirmed cars with updates still experiencing these problems Porsche has not yet eradicated the problem.

this is common with complex software systems - you fix one problem and it now allows other latent problems to be exposed.


Scandinavian

Well-Known Member
First Name
Peter
Joined
Nov 3, 2019
Messages
1,100
Reaction score
833
Location
France
Vehicles
Taycan T, Tesla M3P, Aston Martin DB9, Porsche 996 C4 Cab
Country flag
@daveo4EV I appreciate the effort to write up this handy instructions on how to get the car back up running. I sincerely hope I will never need to do it, but I have left a printout in my car.

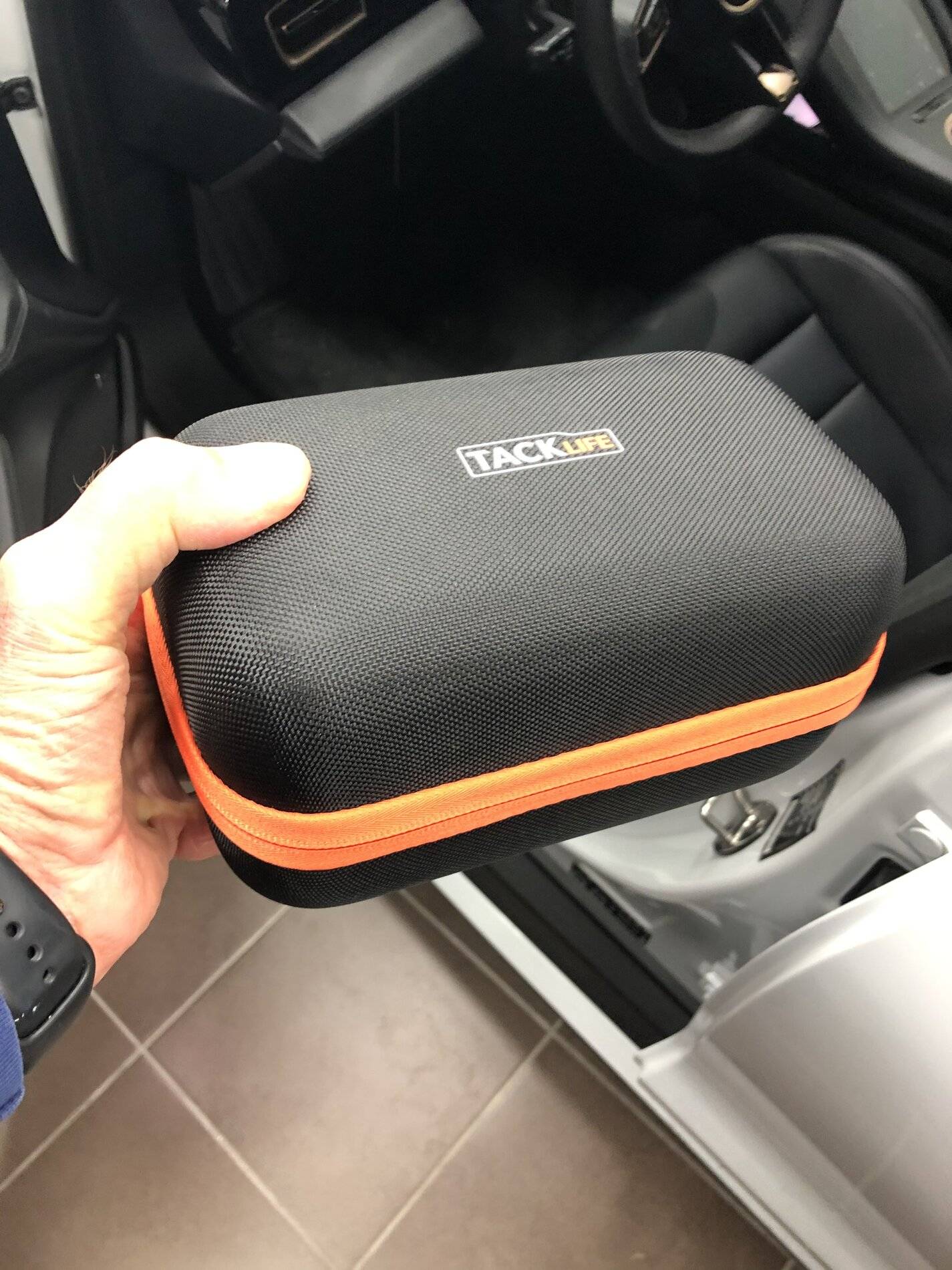

I bought a similar emergency pack as yours but not as powerful, just in case. It comes in a nice storage container see picture belo. I am thinking of getting Porsche to install a bracket on the front of the passenger seat, just like they do for a fire extinguisher, where it could be securely stowed!

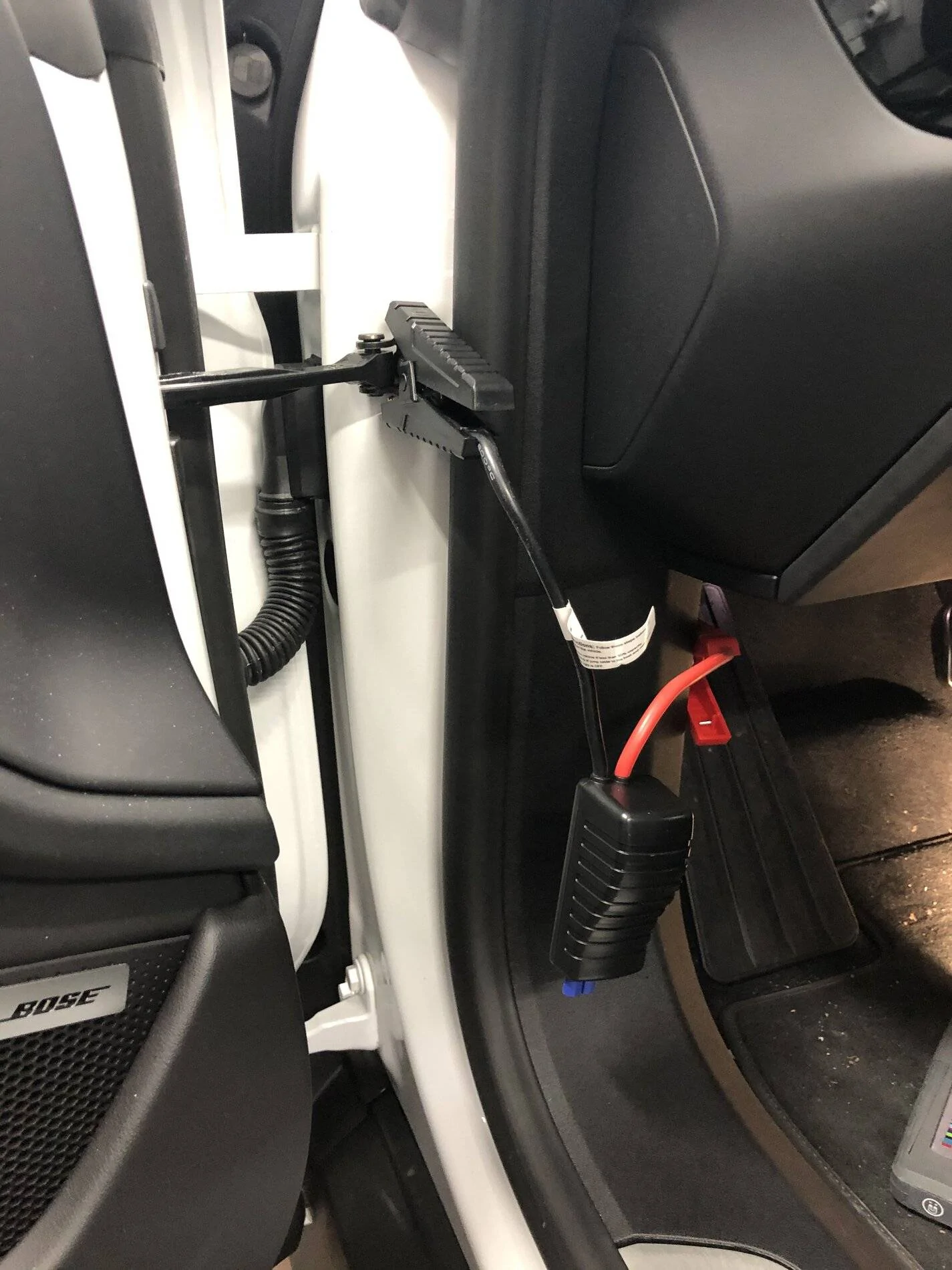

I also discovered that there is no need to bring a copper wire to use for ground connection. In my case the clip will reach the bolt and assembly for the door hinge, which is securely grounded. I measured and so no resistance between this hinge and the door lock that I think you referred to.


In this picture I have not connected the battery pack to the connectors though. Just for test .


Tonytones

Well-Known Member
Joined
Jul 21, 2020
Messages
116
Reaction score
80
Location
Quebec
Vehicles
Taycan 4S; Volvo xc90; Audi R8
Country flag
@daveo4EV I appreciate the effort to write up this handy instructions on how to get the car back up running. I sincerely hope I will never need to do it, but I have left a printout in my car.

I bought a similar emergency pack as yours but not as powerful, just in case. It comes in a nice storage container see picture belo. I am thinking of getting Porsche to install a bracket on the front of the passenger seat, just like they do for a fire extinguisher, where it could be securely stowed!


I also discovered that there is no need to bring a copper wire to use for ground connection. In my case the clip will reach the bolt and assembly for the door hinge, which is securely grounded. I measured and so no resistance between this hinge and the door lock that I think you referred to.


In this picture I have not connected the battery pack to the connectors though. Just for test .
This is correct. As a matter of fact, the owner manual does specify that the door hinge, as you pointed out, is the recommended site to place the black negative clip.
As @Daveo4 mentionned, you can also use other metallic part of the car, but you will need a copper extension wire in order to so.


Mwa3aan

Well-Known Member
Joined
Jul 9, 2020
Messages
104
Reaction score
126
Location
Washington, USA
Vehicles
Ford F-150 Raptor, Porsche Taycan Turbo
Country flag
Thank you for the information. My car was dead this morning. I decided on option 1, just to have the guy who had to tow the car use mechanism 2 to get the car out of the garage. Once recovered I had no desire to have my car pulled onto the flatbed. I will call Porsche Monday regardless.

Your clear instructions made it very easy to recover the vehicle. I appreciate it!!


Marshall

Well-Known Member
Joined
Oct 18, 2018
Messages
93
Reaction score
65
Location
Los Angeles
Vehicles
Taycan 4S; 2021 Macan S
Country flag
Thank you for the information. My car was dead this morning. I decided on option 1, just to have the guy who had to tow the car use mechanism 2 to get the car out of the garage. Once recovered I had no desire to have my car pulled onto the flatbed. I will call Porsche Monday regardless.

Your clear instructions made it very easy to recover the vehicle. I appreciate it!!
While I have never had the 12 v dead battery issue, I do have a question. Once you get the frunk open are you able to get the car into neutral? I park in a garage and I would not be able to open my frunk unless I could push my car about 3 feet-therefore I would need to get it into neutral. Thanks


Mwa3aan

Well-Known Member
Joined
Jul 9, 2020
Messages
104
Reaction score
126
Location
Washington, USA
Vehicles
Ford F-150 Raptor, Porsche Taycan Turbo
Country flag
While I have never had the 12 v dead battery issue, I do have a question. Once you get the frunk open are you able to get the car into neutral? I park in a garage and I would not be able to open my frunk unless I could push my car about 3 feet-therefore I would need to get it into neutral. Thanks
Once the frunk is open its pretty easy to get the car to start up again. Then you can just drive it out. Or put it in N and push it out.

With the frunk open you pull the top cover off and connect the battery power source you have to the clips as explained earlier in the thread.

I expected it to take a while before I would be able to drive it but it wakes up immediately and starts charging the 12v battery.

2 minutes later it was as if nothing went wrong.

I ordered the battery the OP linked to to put as a backup under my seat.


Marshall

Well-Known Member
Joined
Oct 18, 2018
Messages
93
Reaction score
65
Location
Los Angeles
Vehicles
Taycan 4S; 2021 Macan S
Country flag
Once the frunk is open its pretty easy to get the car to start up again. Then you can just drive it out. Or put it in N and push it out.

With the frunk open you pull the top cover off and connect the battery power source you have to the clips as explained earlier in the thread.

I expected it to take a while before I would be able to drive it but it wakes up immediately and starts charging the 12v battery.

2 minutes later it was as if nothing went wrong.

I ordered the battery the OP linked to to put as a backup under my seat.
This did not answer the question. I cannot fully open the frunk unless I can move the car back about 3-4 feet. Is is possible to get the car into neutral by just popping the frunk without actually opening it? Is there some other way to get the car into neutral id the car has "died" so the car can be moved so the 12v battery jump process can be initiated? Thanks

OP
daveo4EV

daveo4EV

Well-Known Member
First Name
David
Joined
Jan 28, 2019
Messages
1,892
Reaction score
2,920
Location
Santa Cruz
Vehicles
Tesla(s), 911 GT3, Boxster S, Bolt, Taycan, Cayenn
Country flag
  • Thread starter
  • Thread Starter
  • #45
This did not answer the question. I cannot fully open the frunk unless I can move the car back about 3-4 feet. Is is possible to get the car into neutral by just popping the frunk without actually opening it? Is there some other way to get the car into neutral id the car has "died" so the car can be moved so the 12v battery jump process can be initiated? Thanks
at this time there is _NO_ way that I'm aware of if your vehicle is in this position.

once the 12V battery is offline/dead the car is effectively a "brick" - there is no known method of recovery or engagements (changing transmission settings) unless you can provide power to the 12V jumper posts in the frunk area

if this is a major concern to you I would suggest arranging some accessible conductive "leads" attached to the 12V jumper posts that you can access without popping the frunk.

or perhaps back the vehicle into it's spot so that you can access the frunk.
