Inside of an ABB Terra High Power CCS Charger

bushmg

Active Member
First Name
Michael
Joined
Jun 3, 2020
Messages
26
Reaction score
19
Location
Fort Worth, Texas
Vehicles
2020 Taycan, 2017 911 Endurance Racing Edition,
Country flag

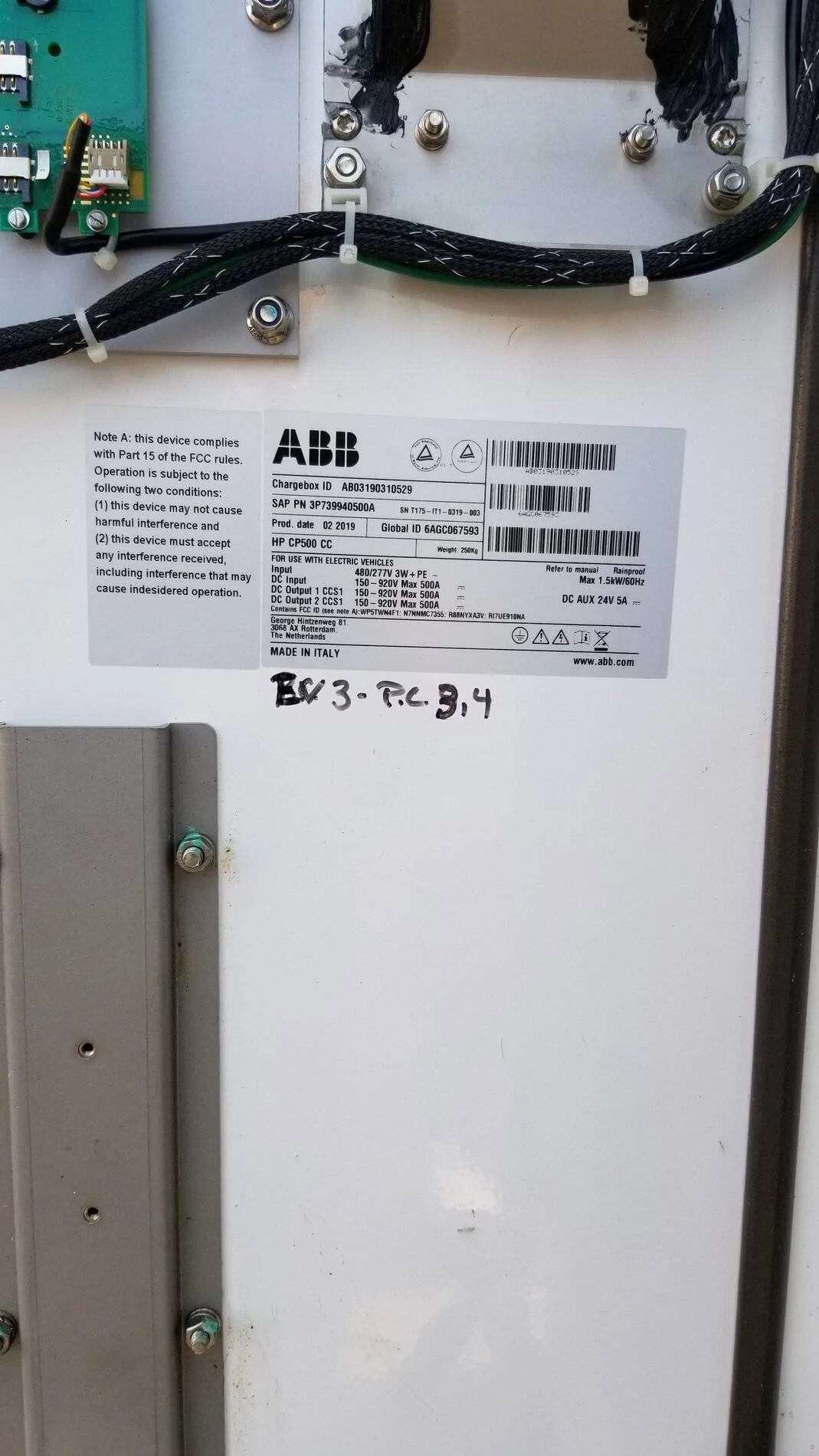

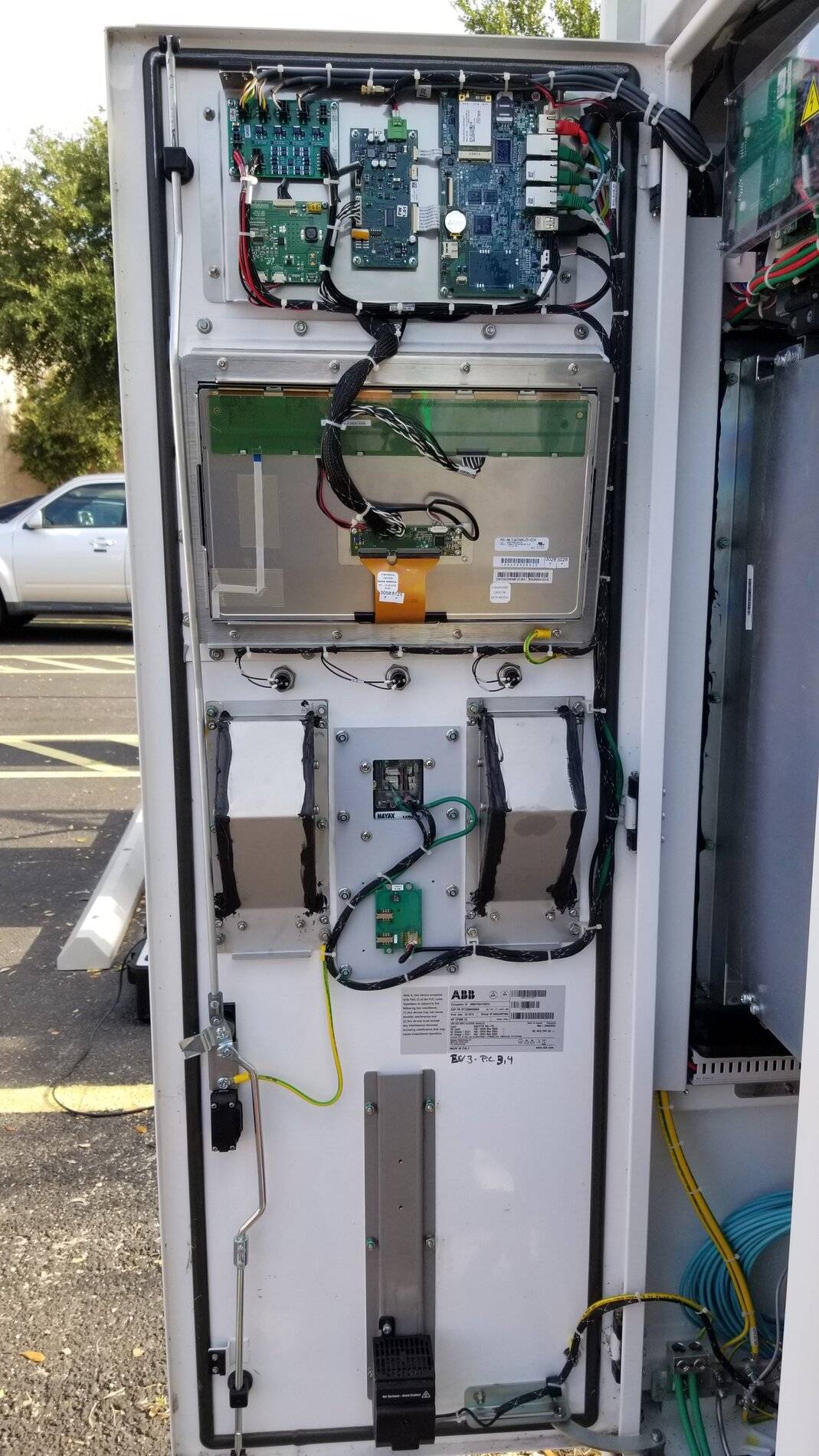

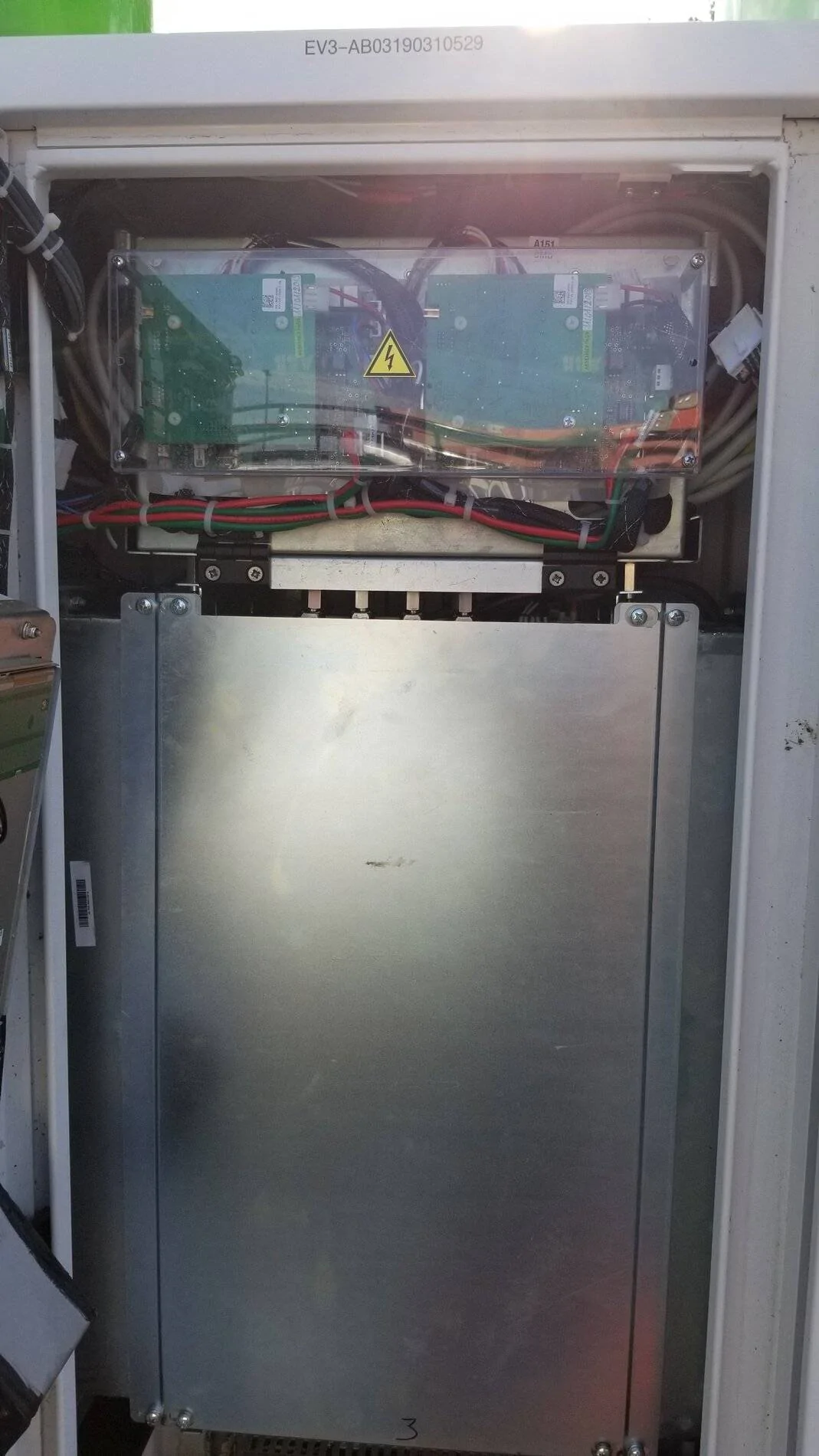

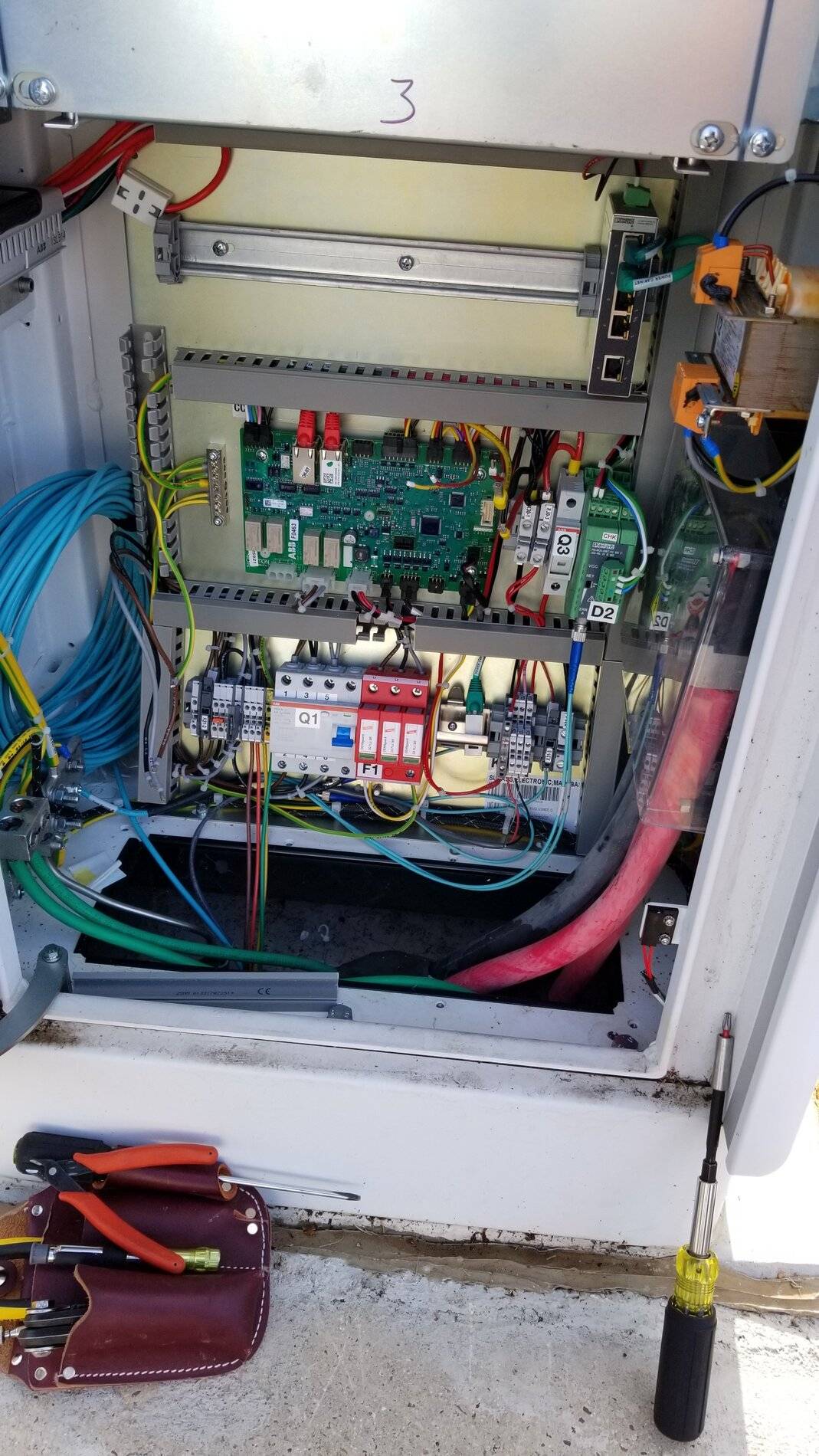

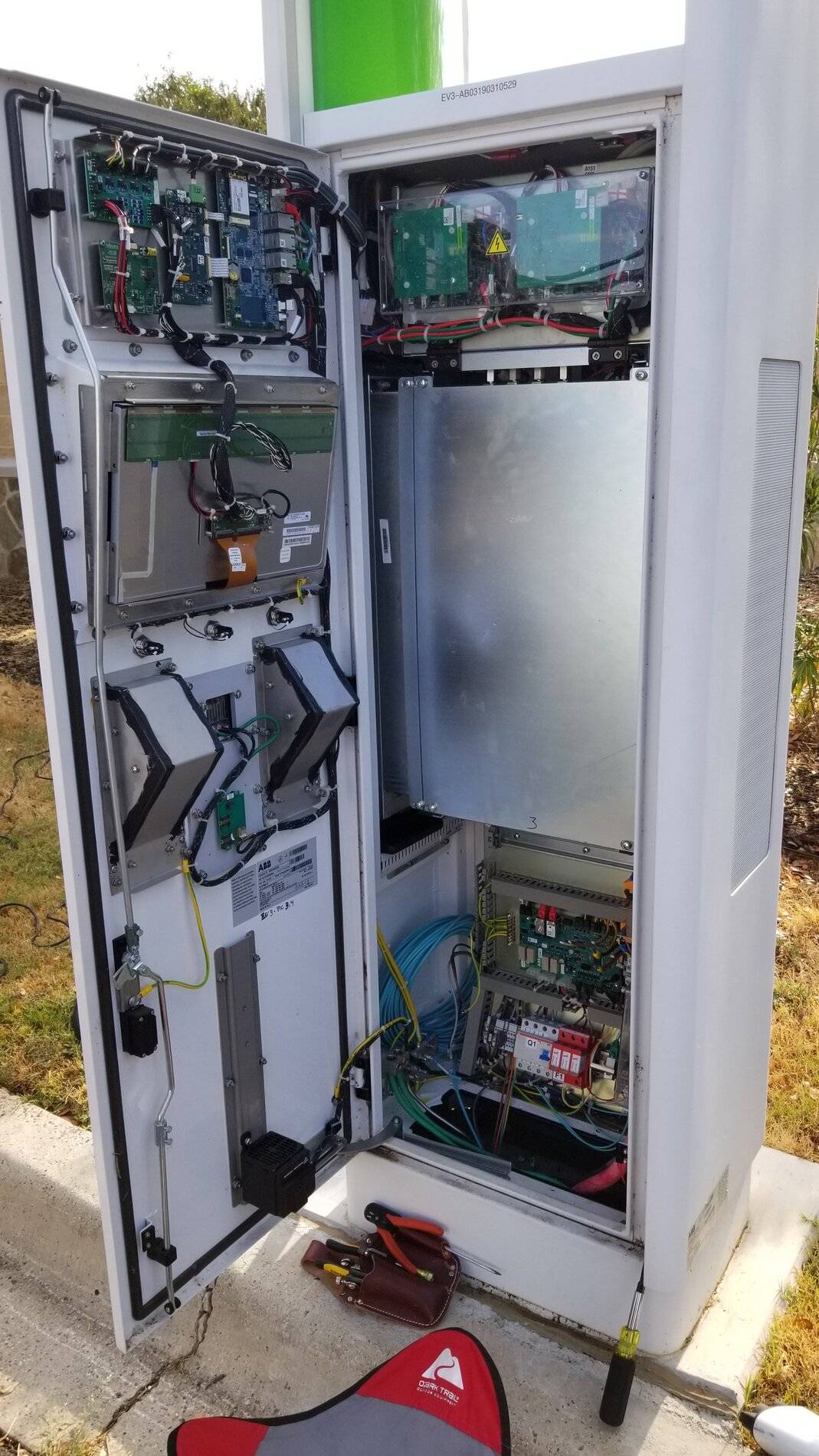

I was cruising by Sam's today as the Electrify America chargers were being serviced. Being the inquisitive sort, I invited myself to chat and take a few pictures of the guts of these Italian-made chargers. I have attached the pictures and some info from the abb.com web site. The DC Cables coming in to the bottom of the charge post are a sight to behold, but you know they would have to be big to handle 500 amps!











Attachments

thenaimis

Well-Known Member
Joined
Apr 21, 2020
Messages
116
Reaction score
173
Location
Texas
Vehicles
Taycan Turbo
Country flag
Did you happen to ask what was wrong with it? I'm kind of curious what their failure modes are, but I'm willing to bet the failure modes are 99% in the digital electronics or back-end.

OP
bushmg

bushmg

Active Member
First Name
Michael
Joined
Jun 3, 2020
Messages
26
Reaction score
19
Location
Fort Worth, Texas
Vehicles
2020 Taycan, 2017 911 Endurance Racing Edition,
Country flag
  • Thread starter
  • Thread Starter
  • #3
Did you happen to ask what was wrong with it? I'm kind of curious what their failure modes are, but I'm willing to bet the failure modes are 99% in the digital electronics or back-end.
No, sorry, I didn't. All the tech would say was that #2 was having some issues.
