Porsche mobile charger - slow charging

Showders

Member
First Name
James
Joined
Jan 8, 2021
Messages
17
Reaction score
9
Location
Uk
Vehicles
Taycan 4s
Country flag

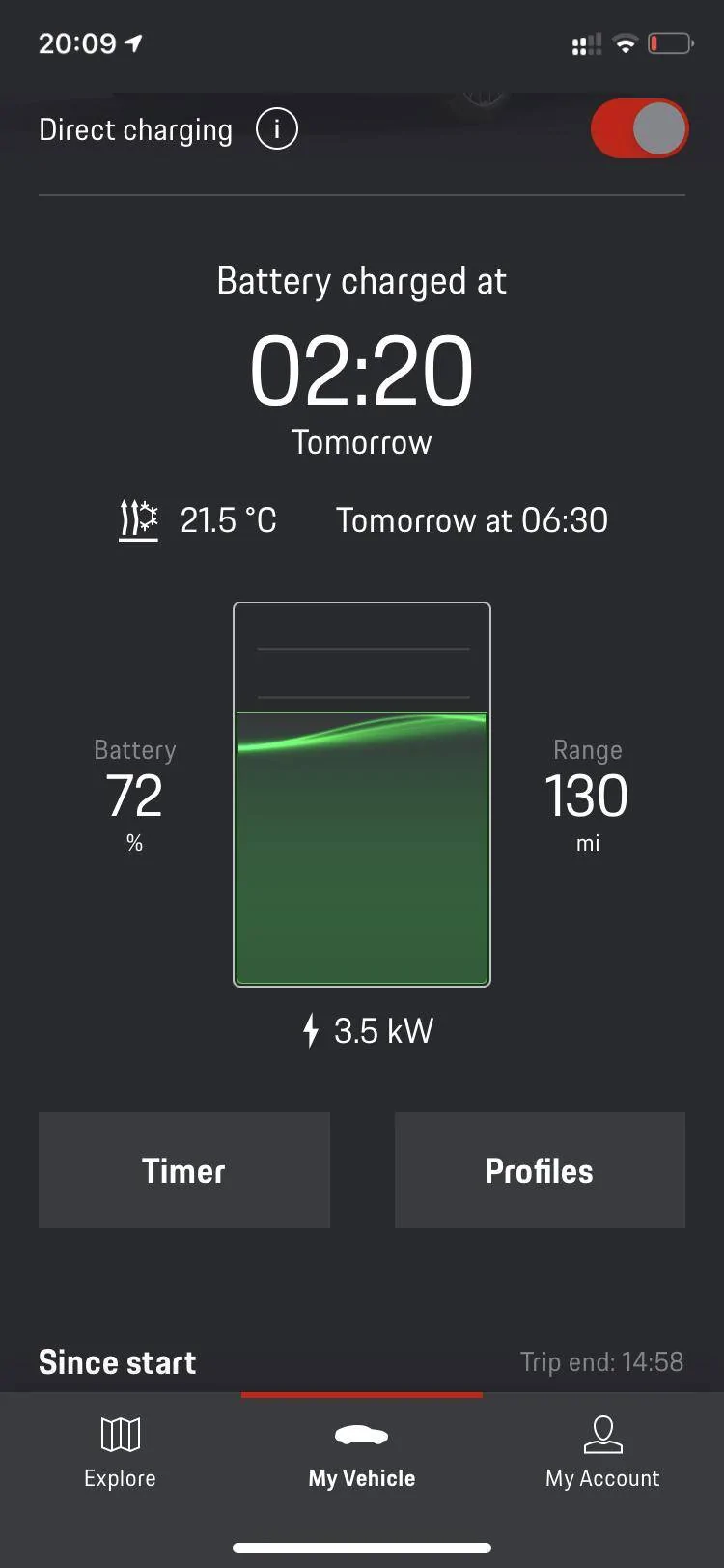

So I’ve purchased the case, wired up the charger and I’m only getting 0.1 mpm - is this as good as it gets with this charger?



Advertisement



Dee

Well-Known Member
First Name
Dee
Joined
Dec 14, 2018
Messages
1,906
Reaction score
2,125
Location
The Netherlands
Vehicles
Yes.
Country flag
What's the voltage and max amps?
Amps are adjustable in the charger menu.


Dee

Well-Known Member
First Name
Dee
Joined
Dec 14, 2018
Messages
1,906
Reaction score
2,125
Location
The Netherlands
Vehicles
Yes.
Country flag
I assume it's 230V?
In the menu of the charger you can set the max amps, mine is 10A (although my fuses are 16A).
So 230×10=2300W or 2,3kW.
That's the max for 1-phase.

OP
OP

Showders

Member
First Name
James
Joined
Jan 8, 2021
Messages
17
Reaction score
9
Location
Uk
Vehicles
Taycan 4s
Country flag
I assume it's 230V?
In the menu of the charger you can set the max amps, mine is 10A (although my fuses are 16A).
So 230×10=2300W or 2,3kW.
That's the max for 1-phase.
I see,sorry

yes it’s connected to my 240v house system and I’ve set it to 16amp on the charger


Dee

Well-Known Member
First Name
Dee
Joined
Dec 14, 2018
Messages
1,906
Reaction score
2,125
Location
The Netherlands
Vehicles
Yes.
Country flag
I see,sorry

yes it’s connected to my 240v house system and I’ve set it to 16amp on the charger
Ok, that's the max then.

Another thing, you said it's 16A max (that's cuz you attached a 16A blue plug to it) but looking at your house system, are you sure your line is suitable for continues 16A?
What capacity is your fuse/breaker if I may ask?

Last edited:
OP
OP

Showders

Member
First Name
James
Joined
Jan 8, 2021
Messages
17
Reaction score
9
Location
Uk
Vehicles
Taycan 4s
Country flag
Ok, that's the max then.

Another thing, you said it's 16A max (that's cuz you attached a 16A blue plug to it) but looking at your house system, are you sure your line is suitable for continues 16A?
What capacity is your fuse/breaker if I may ask?
As your saw from my first answer, electrics is not me best thing, I’ve got a 32amp hot tub as well so I guess I have enough! I let a Sparkie take care of it, I just plug in 😂

  • Like
Reactions: Dee
OP
OP

Showders

Member
First Name
James
Joined
Jan 8, 2021
Messages
17
Reaction score
9
Location
Uk
Vehicles
Taycan 4s
Country flag
Although I read on here some have connected to a 32amp and get 7kw? Is that possible?


Dee

Well-Known Member
First Name
Dee
Joined
Dec 14, 2018
Messages
1,906
Reaction score
2,125
Location
The Netherlands
Vehicles
Yes.
Country flag
Although I read on here some have connected to a 32amp and get 7kw? Is that possible?
Yes, they have the blue 32A single phase cord/plug.
230V×32A=7400kW or 7,4kW max.
The charger recognizes the kind of cord that's attached to it and limits the current accordingly.
BUT....
It doesn't see your house system and breakers.
Most electrical fires with electric cars start due to an underrated connection and/or low quality Chinese charger, that's why I asked.
Get your system checked by an electrician.
I can not emphasize this enough.

Last edited:

mikeyyn

Well-Known Member
First Name
Michael
Joined
Aug 28, 2020
Messages
91
Reaction score
54
Location
UK
Vehicles
Taycan 4S. BMW X5, Golf GTi,
Country flag
According to the standard specs for the UK Taycan, the lead from the commando socket should be 32A. So you should get up to 7.2 kW. However, the cable that goes into your socket looks a bit thin, what you might expect for a 13A socket, or maybe even less (though I am by no means an expert). And BTW, the 32A commando single phase socket is blue.

  • Like
Reactions: Dee
OP
OP

Showders

Member
First Name
James
Joined
Jan 8, 2021
Messages
17
Reaction score
9
Location
Uk
Vehicles
Taycan 4s
Country flag
According to the standard specs for the UK Taycan, the lead from the commando socket should be 32A. So you should get up to 7.2 kW. However, the cable that goes into your socket looks a bit thin, what you might expect for a 13A socket, or maybe even less (though I am by no means an expert). And BTW, the 32A commando single phase socket is blue.
thanks, that’s what I was expecting, I told the electrician I needed a 32 amp socket, when he turned up and looked at my blue lead, he said it’s only 16amp so he wired for that! It does say 16amp on it to be fair! Should have checked before! 🙈


mikeyyn

Well-Known Member
First Name
Michael
Joined
Aug 28, 2020
Messages
91
Reaction score
54
Location
UK
Vehicles
Taycan 4S. BMW X5, Golf GTi,
Country flag
Last edited:
OP
OP

Showders

Member
First Name
James
Joined
Jan 8, 2021
Messages
17
Reaction score
9
Location
Uk
Vehicles
Taycan 4s
Country flag
  • Like
Reactions: Dee

Dee

Well-Known Member
First Name
Dee
Joined
Dec 14, 2018
Messages
1,906
Reaction score
2,125
Location
The Netherlands
Vehicles
Yes.
Country flag
According to the standard specs for the UK Taycan, the lead from the commando socket should be 32A. So you should get up to 7.2 kW. However, the cable that goes into your socket looks a bit thin, what you might expect for a 13A socket, or maybe even less (though I am by no means an expert). And BTW, the 32A commando single phase socket is blue.
My mistake.
I have corrected this in my post.
Two types of single phase BLUE plugs (3 pins): 16 and 32Amp.
One type of 3-phase RED plug (5 pins): 3×32Amp.
