Taycan 4s Emblem picture on the car

[lcarron]

Hello,

I bought my car without the Taycan 4S emblem because I went full car PPF.
I just received the emblem and want to install it but I need some measurements.
Can one of you take a close-up picture incorporating the PORSCHE letter as well?
I will use it as a template to place it.

Thank you in advance.

Sponsored



[ciaranob]

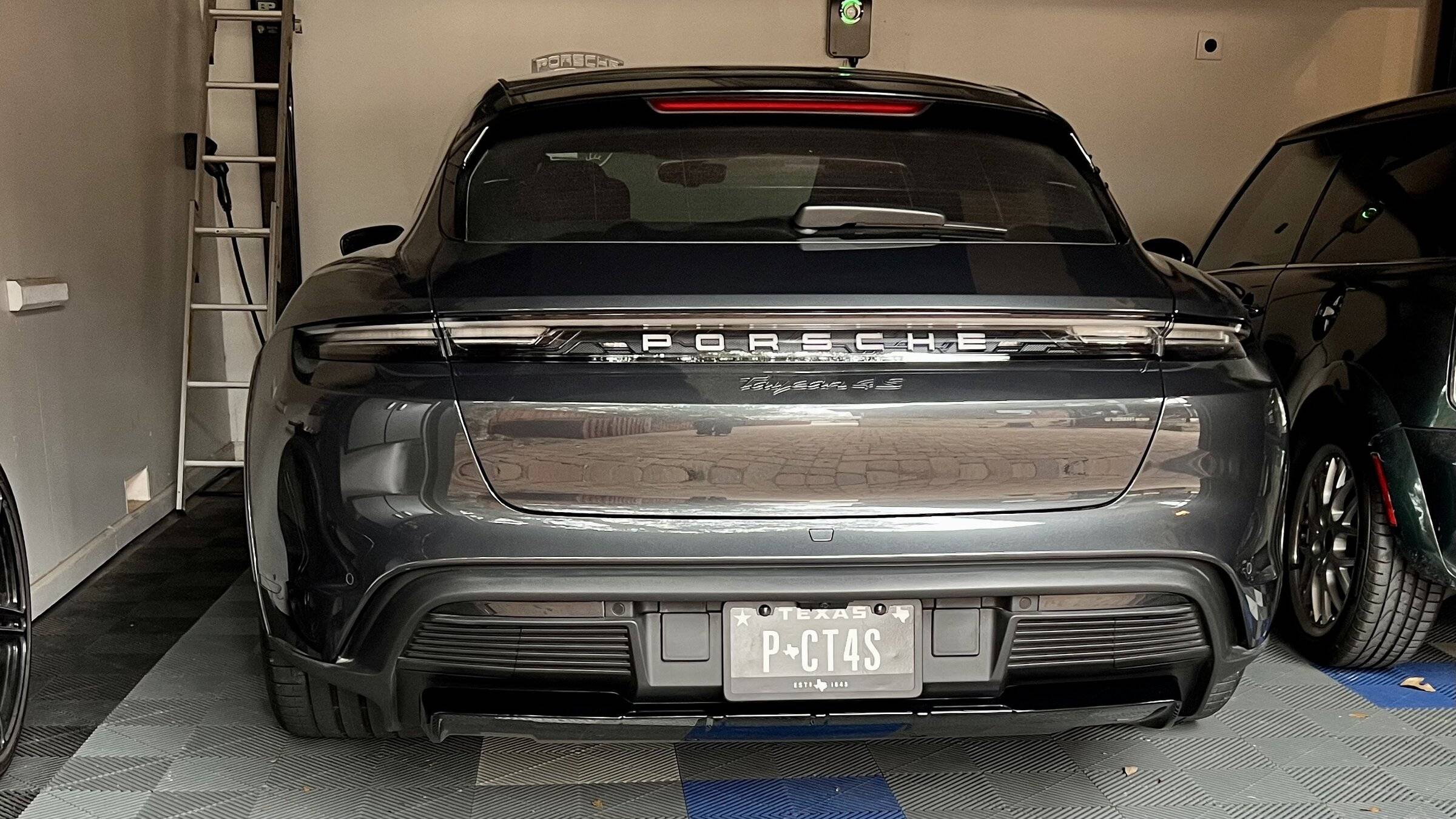

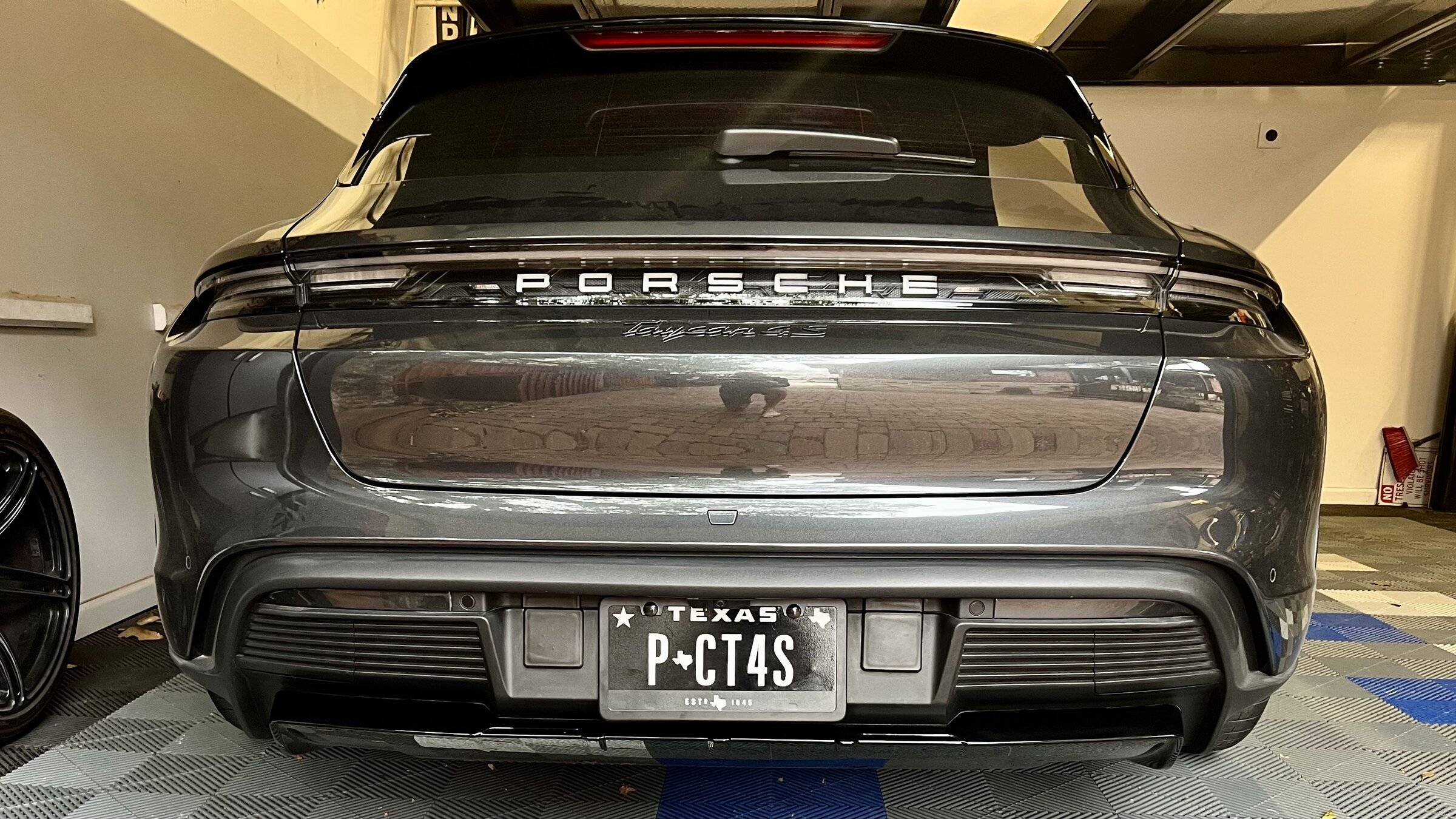

Here are a couple of shots of the rear of my CT if useful - first more 'square' than second- lighting not the best - others I'm sure will add theirs:

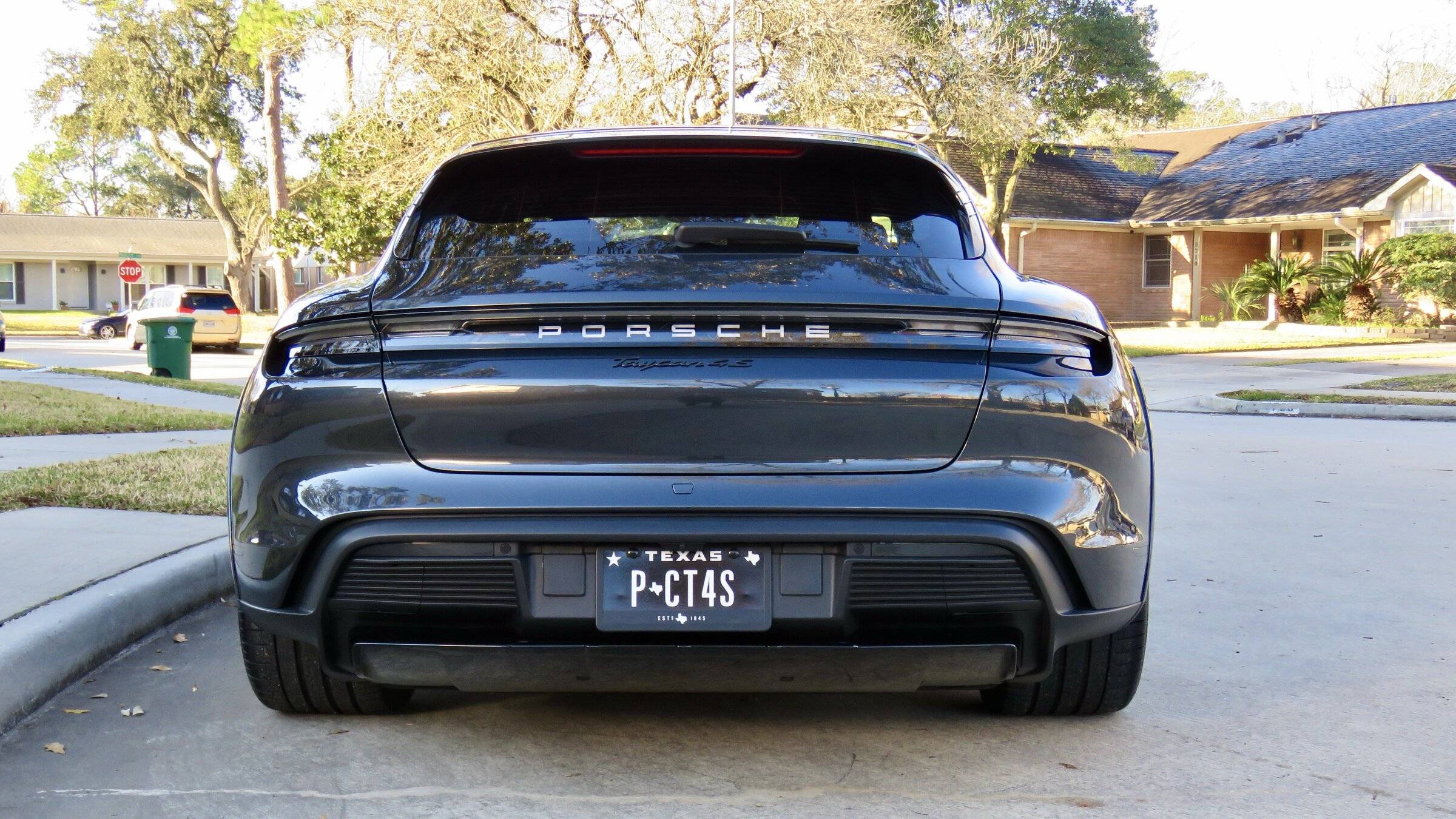

EDIT - here is another a little more square than last:



[Jayyvr890]

The best way to reinstall the emblem is with a template. SunCoast sells the factory ones for about 150 bucks. It's very hard to get the spacing right just doing it by hand.



[CygnusX-1]

Here are a couple of shots of the rear of my CT if useful - first more 'square' than second- lighting not the best - others I'm sure will add theirs:

EDIT - here is another a little more square than last:

with plate like that, who needs a badge! well done.



[lcarron]

The best way to reinstall the emblem is with a template. SunCoast sells the factory ones for about 150 bucks. It's very hard to get the spacing right just doing it by hand.

I agree but $150 for a one-time use is a bit step.



[lcarron]

Here are a couple of shots of the rear of my CT if useful - first more 'square' than second- lighting not the best - others I'm sure will add theirs:

EDIT - here is another a little more square than last:

Thanks a ton, but so sorry to ask.

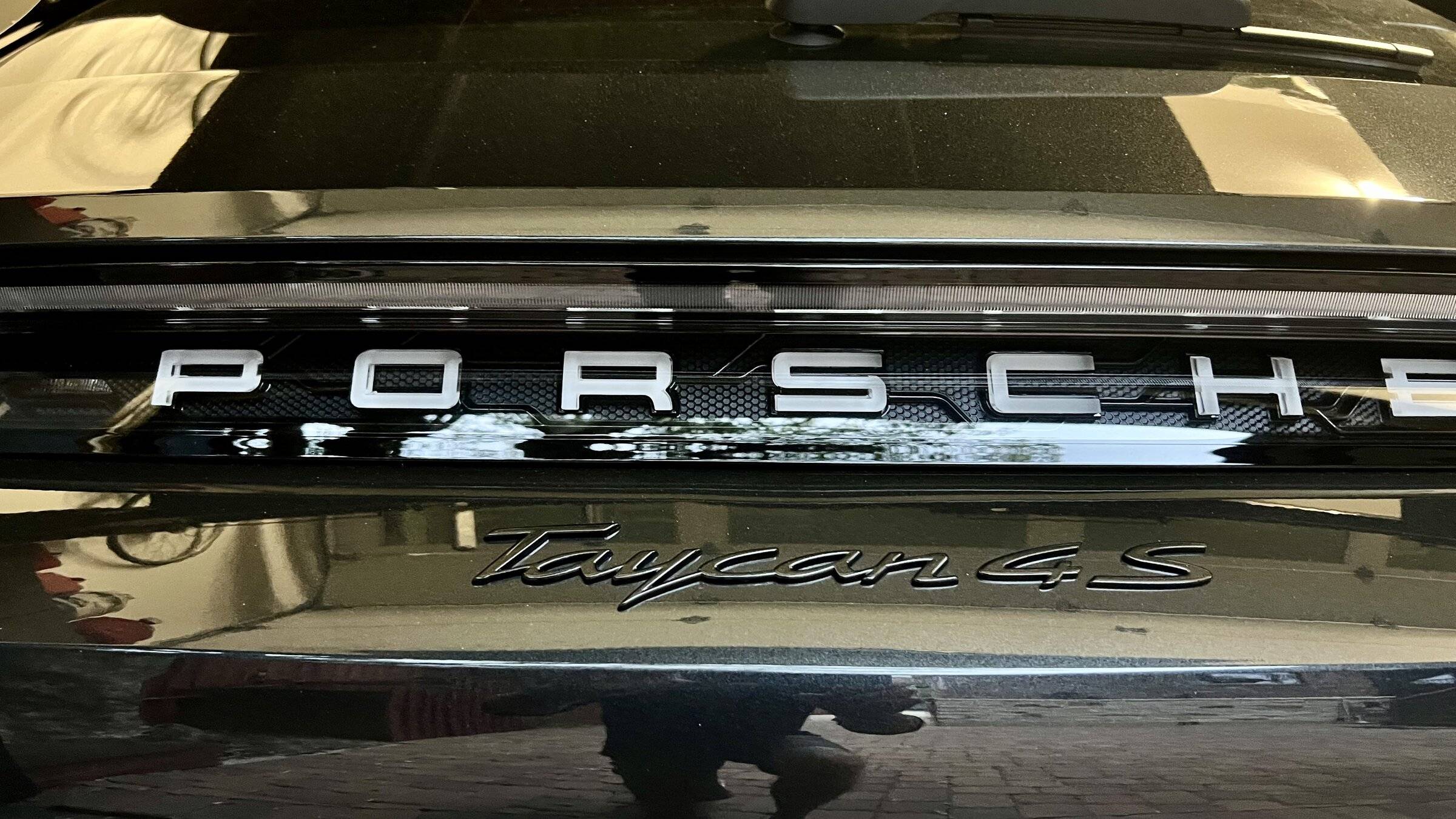

Can you do a close-up as shown in my attachment below?



[inkatouring]

Two suggestions:

(1) The dealer you bought the car from might install it for you (since they might have the template).

(2) If not, use blue painter's tape to block out the area, especially the bottom of the Taycan 4 S, measuring down from the PORSCHE. Then the sides and top. It helps keep your letters level and it good to mark spacing.



[ciaranob]

Thanks a ton, but so sorry to ask.
Can you do a close-up as shown in my attachment below?

Can do - I just grabbed some pics from my other threads here but if no other's provide I can add this AM.

EDIT: OK here you go - apologies as light conditions right now not optimal and of course my badge was colored body color from factory !



[lcarron]

Thanks everyone

i will go with the dealer route as they need to fix a ton of things.



[lcarron]

Can do - I just grabbed some pics from my other threads here but if no other's provide I can add this AM.

EDIT: OK here you go - apologies as light conditions right now not optimal and of course my badge was colored body color from factory !

I have the same color.



[blown383]

I am in the same situation and was wondering what the dealership charged to install the logos?



[lcarron]

I am in the same situation and was wondering what the dealership charged to install the logos?

They charged me $200 as they needed to remove some parts to lock the template to center the emblem. A bit crazy!!



[blown383]

For $200 I’ll just buy the template, do it myself, and resell the template to recoup some of fit cost. Thank you for the quick response.



[chenner]

I have the template that I'd be willing to sell for $100 shipped.

I had my car PPF'ed so ordered it without the emblems on so that I can lay it overtop the PPF.



[Frankcan]

Well, I just stuck my own on, used a photo from a stock model, I doubt anyone will ever forensically examine if its any millimetres difference had it beed added at the factory
