What level are you? Post your garage charging plans or what you've done

What EV level are you?

  • Level 4 - I don't use my electric water heater any more - so I'll use it's plug for my EV

    Votes: 0 0.0%

  • Total voters
    205

daveo4EV

Well-Known Member
First Name
David
Joined
Jan 28, 2019
Threads
160
Messages
5,793
Reaction score
8,599
Location
Santa Cruz
Vehicles
Cayenne Hybrid, 911(s) GT3/Convertable
Country flag

Marshall

Well-Known Member
Joined
Oct 18, 2018
Threads
14
Messages
116
Reaction score
79
Location
Los Angeles
Vehicles
2020 Taycan 4S; 2021 Macan S
Country flag
you've read the post - now declare your EV charging level!!

see the following post for your level choices…

https://www.taycanforum.com/forum/t...age…for-those-that-wish-to-over-do-it-….2343/
I just had a JuiceBox 48 installed. My car is charging at 10.5kw (60 amp breaker) and you can actually set the timer with the app. Tell the charger when to start and when to stop--it works!! You can still keep your charging level profile that you set up in the car--mine is at 85%. If only Porsche could have come up with something so simple.

OP
OP
daveo4EV

daveo4EV

Well-Known Member
First Name
David
Joined
Jan 28, 2019
Threads
160
Messages
5,793
Reaction score
8,599
Location
Santa Cruz
Vehicles
Cayenne Hybrid, 911(s) GT3/Convertable
Country flag
thanks for the report @Marshall this is the 1st confirmed report of 60 amp JuiceBox w/Taycan - I LOVE it - this is great!!


Marshall

Well-Known Member
Joined
Oct 18, 2018
Threads
14
Messages
116
Reaction score
79
Location
Los Angeles
Vehicles
2020 Taycan 4S; 2021 Macan S
Country flag
thanks for the report @Marshall this is the 1st confirmed report of 60 amp JuiceBox w/Taycan - I LOVE it - this is great!!
This is the new JuiceBox. It is the one that was shown at CES in January. The cost is about $200 less than the Clipper Creek as well. $639.00


struther

Well-Known Member
First Name
Brad
Joined
Jan 16, 2020
Threads
8
Messages
408
Reaction score
460
Location
Toronto
Vehicles
Nissan GTR, Nissan 350z
Country flag
My options were limited. I went with a 7.2 charger in my condo parking garage (still waiting for installation) - it hard to be hard wired. I will have a 14-50 receptacle installed at my parents’ house for visits there and use the PMCC. If I was in a house, I would have totally gone for the max.



OP
OP
daveo4EV

daveo4EV

Well-Known Member
First Name
David
Joined
Jan 28, 2019
Threads
160
Messages
5,793
Reaction score
8,599
Location
Santa Cruz
Vehicles
Cayenne Hybrid, 911(s) GT3/Convertable
Country flag
@struther I've updated the poll -your option of existing 32 amp charger is a great choice - you are level 4.5!


porsche_coyote

Well-Known Member
First Name
Wiley
Joined
Nov 23, 2019
Threads
24
Messages
366
Reaction score
529
Location
Washington, DC USA
Vehicles
VW ID.4 AWD Pro S, BMW i3
Country flag
Hmmm, I don't see my option. I have 2 EVSEs installed on a single 50 Amp circuit, using sharing. So, 9.6 kW, not 7.2. Except when it's 4.8 if my wife is charging her car at the same time...


Toby Pennycuff

Well-Known Member
First Name
Toby
Joined
Jun 12, 2019
Threads
5
Messages
172
Reaction score
204
Location
Dallas, TX
Vehicles
Porsche 911S, Porsche 930, Porsche GT3 Cup, Taycan 4S
Country flag
I didn't see an option for a Level 3 EVSE at home Dave!



OP
OP
daveo4EV

daveo4EV

Well-Known Member
First Name
David
Joined
Jan 28, 2019
Threads
160
Messages
5,793
Reaction score
8,599
Location
Santa Cruz
Vehicles
Cayenne Hybrid, 911(s) GT3/Convertable
Country flag

Pozuelo

Well-Known Member
First Name
Roberto
Joined
Feb 14, 2020
Threads
89
Messages
653
Reaction score
873
Location
Madrid, Spain
Vehicles
2020 Taycan Turbo S, 2018 E63S Estate, 2023 A45S
Country flag
I have wired my PMCC with a very long 125 meter, 3 phase, neutral and earth insulated outdoor wiring exclusive of all the rest of my house and garage. Result: 22kw available and the possibility to charge from my solar installation (30kw).

Last edited:

feye

Well-Known Member
Joined
Sep 16, 2019
Threads
16
Messages
2,194
Reaction score
1,657
Location
Shenzhen
Vehicles
Porsche Taycan 4S+ 2020
Country flag
Today, I ran the battery down to less than half a percent.

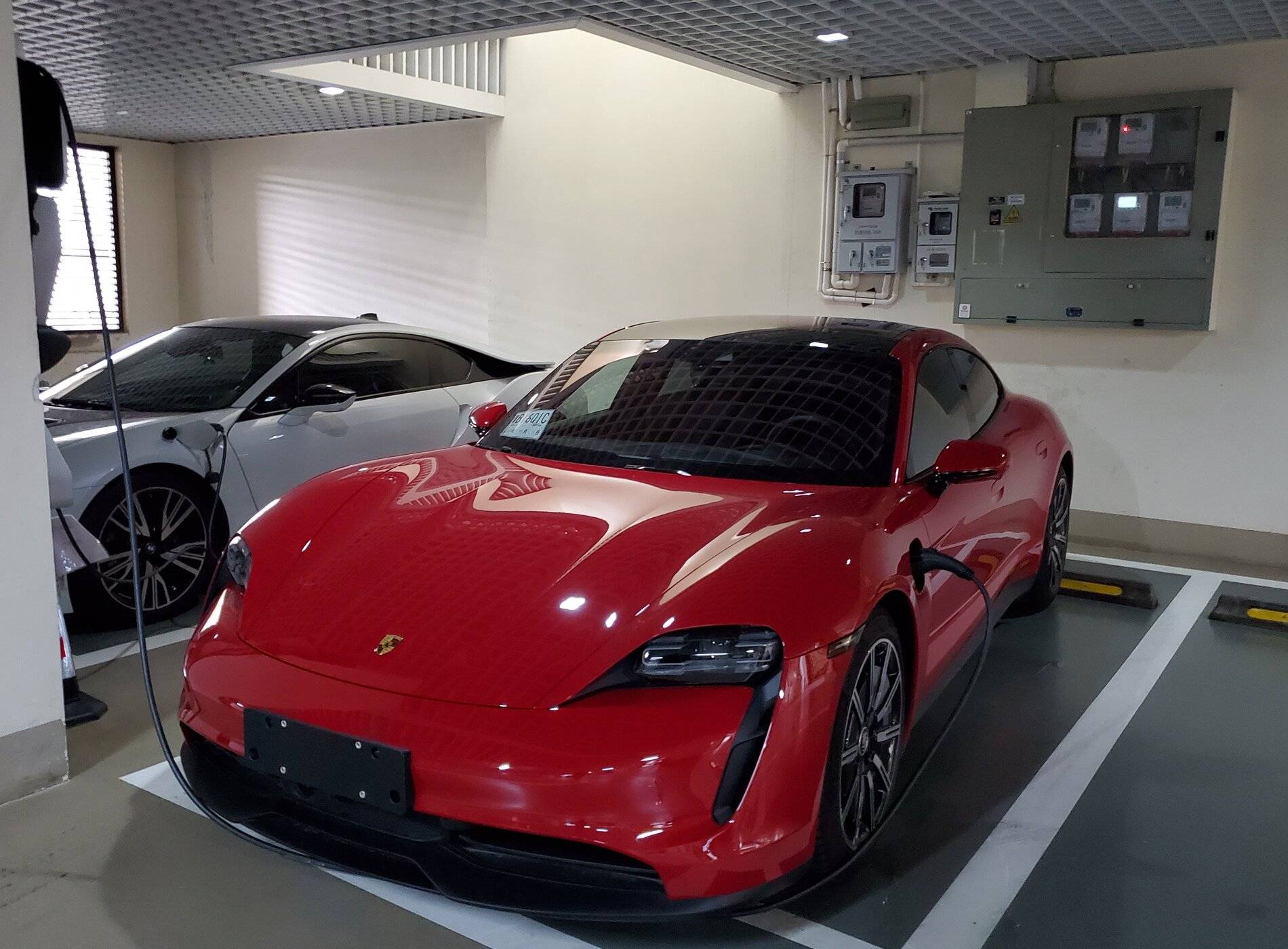

Porsche Taycan What level are you?  Post your garage charging plans or what you've done 20200910_155827

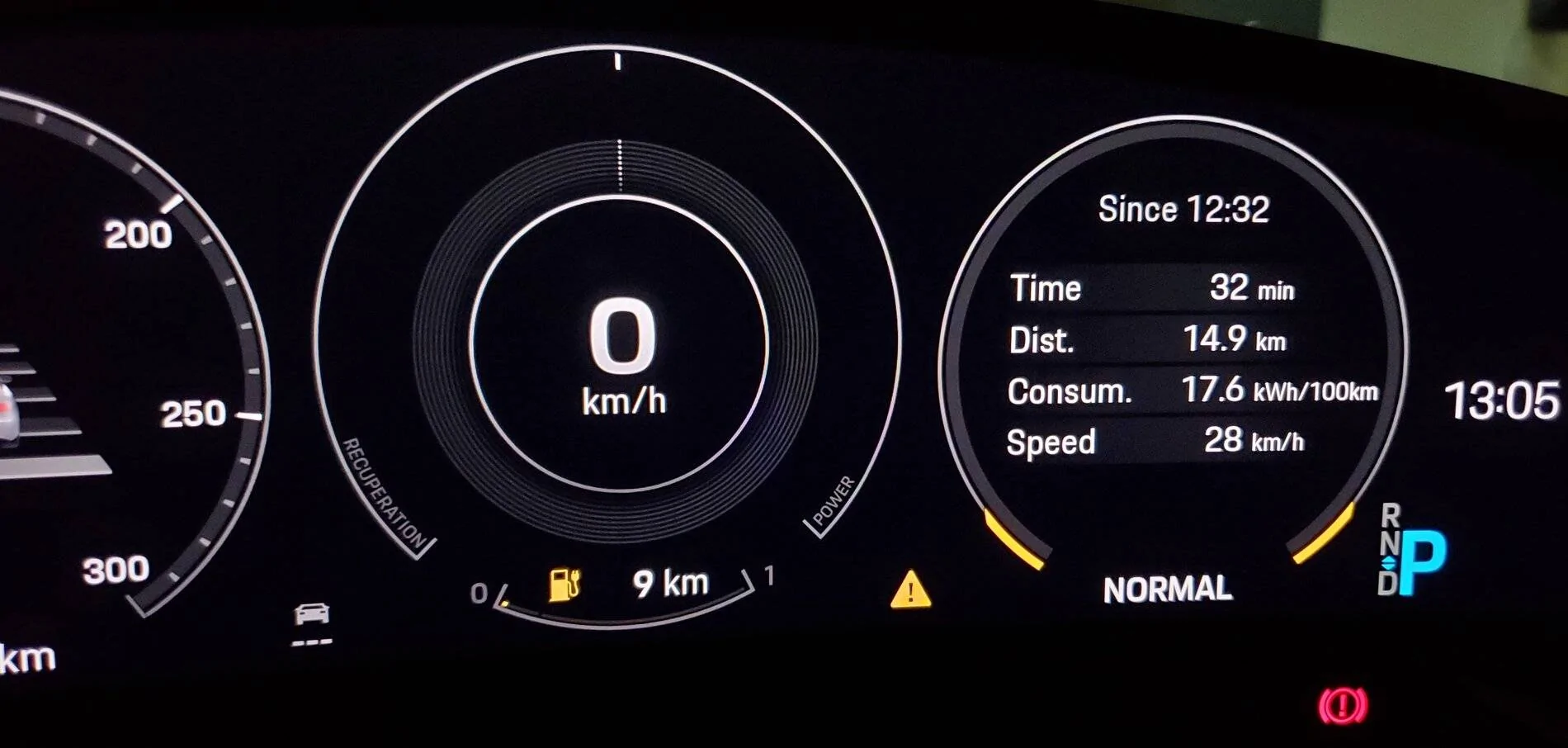

Porsche Taycan What level are you?  Post your garage charging plans or what you've done 20200910_130535

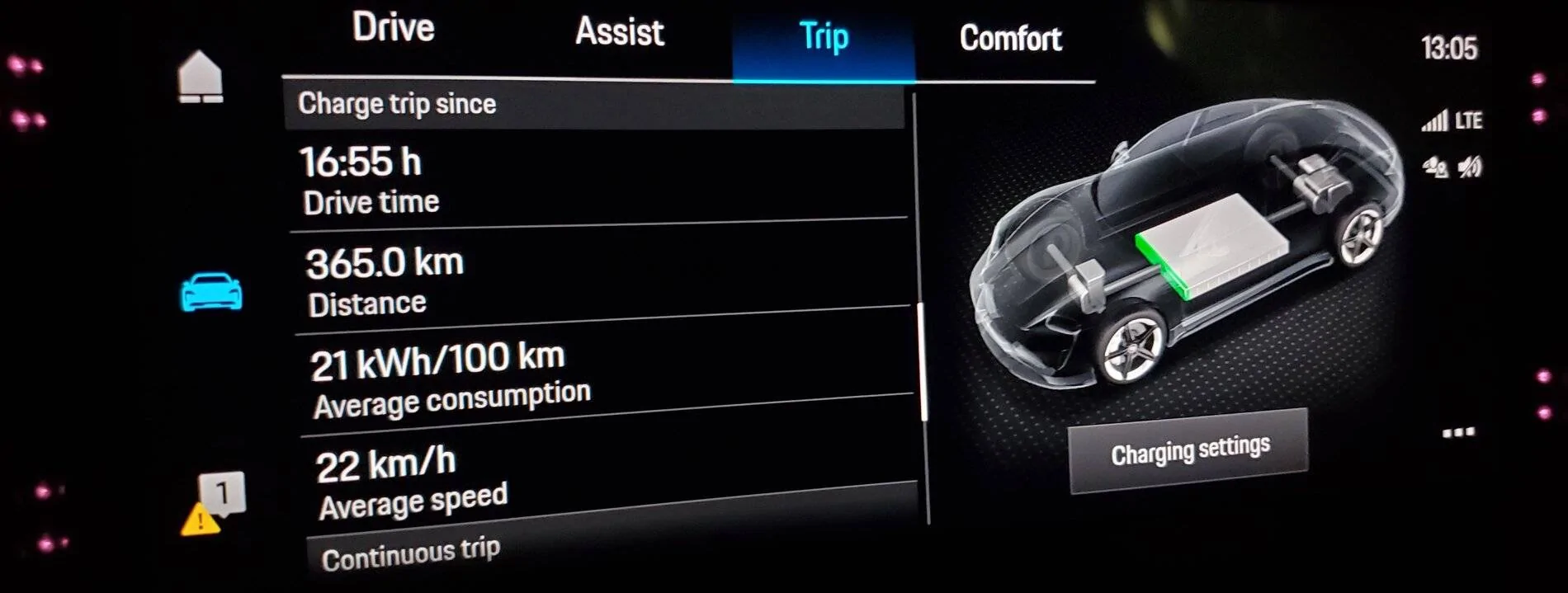

Porsche Taycan What level are you?  Post your garage charging plans or what you've done 20200910_130520

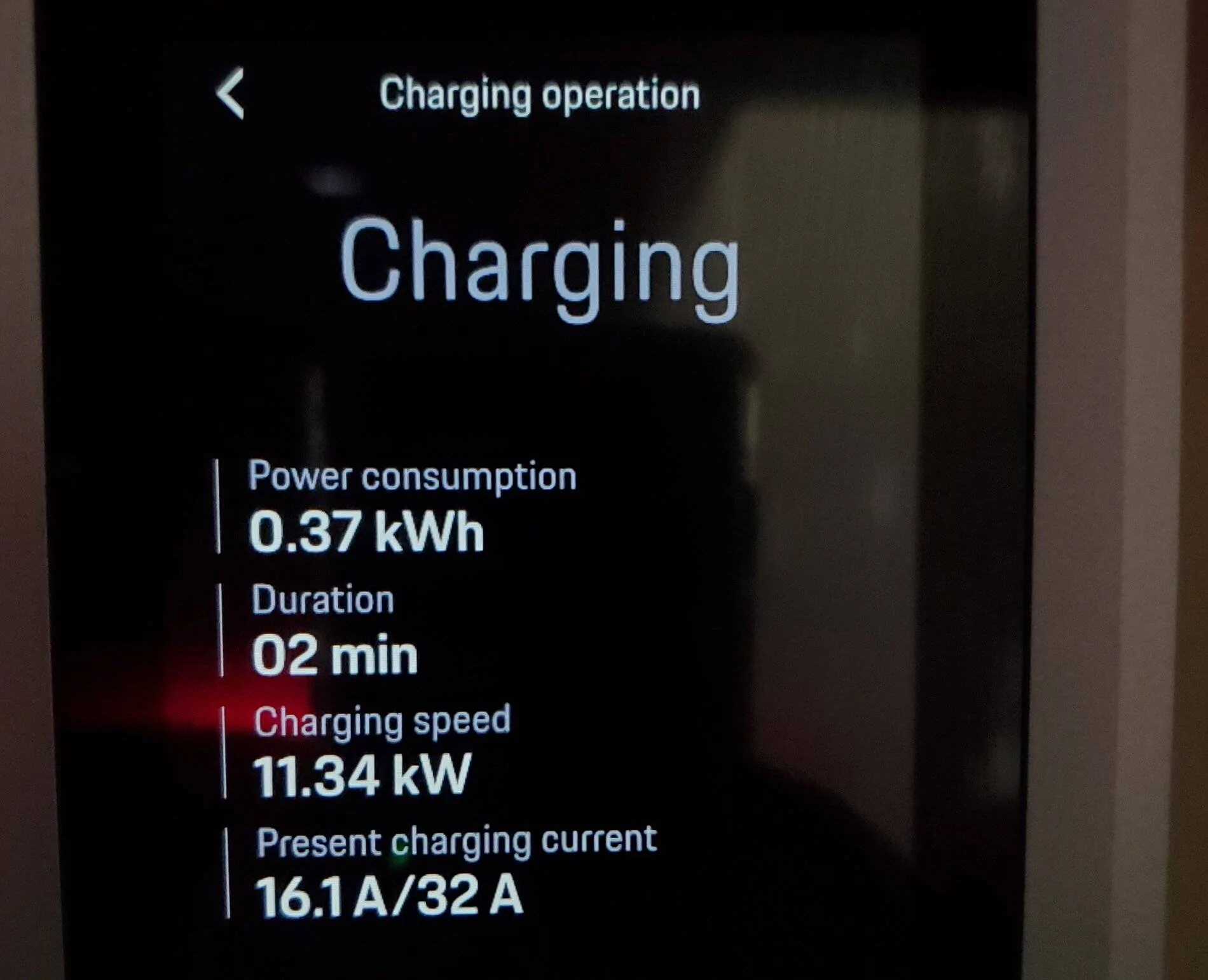

Porsche Taycan What level are you?  Post your garage charging plans or what you've done 20200910_131928

I want to see, how much goes into for 100% SoC and how long it takes.


feye

Well-Known Member
Joined
Sep 16, 2019
Threads
16
Messages
2,194
Reaction score
1,657
Location
Shenzhen
Vehicles
Porsche Taycan 4S+ 2020
Country flag
Follow up, after charging finished:

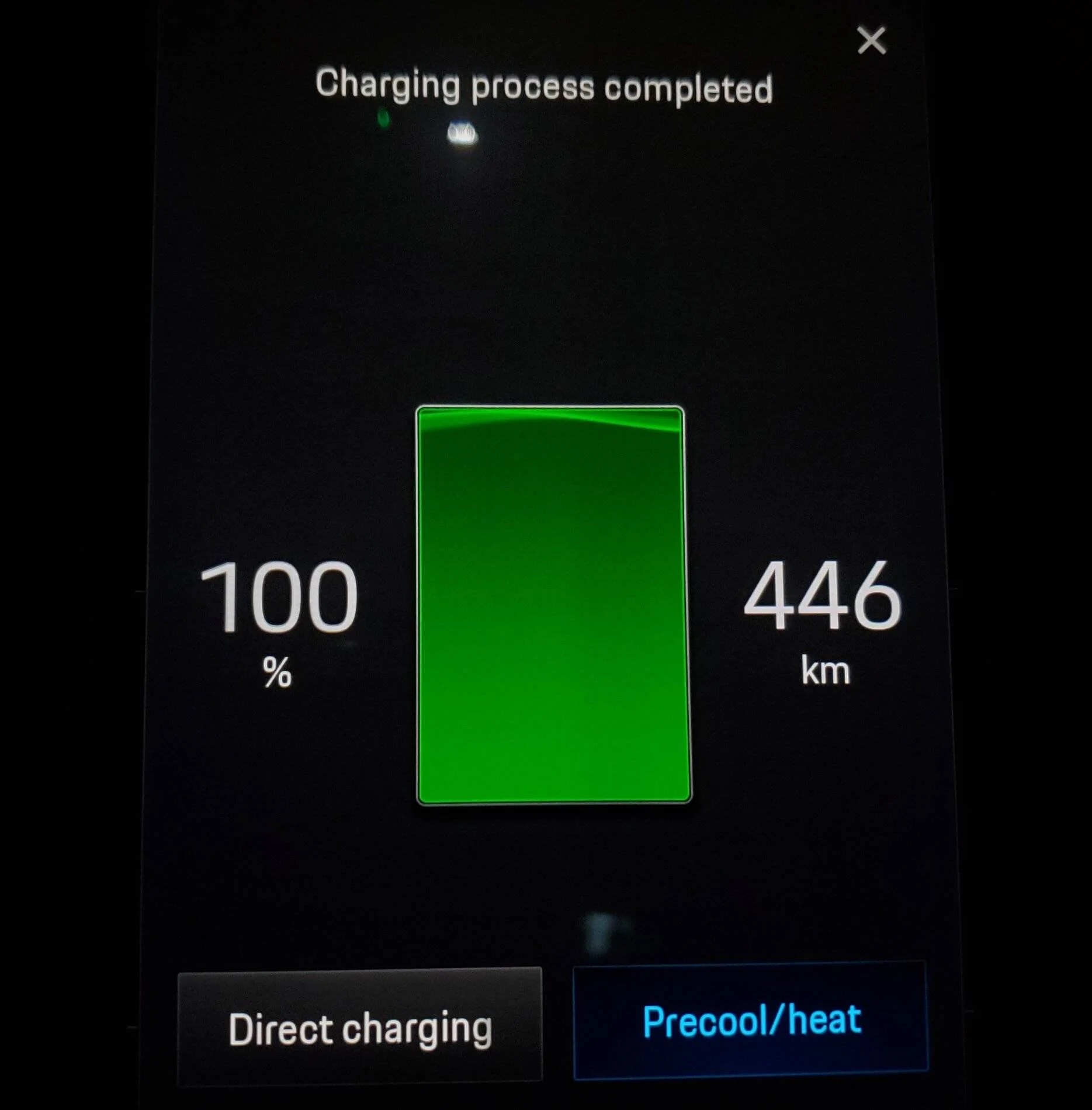

Porsche Taycan What level are you?  Post your garage charging plans or what you've done 20200910_221023

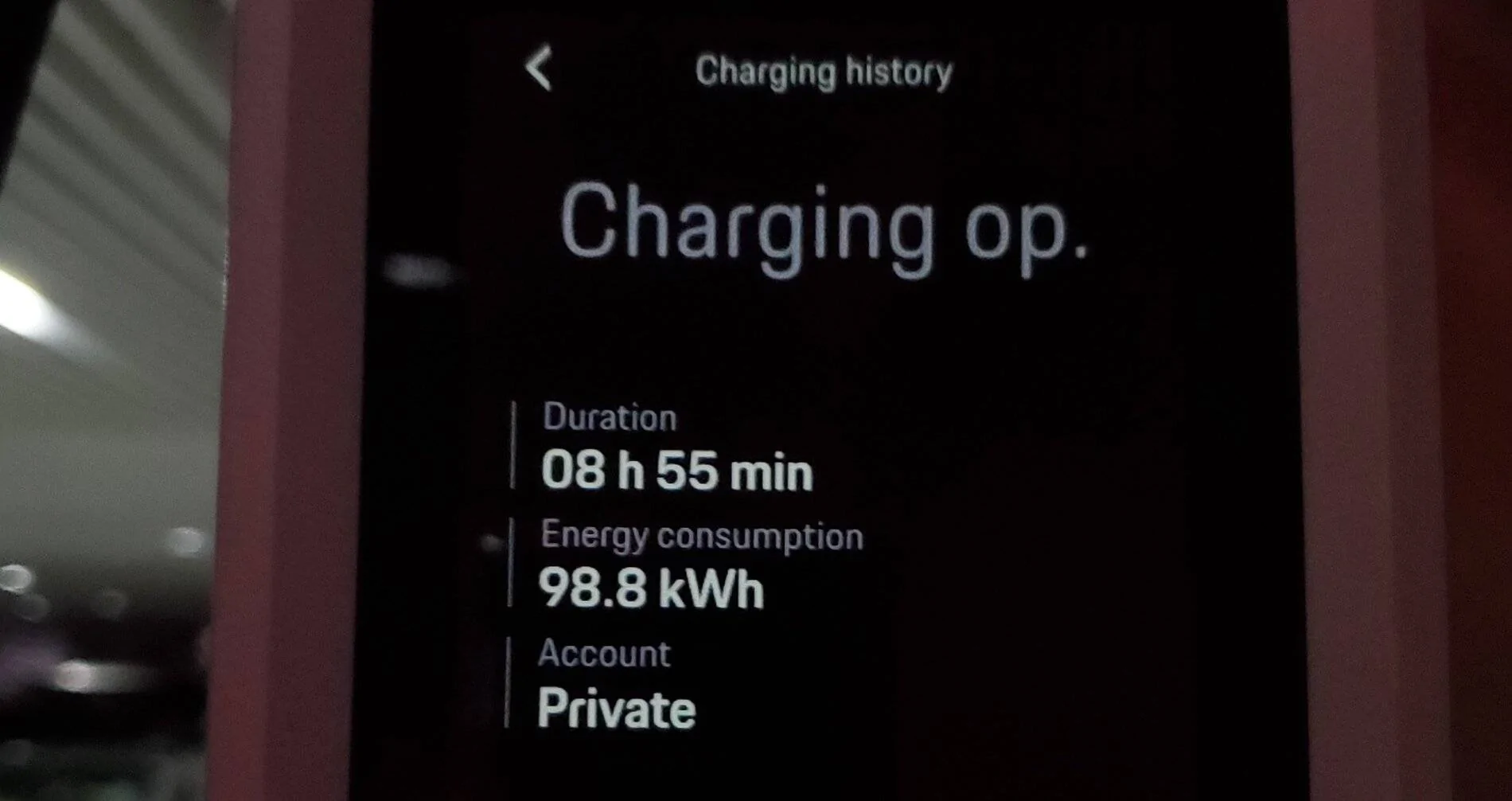

Porsche Taycan What level are you?  Post your garage charging plans or what you've done 20200910_221347


The grid power supply reports 101.81 kWh consumed, that is 3 kWh (3%) more than what the charger reports. I assume, that 98.8 kWh is what the charger measures on the output. So we still don't know how much kWh went into the battery and how much was consumed by the AC to DC converter in the car.

On a side note: After charging the reported 446km changed to 401km range this morning. Also not quite sure why over night the BC changed his mind...

OP
OP
daveo4EV

daveo4EV

Well-Known Member
First Name
David
Joined
Jan 28, 2019
Threads
160
Messages
5,793
Reaction score
8,599
Location
Santa Cruz
Vehicles
Cayenne Hybrid, 911(s) GT3/Convertable
Country flag
level 7 option added - to allow those with 19.2 kW on their MY’2021 to express their true selves!!


PanameraFrank

Well-Known Member
First Name
Frank
Joined
Sep 6, 2019
Threads
14
Messages
912
Reaction score
1,490
Location
Seattle
Vehicles
Taycan 4S
Country flag
I'm on the lowest possible Level 2, a 16a on a 20a breaker, and it works perfectly for me. I get 30-40% charge overnight.

OP
OP
daveo4EV

daveo4EV

Well-Known Member
First Name
David
Joined
Jan 28, 2019
Threads
160
Messages
5,793
Reaction score
8,599
Location
Santa Cruz
Vehicles
Cayenne Hybrid, 911(s) GT3/Convertable
Country flag
@PanameraFrank - for those that wish to follow in your foot steps - what EVSE are you using and what charge rate does the Taycan report on the center console lower screen while charging? (both the mpm & kw number if you can please)

oh and please vote - I don’t see any votes for level 2 :)
