Model what?
Hypothetically, you want to design a car and try out different geometries. Instead of building a full size car, you build a quarter size model. Test that in the wind tunnel. Providing the geometries don't change, scale it up. One of the reasons for dimensionless parameters is to allow scaling. It's done all the time with aircraft and boats.

Do I have to provide authorities on modeling and scaling?

I'm guessing F1 doesn't do this.
Sponsored



Kayone73

Well-Known Member
First Name
Ed
Joined
Apr 19, 2021
Threads
41
Messages
659
Reaction score
725
Location
Orange County, CA
Vehicles
2021 Taycan CT4S, Kia Telluride EX, Tesla Model Y
Country flag

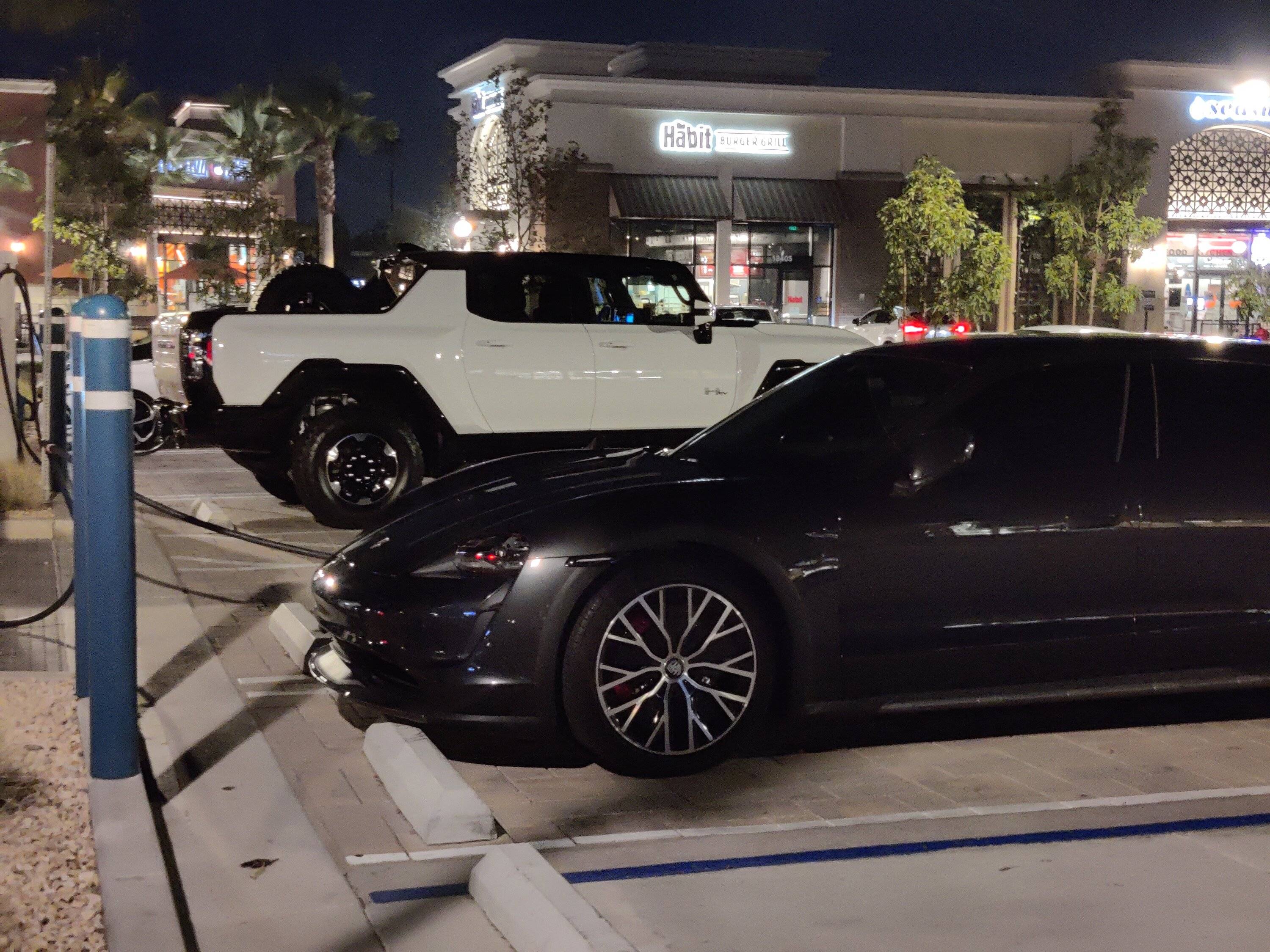

In lifted mode, the top of the Taycan didn’t reach the bottom of the Hummer’s windows. And I was staring up into the wheel well from the driver’s seat. What a mammoth vehicle.

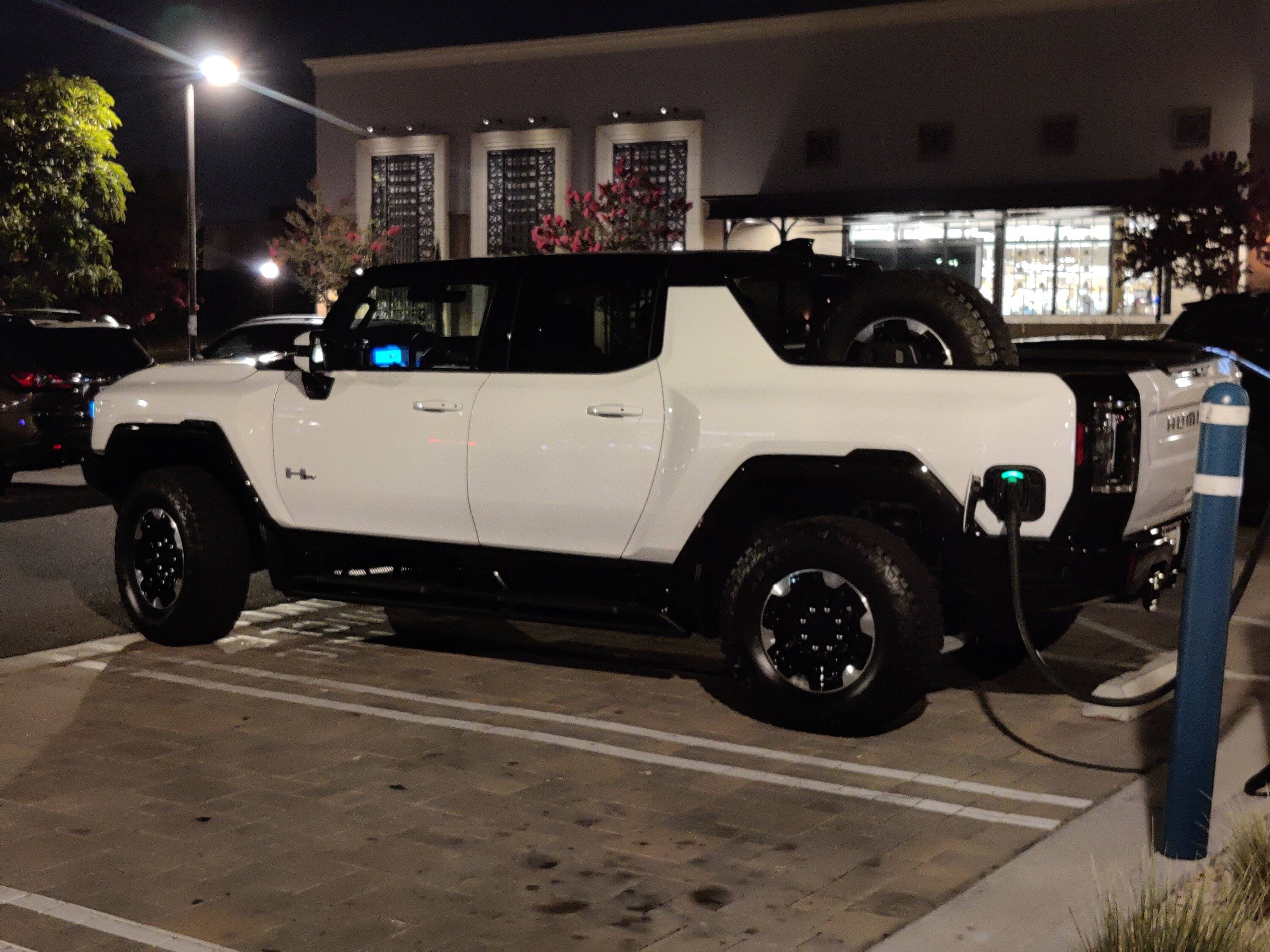

I had an encounter with one at a local EV watering hole. What a comically enormous monster.
