AC/Home Charging Issues ( both ports )

RichJ

Well-Known Member
First Name
Rich
Joined
Jun 27, 2021
Threads
4
Messages
65
Reaction score
69
Location
Villanova, PA
Vehicles
2021 Taycan 4S, 2015 BMW228ix, 2021 Audi Q7
Country flag
Update - charging issue resolved by replacing the AC charging unit. It took 3 weeks in total. I week for them to keep the car and diagnostic ( seems long ) and then 2 weeks to get the part and replace it.

I took the car back after the diagnostics.
Congratulations on getting your car back. Enjoy!
Sponsored



tchvil

New Member
First Name
Tchvil
Joined
Sep 30, 2021
Threads
0
Messages
3
Reaction score
2
Location
Belgium
Vehicles
Taycan CT 4
Country flag
My CT4 2022 has a similar issue.
After about 10,000km, mainly charged from home at low 7.6 Kw.

Apparently it is a part inside the VW metallic box, probably the AC charger, just below that green lock. That will be replaced.
I was surprised to see so much complexity under the hood.

Porsche Taycan AC/Home Charging Issues ( both ports ) taycan-AC-charger


tigerbalm

Well-Known Member
First Name
Damien
Joined
Oct 11, 2020
Threads
77
Messages
2,773
Reaction score
6,196
Location
Ireland
Vehicles
Taycan Turbo S, Fiat 500 EV
Country flag
The AC charger is the bigger metal box under the other one. Its the one that is sitting just over the coolant system tubes.

The smaller metal box (part: 9J1 963 507) just under the green lock is the HV Heater. I'm not 100% sure what it does but assume it acts as part of the air-conditioning circuit that provides heat to the cabin and maybe the HV battery when required.


Loltheinternet

Well-Known Member
Joined
Feb 22, 2022
Threads
1
Messages
108
Reaction score
90
Location
Austin
Vehicles
Land Rover Range Rover L405, 2020 Taycan Turbo
Country flag
My '20 Turbo is at the dealer for this exact same issue at the moment. They are planning to replace the onboard AC charger (their phrasing). Waiting on the parts at the moment, hoping they are here early next week.

Same symptoms - AC charging didn't work on either side, but DC charging worked fine.


daveo4EV

Well-Known Member
First Name
David
Joined
Jan 28, 2019
Threads
160
Messages
5,793
Reaction score
8,599
Location
Santa Cruz
Vehicles
Cayenne Hybrid, 911(s) GT3/Convertable
Country flag
My CT4 2022 has a similar issue.
After about 10,000km, mainly charged from home at low 7.6 Kw.

Apparently it is a part inside the VW metallic box, probably the AC charger, just below that green lock. That will be replaced.
I was surprised to see so much complexity under the hood.

I'm more curious what the green padlock is for?



whitex

Well-Known Member
Joined
Jul 30, 2021
Threads
58
Messages
4,851
Reaction score
3,993
Location
WA, USA
Vehicles
2023 Taycan TCT, 2024 Q8 eTron P+
Country flag
I'm more curious what the green padlock is for?
If I was to guess I would say a safety lock to ensure the HV battery is disconnected when someone is working on any HV systems in the car (like the AC charger)- ensures that nobody accidentally turns it back on, only the guy working on the car should have the key.

Last edited:

whitex

Well-Known Member
Joined
Jul 30, 2021
Threads
58
Messages
4,851
Reaction score
3,993
Location
WA, USA
Vehicles
2023 Taycan TCT, 2024 Q8 eTron P+
Country flag
My CT4 2022 has a similar issue.
After about 10,000km, mainly charged from home at low 7.6 Kw.

Apparently it is a part inside the VW metallic box, probably the AC charger, just below that green lock. That will be replaced.
I was surprised to see so much complexity under the hood.

I think the AC charger is the box further down near the floor.

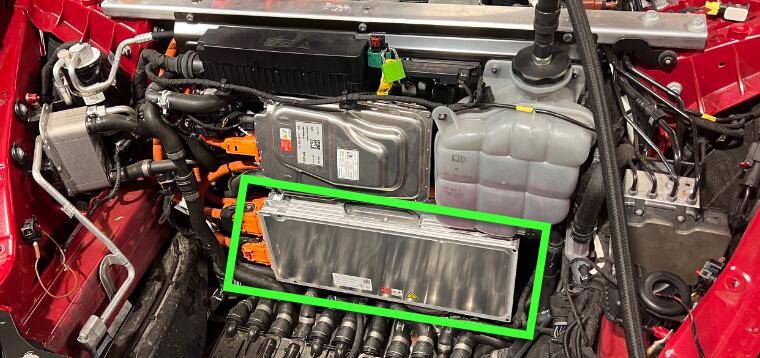

Porsche Taycan AC/Home Charging Issues ( both ports ) 1663370250224


tigerbalm

Well-Known Member
First Name
Damien
Joined
Oct 11, 2020
Threads
77
Messages
2,773
Reaction score
6,196
Location
Ireland
Vehicles
Taycan Turbo S, Fiat 500 EV
Country flag
I'm more curious what the green padlock is for?
It prevents the HV battery contractors from engaging. The padlock is around the HV battery disconnect that Fire Departments are trained to pull if they are putting out a Taycan fire.

There is one in the rear trunk area too.

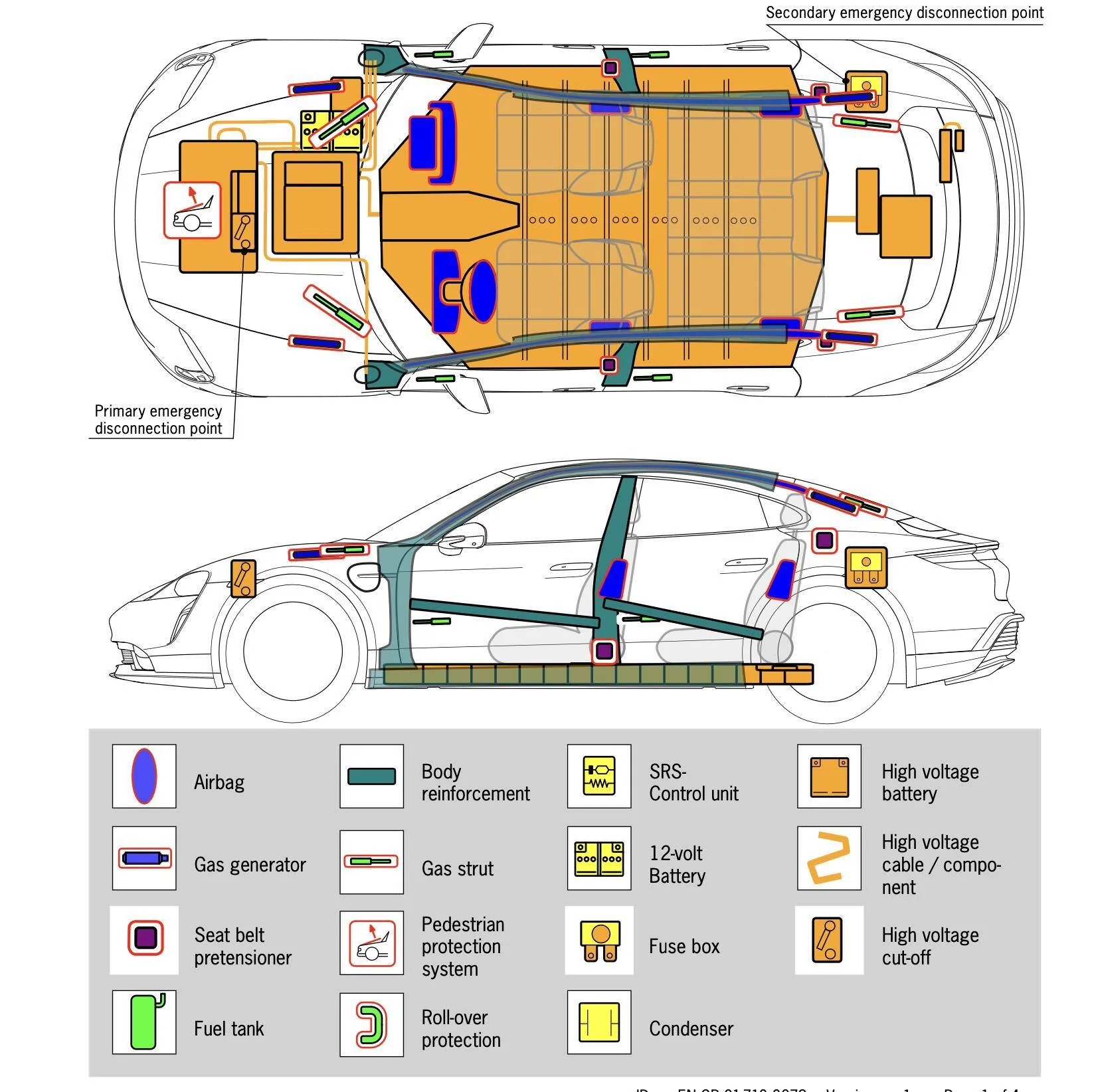

Porsche Taycan AC/Home Charging Issues ( both ports ) 1663370558575



Fish Fingers

Well-Known Member
First Name
Ian
Joined
Feb 20, 2021
Threads
49
Messages
1,847
Reaction score
2,370
Location
Cheshire
Vehicles
Taycan RWD
Country flag

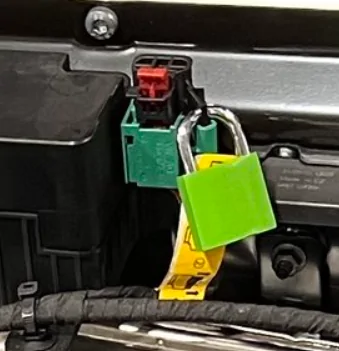

So what does it look like when the padlock is not there (unlocked)?

I would be interested to know what is actually done to disconnect the HV battery?

Also keen to know what any other bits of that 'engine' are, just out of curiosity....?
I now know the AC charger and HV heater. I wonder what everything else is / does?


whitex

Well-Known Member
Joined
Jul 30, 2021
Threads
58
Messages
4,851
Reaction score
3,993
Location
WA, USA
Vehicles
2023 Taycan TCT, 2024 Q8 eTron P+
Country flag
So what does it look like when the padlock is not there (unlocked)?

I would be interested to know what is actually done to disconnect the HV battery?

Also keen to know what any other bits of that 'engine' are, just out of curiosity....?
I now know the AC charger and HV heater. I wonder what everything else is / does?
Looks like the black plug with a red locking mechanism just pulls up to disconnect the HV battery. In that picture above, there appears to be a yellow tag with instructions under the lock. Given this is for emergency responders, it should not require disassembling the car to get to it. Pop the hood, look around that area and you will probably find it (sorry, no Taycan of my own yet, but getting closer to it 🤞).
Porsche Taycan AC/Home Charging Issues ( both ports ) 1663413035994


tigerbalm

Well-Known Member
First Name
Damien
Joined
Oct 11, 2020
Threads
77
Messages
2,773
Reaction score
6,196
Location
Ireland
Vehicles
Taycan Turbo S, Fiat 500 EV
Country flag

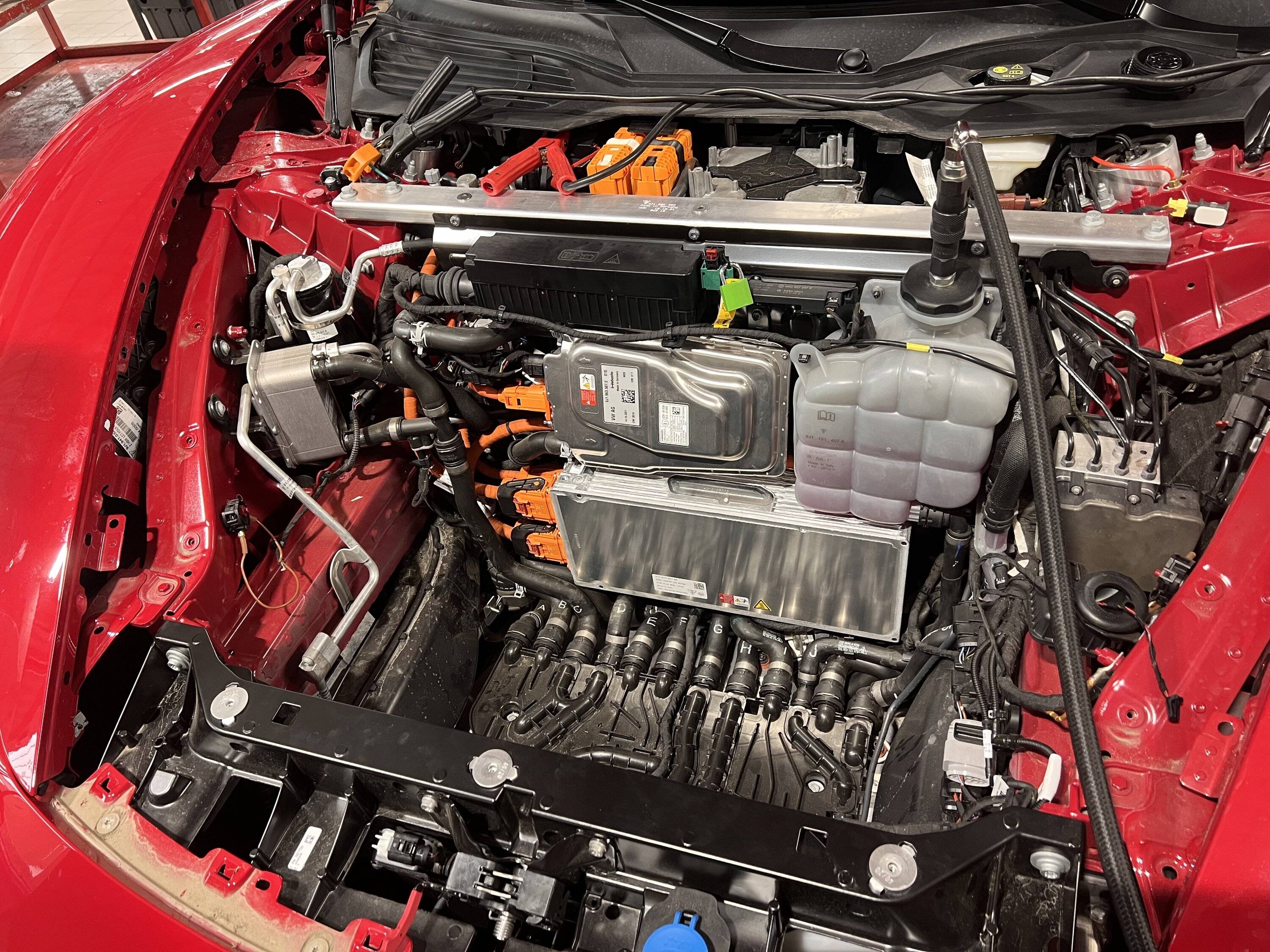

Porsche Taycan AC/Home Charging Issues ( both ports ) taycan-AC-charger


It's interesting to me to see the manufacturing optimisations that have been made as the model matures. For example, taking a look at the part where all the cooling hoses meet above ^.

In earlier years that looked a lot more messy:

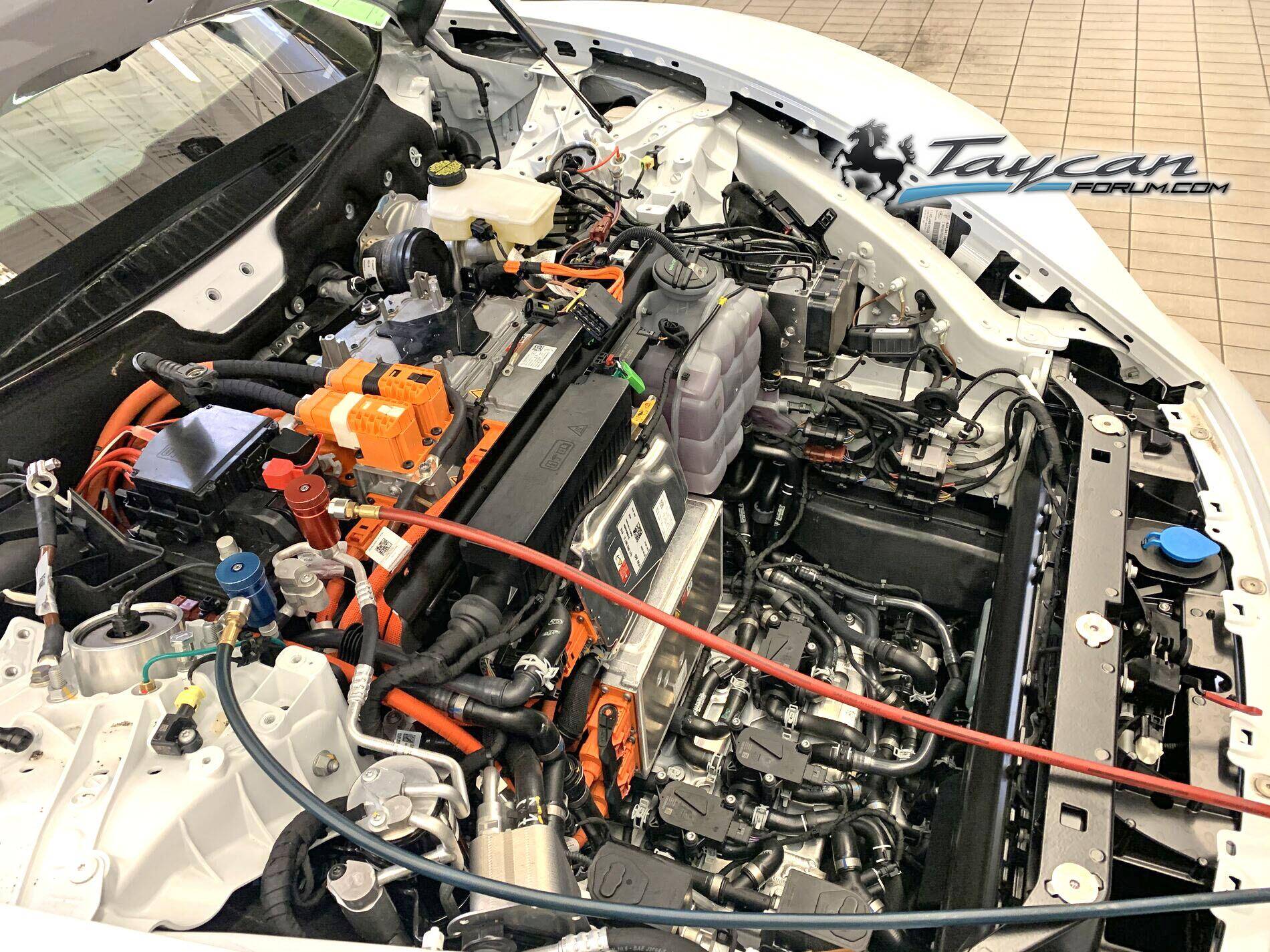

Porsche Taycan AC/Home Charging Issues ( both ports ) 1672789356969


You can see the exact same coloured green lock in use as well – must be supplied equipment.
