It would be nice if Porsche would enlighten us curious EV enthusiasts.
Sponsored



Tooney

Well-Known Member
Joined
Aug 14, 2021
Threads
502
Messages
3,343
Reaction score
2,681
Location
Ohio
Vehicles
2022 Taycan 4S
Country flag

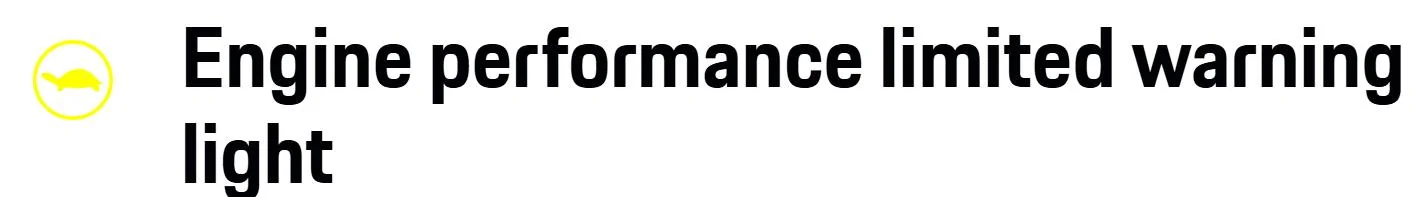

Like the link, but no turtle shown unless I'm blind...

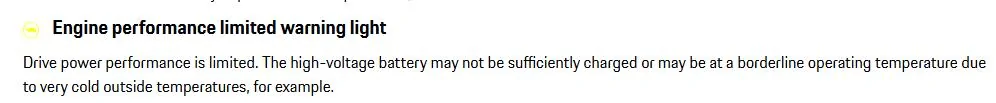

The yellow symbols on Good to Know are unreadable/almost undetectable against the white background. I zoomed in 500% to be able to tell the symbol was a turtle.

Sad that many warning symbols on Porsche document for warning symbols can't be deciphered.


ab2001

New Member
Joined
Aug 23, 2024
Threads
1
Messages
4
Reaction score
0
Location
west yorkshire
Vehicles
Porsche Taycan 4S
Country flag
this can sometimes problems with coolant system , possible Pump failure or soleniods faulty .



PierreTT

Member
First Name
Pierre
Joined
Oct 12, 2022
Threads
1
Messages
13
Reaction score
14
Location
Canada
Vehicles
Taycan Turbo, 993TT, other stuff
Country flag

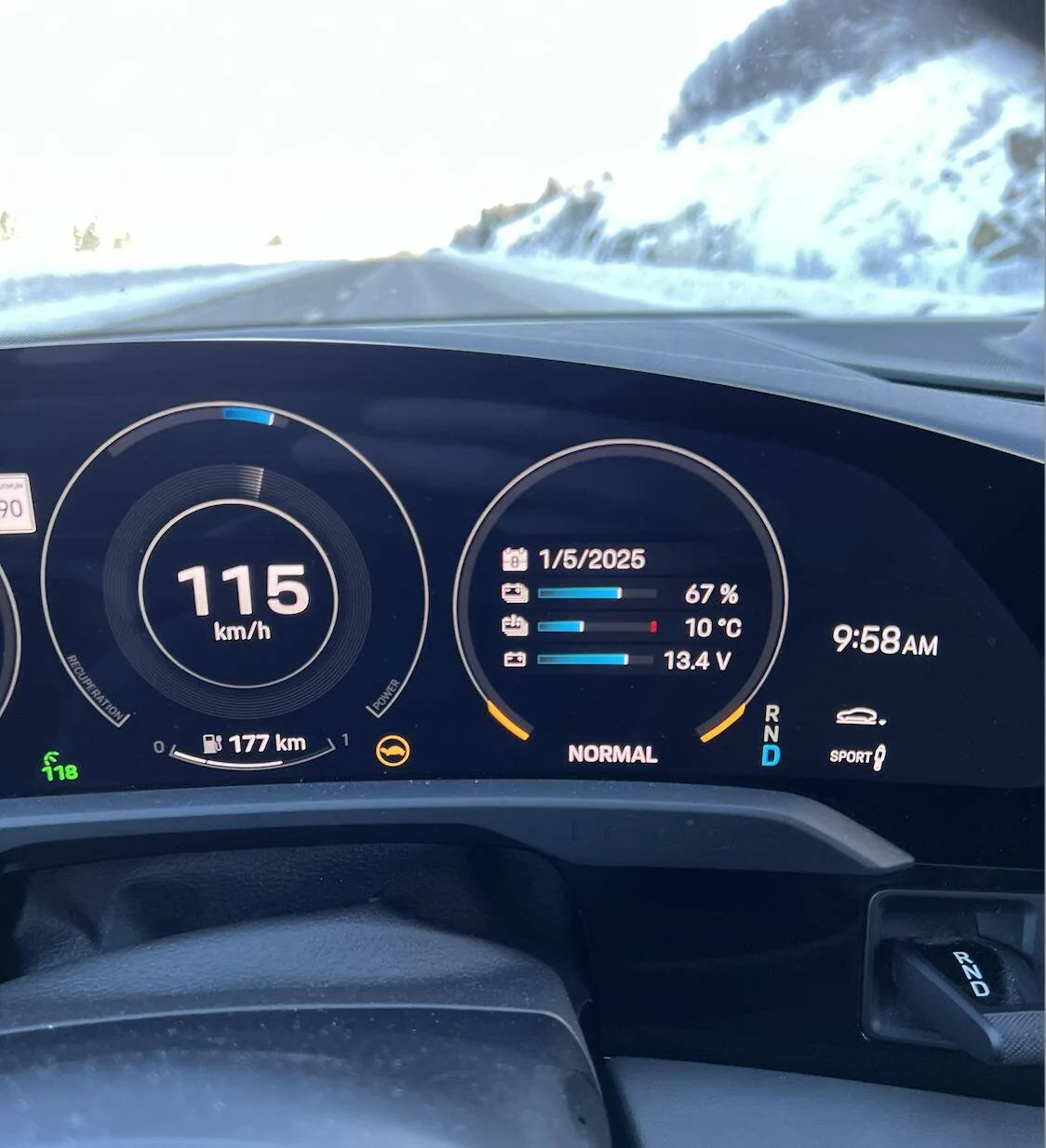

Got the infamous turtle yesterday.

It’s pretty cold outside, but nothing exceptional—I’ve seen much worse.

While traveling through a mountain area, I noticed that every time I hit an uphill section and needed more power, the dreaded "Turtle" icon would appear and cut the power. Once I got to a flat stretch or started heading downhill, it would disappear.

It was a bit nerve-wracking since I was moving much slower than the rest of the traffic at the top of the hills.

I eventually stopped the car, restarted it, and the Turtle icon was gone. I’m planning to take it to the dealer for a scan and will report back with any updates.
Porsche Taycan Turtle/Tortoise Icon Screen Shot 2025-01-06 at 11.49.09 AM


SergeyIndy

Well-Known Member
First Name
Sergey
Joined
Dec 19, 2021
Threads
25
Messages
1,407
Reaction score
968
Location
Indianapolis
Vehicles
24 Macan GTS, 23 Taycan Turbo, 20 Cayenne Turbo
Country flag

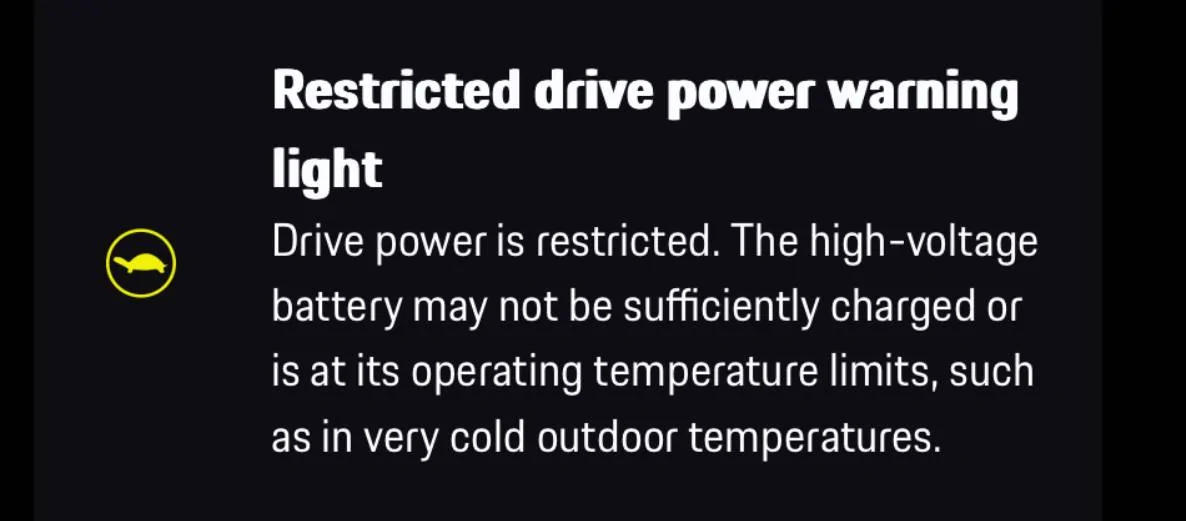

There is in mine (through the app) :

I found it, thank you for pointing this out. The icon as so washed out against the white background, I could not see it before. The explanation is not very clear on what causes the Turtle icon to trigger, as it uses "such as" language.

I got it when the HV battery was close to the high peak of 131F when I was charging without Battery Friendly option On, so the questions is why the dumb *ss BMS system of the car allows this to happen. I am obviously not doing this again and always will have Battery Friendly ON when charging at DC stations.



anonymouse

Well-Known Member
Joined
May 12, 2023
Threads
21
Messages
363
Reaction score
391
Location
Oxfordshire UK
Vehicles
Taycan 4S Sport Turismo
Country flag
I got it when the HV battery was close to the high peak of 131F when I was charging
yes I have had that too. It was only momentary and once the cooling fan had done a bit of work it was back to normal before I had finished charging.


SergeyIndy

Well-Known Member
First Name
Sergey
Joined
Dec 19, 2021
Threads
25
Messages
1,407
Reaction score
968
Location
Indianapolis
Vehicles
24 Macan GTS, 23 Taycan Turbo, 20 Cayenne Turbo
Country flag
yes I have had that too. It was only momentary and once the cooling fan had done a bit of work it was back to normal before I had finished charging.
I thought the fans would fly away, as they were working to the max, not thank you again.


PierreTT

Member
First Name
Pierre
Joined
Oct 12, 2022
Threads
1
Messages
13
Reaction score
14
Location
Canada
Vehicles
Taycan Turbo, 993TT, other stuff
Country flag
So apparently, it was a flap issue. Battery was not able to warm itself up because a flap was stuck open. Temperature was cold (-20C) and the car did this for protection... Codes were cleared and it did not happen again so far. I'll report back if I have something relevant to add.

OP
OP

KLHubb

Well-Known Member
First Name
Kent
Joined
Jan 15, 2024
Threads
3
Messages
293
Reaction score
223
Location
New York
Vehicles
Taycan 4S 2009 911S 2012 Cayenne
Country flag
Around here, with temps near 0 degrees F in mid-winter, getting the turtle is a risk, especially if you demand a lot of power. I find that, if I add power gradually, I can avoid the dreaded yellow turtle.


PierreTT

Member
First Name
Pierre
Joined
Oct 12, 2022
Threads
1
Messages
13
Reaction score
14
Location
Canada
Vehicles
Taycan Turbo, 993TT, other stuff
Country flag
FYI, I ran many, many days below 0 F in the past 3 years without issue.

I think it was just a bug or stuck flap. When I restarted the car, it was ok.

Cars are not what they are used to be... analog vs digital era!!
