It's lowered 15mm and I added 10mm spacers with new extended bolts.
My new Normal is the old Deep +5mm.
The Taycan isn't really that low, lol.

I'm not sure how it looks in the pics but I can tell you, in the flesh, it looks great! :)



Taycan suspension lowering 15mm lowered and 10mm spacers 1 .jpg


Taycan suspension lowering links 15mm.jpg



I made the links myself.

The ball link rod ends are from eBay: https://www.ebay.ie/itm/203057169641

Right are the original ones, left are the new ones.
I made a table with the measurements if you want to (let) do it yourself.


Taycan spacers 10mm.jpg



I added 10mm spacers which are specifically for Porsche (same for the bolts which are 45mm instead of the standard 34mm)

Taycan suspension lowering 15mm lowered and 10mm spacers 2.jpg
Taycan suspension lowering 15mm lowered and 10mm spacers 3 .jpg


It looks better irl. :)

Last edited:

Reg

Well-Known Member
Joined
Nov 17, 2019
Messages
836
Reaction score
810
Location
California
Vehicles
Taycan 4S
Country flag
It looks incredible. I am always impressed by people who have such great skills - I can barely make soup much less links for a car that I will drive at high speeds ;)

congrats!


CJE

Member
First Name
Cliff
Joined
Sep 25, 2020
Messages
14
Reaction score
21
Location
Los Angeles
Vehicles
Porsche 911 Turbo S, Porsche Taycan Turbo S, Ford GT (part owner)
Country flag
It looks incredible. I am always impressed by people who have such great skills - I can barely make soup much less links for a car that I will drive at high speeds ;)

congrats!
I love the attitude the car now projects. You have skills most of us will never achieve. I think the only thing missing is the sport design package in carbon fiber.

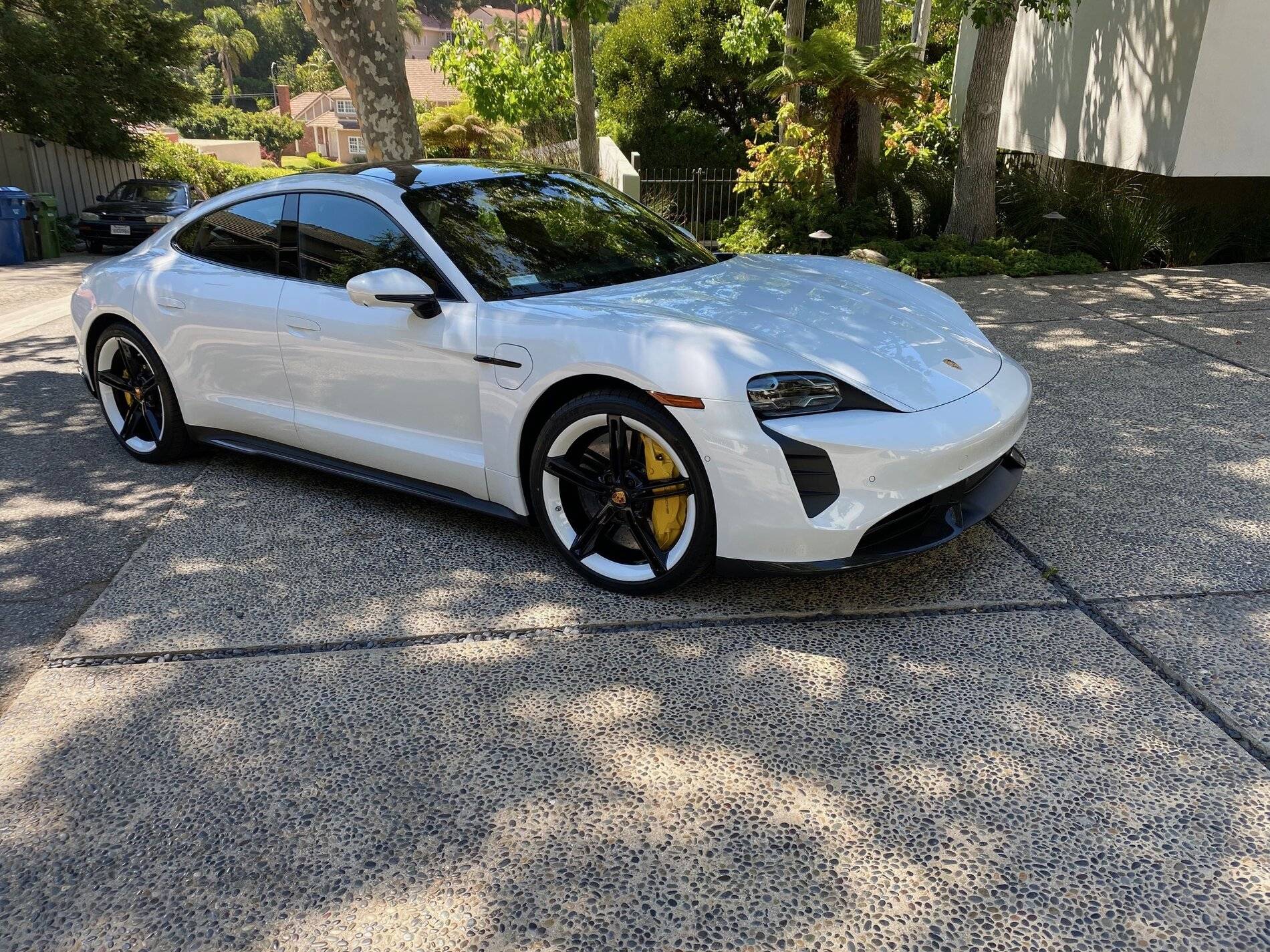

Taycan 2 copy.jpg

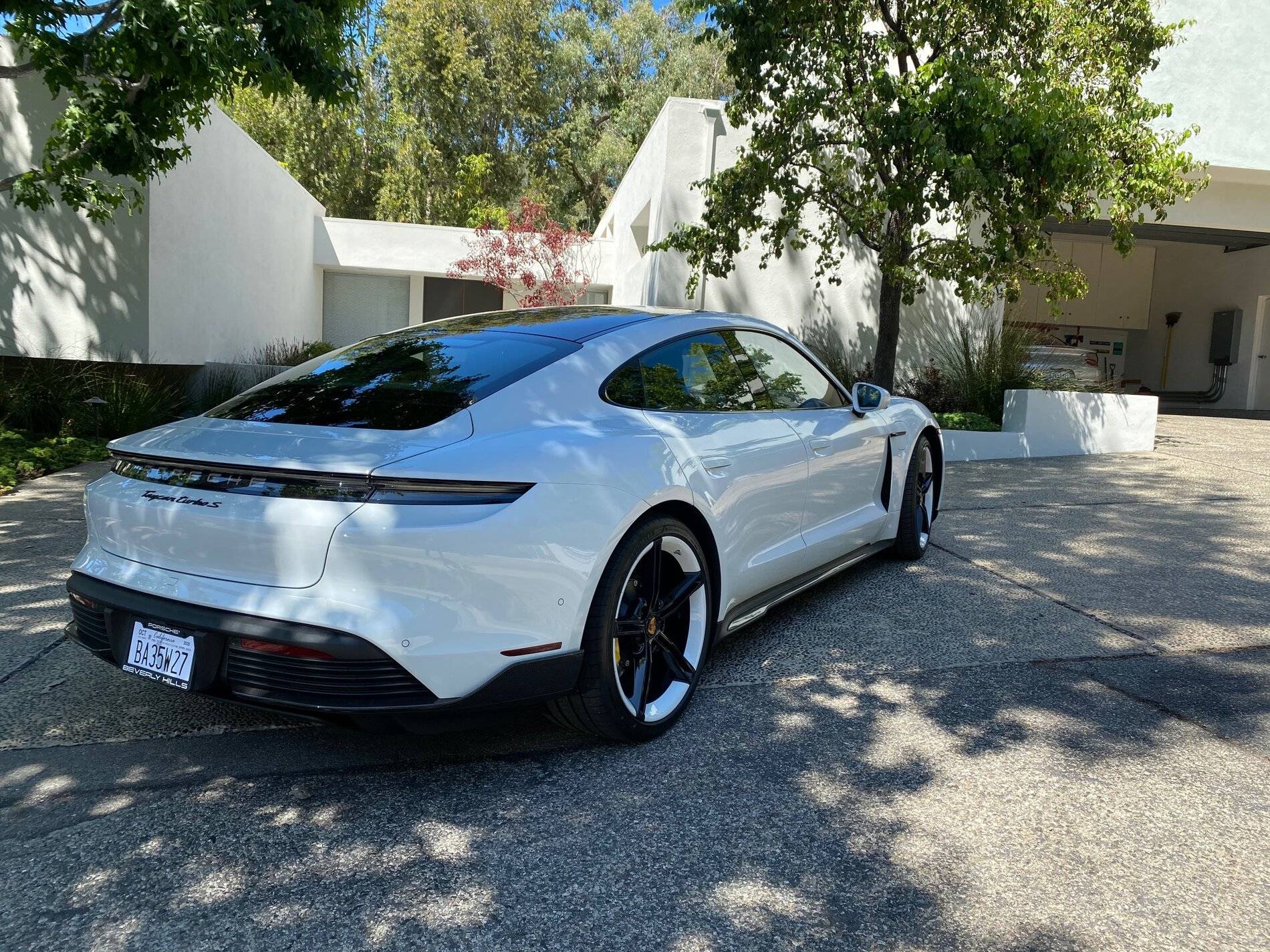

Taycan 3 copy.jpg

OP
Dee

Dee

Well-Known Member
First Name
Dee
Joined
Dec 14, 2018
Messages
1,074
Reaction score
1,026
Location
The Netherlands
Vehicles
Yes.
Country flag
  • Thread starter
  • Thread Starter
  • #4
I love the attitude the car now projects. You have skills most of us will never achieve. I think the only thing missing is the sport design package in carbon fiber.

Taycan 2 copy.jpg

Taycan 3 copy.jpg
I don't like the look of it.


Scandinavian

Well-Known Member
First Name
Peter
Joined
Nov 3, 2019
Messages
594
Reaction score
451
Location
France
Vehicles
Taycan T, Tesla M3P, Aston Martin DB9, Porsche 996 C4 Cab
Country flag
It's lowered 15mm and I added 10mm spacers with new extended bolts.
My new Normal is the old Deep +5mm.
The Taycan isn't really that low, lol.
15 mm lower is quite a lot? How are you managing speed bumps with this. Do you have to raise the car for these then? Or maybe you do not have so bad speed bumps in Netherlands.

I have problems with a lot of them in the south of France. They are quite aggressive bumps and my car has hit them a lot. If any speed above 25 km/h it grounds in Normal setting. Hard suspension or raised suspension is the only way for me?
Any views?

OP
Dee

Dee

Well-Known Member
First Name
Dee
Joined
Dec 14, 2018
Messages
1,074
Reaction score
1,026
Location
The Netherlands
Vehicles
Yes.
Country flag
  • Thread starter
  • Thread Starter
  • #6
15 mm lower is quite a lot? How are you managing speed bumps with this. Do you have to raise the car for these then? Or maybe you do not have so bad speed bumps in Netherlands.

I have problems with a lot of them in the south of France. They are quite aggressive bumps and my car has hit them a lot. If any speed above 25 km/h it grounds in Normal setting. Hard suspension or raised suspension is the only way for me?
Any views?
I first drove around in the lowest setting (deep) for a few months to see how low it actually was.
I managed to get over most speedbumps, no problem whatsoever.
My RX8 is even lower.
This made me come to my conclusion: the Taycan isn't that low in the lowest setting.
Now my new Normal is my old Deep +5mm.
So whenever I come to a really big speedbump I'll put it in Normal.

Today I drove around and still it's possible to get over them.
So yes, our roads are great but there are some nasty ones also.
Speed is everything in this matter (maybe that's why they're called speedbumps, I don't know...) and shocks of course.
I'm driving in Sport Plus all the time, still very comfortable, and I'm able to still get over them in the lowest setting.
For other cases, I still have Normal (+20mm) and Lift (+40mm).
:)


Nickj

Well-Known Member
First Name
Nick
Joined
Jun 29, 2020
Messages
107
Reaction score
34
Location
UK
Vehicles
C63 amg
Country flag
Wow, very cool, and top work on making them yourself! Are the links easy to access to get off?

  • Like
Reactions: Dee
OP
Dee

Dee

Well-Known Member
First Name
Dee
Joined
Dec 14, 2018
Messages
1,074
Reaction score
1,026
Location
The Netherlands
Vehicles
Yes.
Country flag
  • Thread starter
  • Thread Starter
  • #8
Wow, very cool, and top work on making them yourself! Are the links easy to access to get off?
If it's on a lift, you can take the fronts off without taking the wheels off, no problem.

The rears need the rear wheels taken off for convenience but it can be done without.
Just cuz I was adding spacers the wheels were off already.


Nickj

Well-Known Member
First Name
Nick
Joined
Jun 29, 2020
Messages
107
Reaction score
34
Location
UK
Vehicles
C63 amg
Country flag
Thanks. When you say new normal is deep plus 5mm do you mean the new standard ride height is now 5mm higher than the lowest setting before?

Is the first pic the new normal and therefore you can lower more if you select the lowest setting? ( not that I’m suggesting you want to as sits perfect)

OP
Dee

Dee

Well-Known Member
First Name
Dee
Joined
Dec 14, 2018
Messages
1,074
Reaction score
1,026
Location
The Netherlands
Vehicles
Yes.
Country flag
  • Thread starter
  • Thread Starter
  • #10
Thanks. When you say new normal is deep plus 5mm do you mean the new standard ride height is now 5mm higher than the lowest setting before?
Correct.

Is the first pic the new normal and therefore you can lower more if you select the lowest setting? ( not that I’m suggesting you want to as sits perfect)
No, this is the lowest. :)

OP
Dee

Dee

Well-Known Member
First Name
Dee
Joined
Dec 14, 2018
Messages
1,074
Reaction score
1,026
Location
The Netherlands
Vehicles
Yes.
Country flag
  • Thread starter
  • Thread Starter
  • #11
PS Did you guys notice that the ride height you select in Normal will be the same as in Sport?
Only Sport Plus has it's own: deep.
So annoying.
I want:
Normal: normal.
Sport: low.
Sport Plus: deep.

Individual is of course the one you select individually.


Cpoarchy

Well-Known Member
Joined
Nov 19, 2019
Messages
489
Reaction score
270
Location
Kentucky
Vehicles
1999 911, taycan 4s
Country flag
PS Did you guys notice that the ride height you select in Normal will be the same as in Sport?
Only Sport Plus has it's own: deep.
So annoying.
I want:
Normal: normal.
Sport: low.
Sport Plus: deep.

Individual is of course the one you select individually.
I think it looks great, perfect, I hope to lower mine also, great job!

  • Like
Reactions: Dee

KensingtonPark

Well-Known Member
Joined
Jul 1, 2019
Messages
230
Reaction score
142
Location
New York, NY
Vehicles
2020 Porsche Taycan 4S; 2020 Audi A7; 2019 Hyundai Elantra GT; 2020 Hyundai Kona Ultimate
Country flag
PS Did you guys notice that the ride height you select in Normal will be the same as in Sport?
Only Sport Plus has it's own: deep.
So annoying.
I want:
Normal: normal.
Sport: low.
Sport Plus: deep.

Individual is of course the one you select individually.
Is your height on Sport Plus really called "Deep"? On my car, it only is referred to as "Lowest."
