ground clearance

[smoothound]

Hi folks - kind assistance needed please...

Has anyone measured - or can you please point me at diagrams - that give the max-min ground clearance of the chin (lowest point at the front) of a CT? And an idea of the distance of how far that point is in front of the front wheel centre (ie the overhang)?

I have a steep drive and my A7 only just clears it on entry. My A7 has a front spoiler clearance of 145mm (5.75") at 750mm (29.5") in front of centre of wheel. So anything equal or more than that would be fine

I asked this before here - but my thread was used as a discussion between other members comparing wheel and tyre variant diameters - which is too fine a point for me - since the differences are small and are affected by tyre pressure.

I just need a rough idea for now - is a CT front spoiler 'chin' likely to be higher than an A7

Many thanks - much appreciated.

Sponsored



[sfr]

Hi folks - kind assistance needed please...

Has anyone measured - or can you please point me at diagrams - that give the max-min ground clearance of the chin (lowest point at the front) of a CT? And an idea of the distance of how far that point is in front of the front wheel centre (ie the overhang)?

I have a steep drive and my A7 only just clears it on entry. My A7 has a front spoiler clearance of 145mm (5.75") at 750mm (29.5") in front of centre of wheel. So anything equal or more than that would be fine

I asked this before here - but my thread was used as a discussion between other members comparing wheel and tyre variant diameters - which is too fine a point for me - since the differences are small and are affected by tyre pressure.

I just need a rough idea for now - is a CT front spoiler 'chin' likely to be higher than an A7

Many thanks - much appreciated.

You can have a look here :
https://www.taycanforum.com/forum/t...with-and-without-offroad-design-package.4984/



[smoothound]

You can have a look here :
https://www.taycanforum.com/forum/t...with-and-without-offroad-design-package.4984/

Thanks - Yes I saw that thread - but it just discusses comparative ride heights between models - ground clearance of the nose - and distance of that from wheel centre is not really covered.

But thanks anyways - appreciated.



[W1NGE]

Hi folks - kind assistance needed please...

Has anyone measured - or can you please point me at diagrams - that give the max-min ground clearance of the chin (lowest point at the front) of a CT? And an idea of the distance of how far that point is in front of the front wheel centre (ie the overhang)?

I have a steep drive and my A7 only just clears it on entry. My A7 has a front spoiler clearance of 145mm (5.75") at 750mm (29.5") in front of centre of wheel. So anything equal or more than that would be fine

I asked this before here - but my thread was used as a discussion between other members comparing wheel and tyre variant diameters - which is too fine a point for me - since the differences are small and are affected by tyre pressure.

I just need a rough idea for now - is a CT front spoiler 'chin' likely to be higher than an A7

Many thanks - much appreciated.

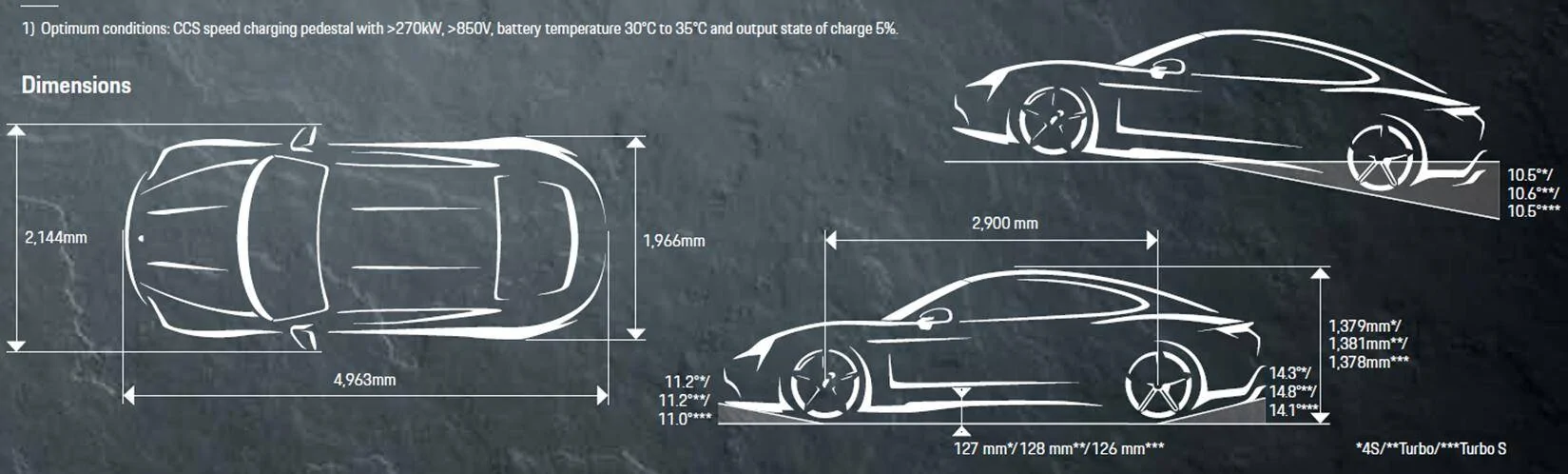

This is what you are after (except for the CT .... just add 20mm (!)) ... the online brochure hasn't been updated for either the CT or ST which would show the relevant diagram.



[smoothound]

This is what you are after (except for the CT .... just add 20mm (!)) ... the online brochure hasn't been updated for either the CT or ST which would show the relevant diagram.

perfect - Thanks A -



[smoothound]

FWIW - I calculated the front overhang clearance angle of my A7 as only being 10.9 degrees.

According to the diagram, The sedan/saloon taycan minimum front clearance angle is 11 degrees.

The CT will be greater still (rough estimate at 12 degrees minimum - it's a guess because I don't know the overhang - but it will be similar or less than an A7).

So my CT turbo should be fine!

This saves me asking for another test drive and a 1 hour round trip just to test if it will clear my driveway

Much appreciated - thanks!
