NEMA 14-50 position in garage for PMCC

wemct

Well-Known Member
Joined
Nov 20, 2019
Messages
394
Reaction score
626
Location
Georgia, USA
Vehicles
Porsche Taycan 4S, Aston Martin DB11 (V12), Maserati Levante S GranSport, Porsche Boxster S
Country flag


Just had mine installed today so here are pictures of the actual plug if helpful. Will be planning on putting the PMCC to the right of that which is why I had them install it slightly off center.
Fyi, the ground pin needs to be at the 6 o’clock position if installing the PMCC next to the outlet. Also if you are using the basic charger mount it cannot be too far away from the outlet otherwise the power cord from the top of the PMCC will not reach after making the U bend.,


wmras

Well-Known Member
First Name
Bill
Joined
Apr 6, 2020
Messages
167
Reaction score
148
Location
Oregon
Vehicles
Taycan TS, GT4 (sold), Macan Turbo, Cayman SBE 987.18
Country flag


Just had mine installed today so here are pictures of the actual plug if helpful. Will be planning on putting the PMCC to the right of that which is why I had them install it slightly off center.

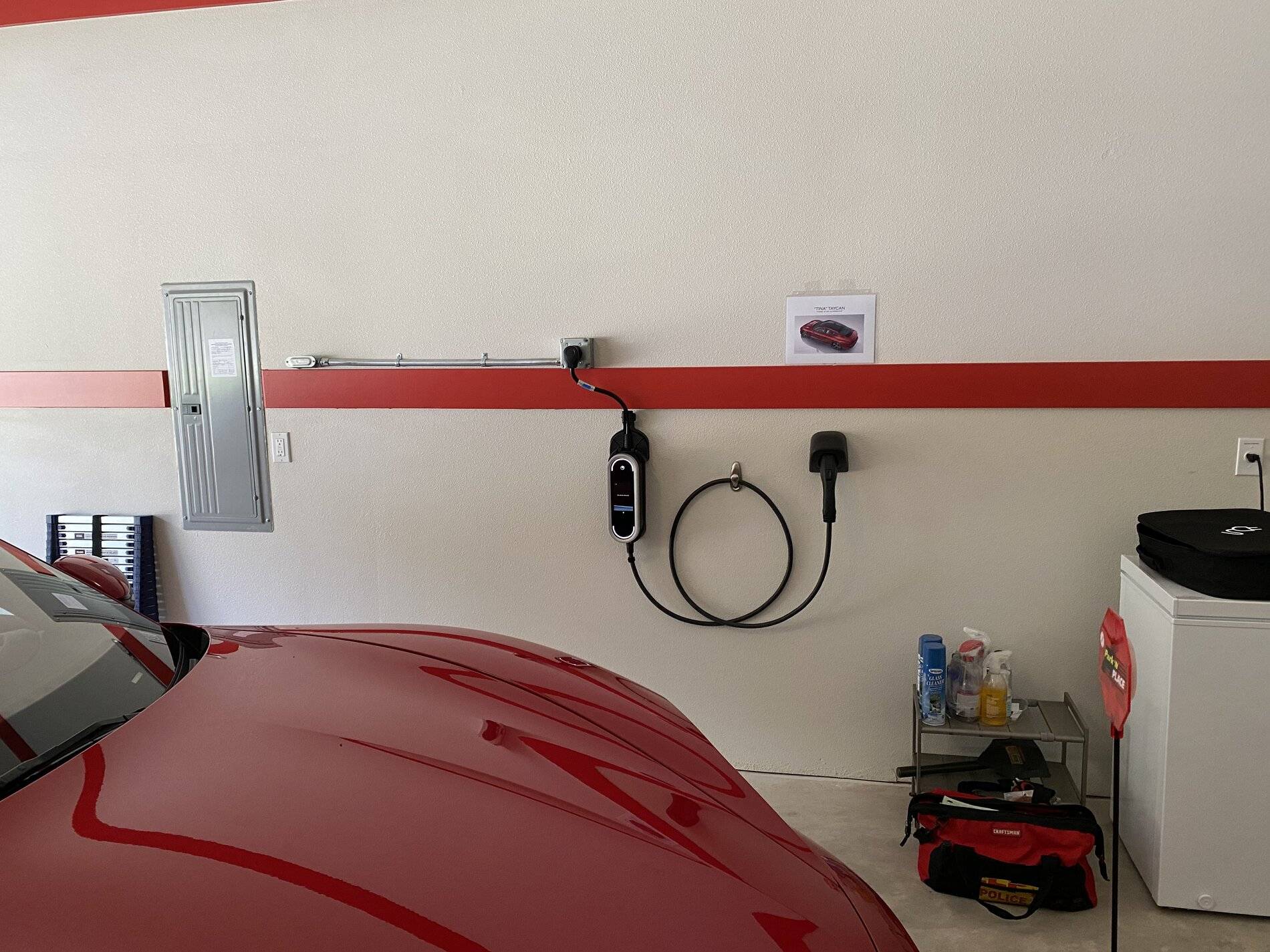

Your plug orientation (ground pin up) is perfect if your PMCC will be slightly right and slightly lower (no Porsche Dock). Your electrician installed it perfectly for normal use.

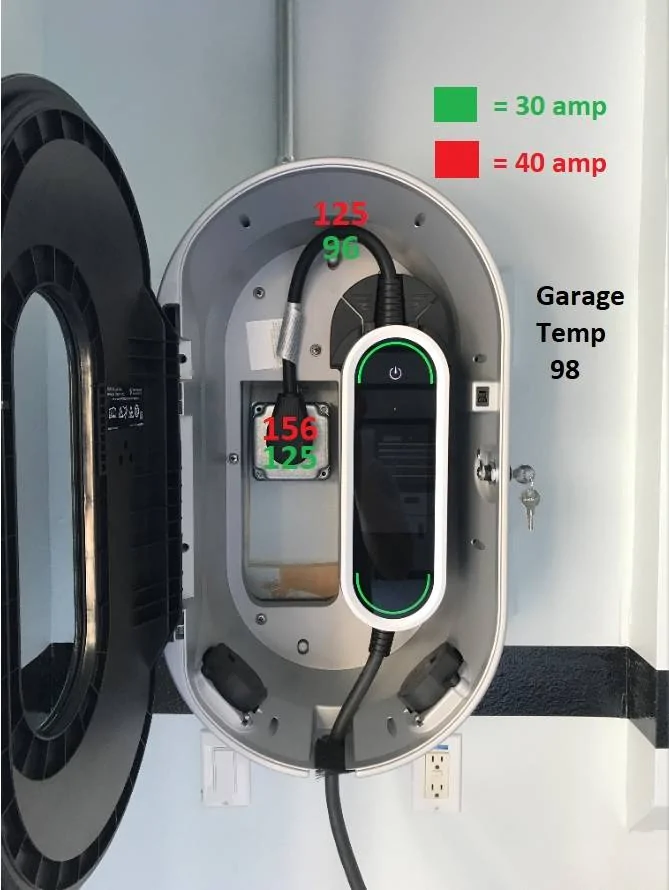

If using the Porsche Dock this orientation would require the longer input cable (~3 ft.). The short (1 ft.) Porsche input cable with the Dock requires the ground pin to be down.



wemct

Well-Known Member
Joined
Nov 20, 2019
Messages
394
Reaction score
626
Location
Georgia, USA
Vehicles
Porsche Taycan 4S, Aston Martin DB11 (V12), Maserati Levante S GranSport, Porsche Boxster S
Country flag

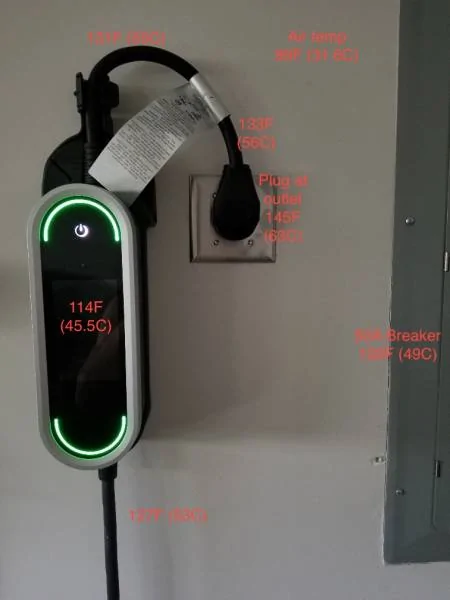

If installed next to the outlet it will look like this.


wmras

Well-Known Member
First Name
Bill
Joined
Apr 6, 2020
Messages
167
Reaction score
148
Location
Oregon
Vehicles
Taycan TS, GT4 (sold), Macan Turbo, Cayman SBE 987.18
Country flag
If installed next to the outlet it will look like this.
Your installation has the ground pin down, the correct orientation for the Porsche Dock (if there was room to the right of the plug for the Dock).


wemct

Well-Known Member
Joined
Nov 20, 2019
Messages
394
Reaction score
626
Location
Georgia, USA
Vehicles
Porsche Taycan 4S, Aston Martin DB11 (V12), Maserati Levante S GranSport, Porsche Boxster S
Country flag
Your installation has the ground pin down, the correct orientation for the Porsche Dock (if there was room to the right of the plug for the Dock).
Correct, but it would still be ground pin down if I had the Porsche dock to the right.


wemct

Well-Known Member
Joined
Nov 20, 2019
Messages
394
Reaction score
626
Location
Georgia, USA
Vehicles
Porsche Taycan 4S, Aston Martin DB11 (V12), Maserati Levante S GranSport, Porsche Boxster S
Country flag
@wmras, I think we are saying the same thing - mounted next then ground pin down. Mounted below ground pin up. ;)


vertebae

Active Member
First Name
Martin
Joined
Aug 26, 2020
Messages
26
Reaction score
23
Location
San Diego, CA
Vehicles
pending
Country flag
@wmras, I think we are saying the same thing - mounted next then ground pin down. Mounted below ground pin up. ;)
Agree, mine will be to the right and below the plug level :D . But all the included pictures are helpful for confirming that and for anyone else who wants to mount it more evenly side-by-side, or even above, in which case they may want the ground plug down at 6 o’clock.


evanevery

Well-Known Member
First Name
Ed
Joined
Sep 10, 2019
Messages
459
Reaction score
392
Location
Wisconsin
Vehicles
2020 Taycan Turbo S, 2019 BMW i8 Roadster, 2016 Tesla Model X, 2016 BMW M4 Race Car
Country flag
I'm picking up my car Saturday. In trying to be proactive I had an electrician come in and install a NEMA 14-50 with a 50A breaker on my panel before taking delivery of the car.

Not very smart of me...the NEMA 14-50 plug in my garage is installed 3 feet off the ground. Only to realize the charger needs the NEMA plug above it since in its proper orientation the cord that connects to the NEMA outlet is above the charger and also pretty damn short.

Any thoughts or suggestions?

Looks like my only option is to have the outlet re-installed higher or not wall mount the PMCC (with the PMCC basic wall mount) and leave it on the floor!

I thought since the supply and car cable can be removed maybe they could be swapped top to bottom but it doesn't look that way.

Not very diligent on my part
No Offense, but this stuff isn't rocket science...

Shut off the breaker, open the box, disconnect the outlet, cut the conduit up higher, trim the wires and re-assemble everything higher on the wall... 20 minutes max...


Schlossj

Well-Known Member
First Name
Jeff
Joined
Aug 2, 2020
Messages
64
Reaction score
28
Location
New York
Vehicles
2020 Taycan 4S
Country flag
Agree, mine will be to the right and below the plug level :D . But all the included pictures are helpful for confirming that and for anyone else who wants to mount it more evenly side-by-side, or even above, in which case they may want the ground plug down at 6 o’clock.
Ok guess I’ll ask one more inane question. Isn’t it more ideal to NOT have the u-turn in the short cord from the outlet to the charger? Meaning more like @wmras? Or does it not matter? Also worth saying I won’t have the dock - I realize the dock requires the u-turn.

Last edited:
OP

nwills

Member
Joined
Aug 30, 2020
Messages
22
Reaction score
3
Location
toronto
Vehicles
2020 Taycan 4S
Country flag
  • Thread starter
  • Thread Starter
  • #41
No Offense, but this stuff isn't rocket science...

Shut off the breaker, open the box, disconnect the outlet, cut the conduit up higher, trim the wires and re-assemble everything higher on the wall... 20 minutes max...
I've gotten a safety inspection and certification after the install for local code compliance and insurance reasons so I wouldn't attempt that. Makes sense if you are in a situation where local codes don't require certification etc.


wmras

Well-Known Member
First Name
Bill
Joined
Apr 6, 2020
Messages
167
Reaction score
148
Location
Oregon
Vehicles
Taycan TS, GT4 (sold), Macan Turbo, Cayman SBE 987.18
Country flag
Ok guess I’ll ask one more inane question. Isn’t it more ideal to NOT have the u-turn in the short cord from the outlet to the charger? Meaning more like @wmras? Or does it not matter? Also worth saying I won’t have the dock - I realize the dock requires the u-turn.
Electricians avoid sharp turns because they concentrate heat, so there is an element of truth to not have a sharp u-turn. In my installation, the charger position down and to the right was chosen so the charger strain relief "has no strain" - the wire is not touching the strain relief (perfectly centered).


Joel

New Member
First Name
Joel
Joined
Feb 4, 2020
Messages
1
Reaction score
0
Location
Northern California
Vehicles
Audi S6, Taycan Turbo
Country flag

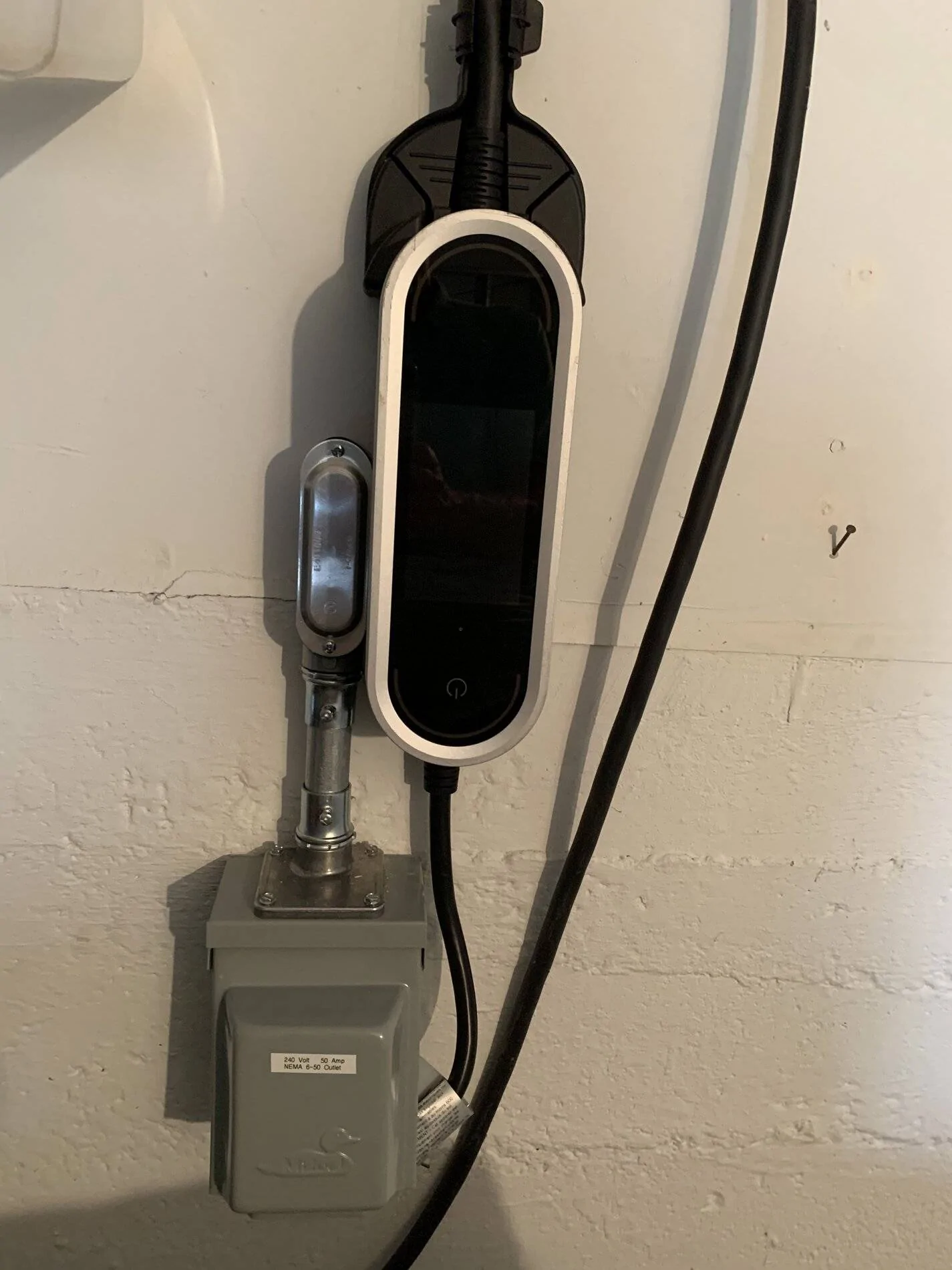

I too had a problem with an outlet that was mounted too low. I discovered I could just turn the PMCC upside down in the mount. As someone else mentioned, you rarely need to be able to read the text on the PMCC screen.


Gogs

Well-Known Member
First Name
Gordon
Joined
Dec 14, 2019
Messages
1,021
Reaction score
670
Location
Aberdeen, Scotland, UK
Vehicles
Taycan 4S, 911 4S, Range Rover Sport Hybrid, Range Rover Vouge
lol. Turn it upside down! Are you guys for real? Surly you want it to look nice in your garage and actually be able to read the display etc!


Jasco999

New Member
First Name
Jason
Joined
Sep 14, 2020
Messages
1
Reaction score
0
Location
Greenwich, Ct. -6830
Vehicles
2021 Taycan Turbo, 2018 Cad. Escalade, 2018 Range Rover, 2018 Yukon Denali XL
Country flag
Nice! I didn't know this existed. If I can't re-install the outlet since it may require to do an entirely new run from the basement panel to the garage I'll go with an extension. Only concern is safety or loss of output if I introduce an extension...I'll have to research this bit thanks.
The extension cord will work- but these heavy cords typically have handles that make their removal easy. So it’s a safety hazard if you have young children that can get anywhere near them.
